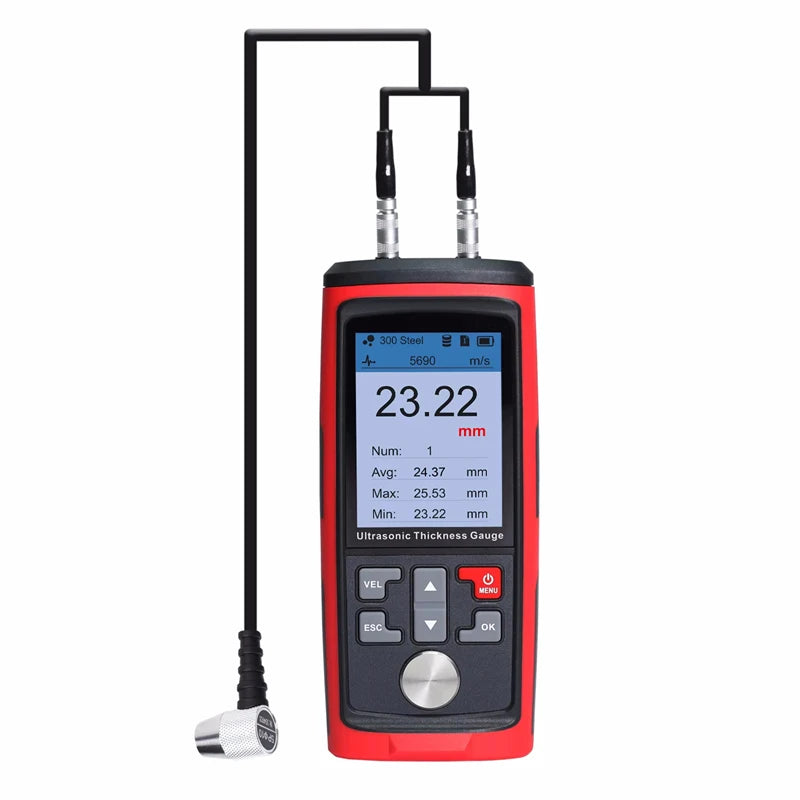

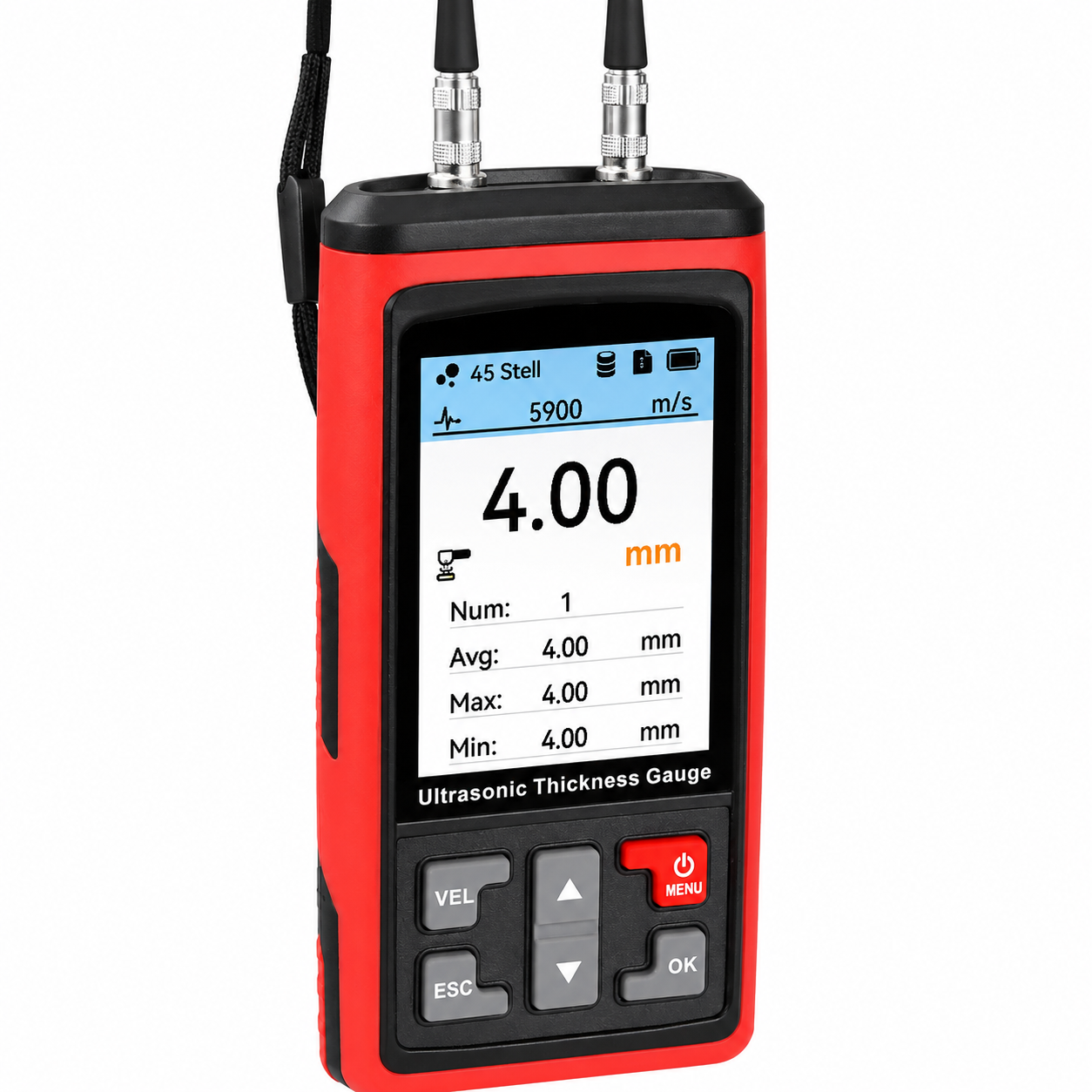

1500 Data Ultrasonic Thickness Gauge – Precision Pipe & Weld Tester

• Professional ultrasonic thickness gauge for NDT inspection

• Measurement range: 1.0–300mm (steel)

• High accuracy: ±(0.5%H + 0.05)mm

• Resolution: 0.01mm / 0.1mm

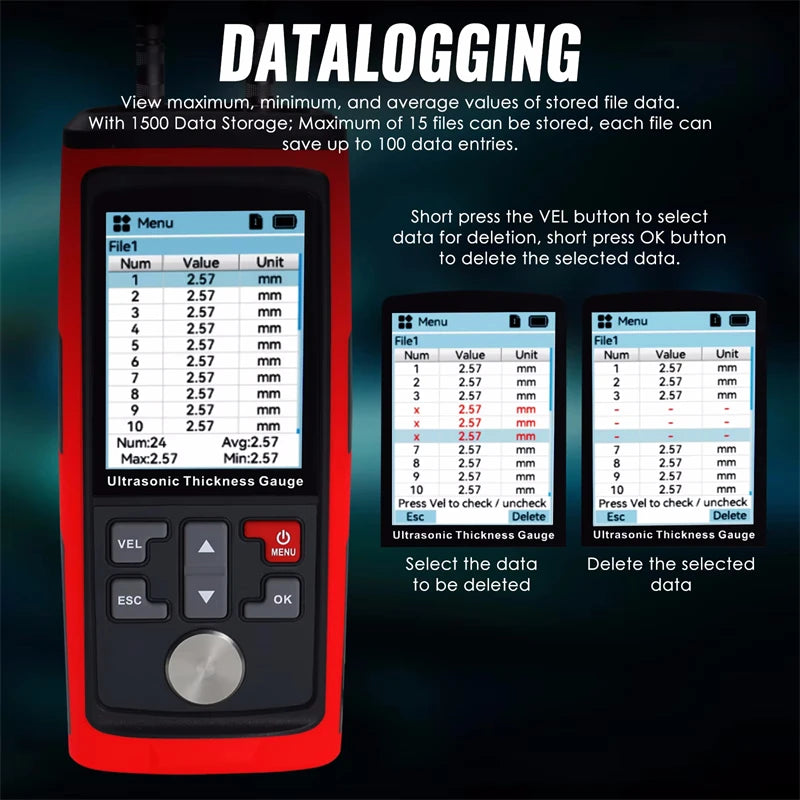

• 1500 data storage capacity

• Stores up to 15 files with 100 readings per file

• PC software support for data download and analysis

• Measures thickness through one side of the material

• Suitable for steel, metals, plastics, ceramics, and glass

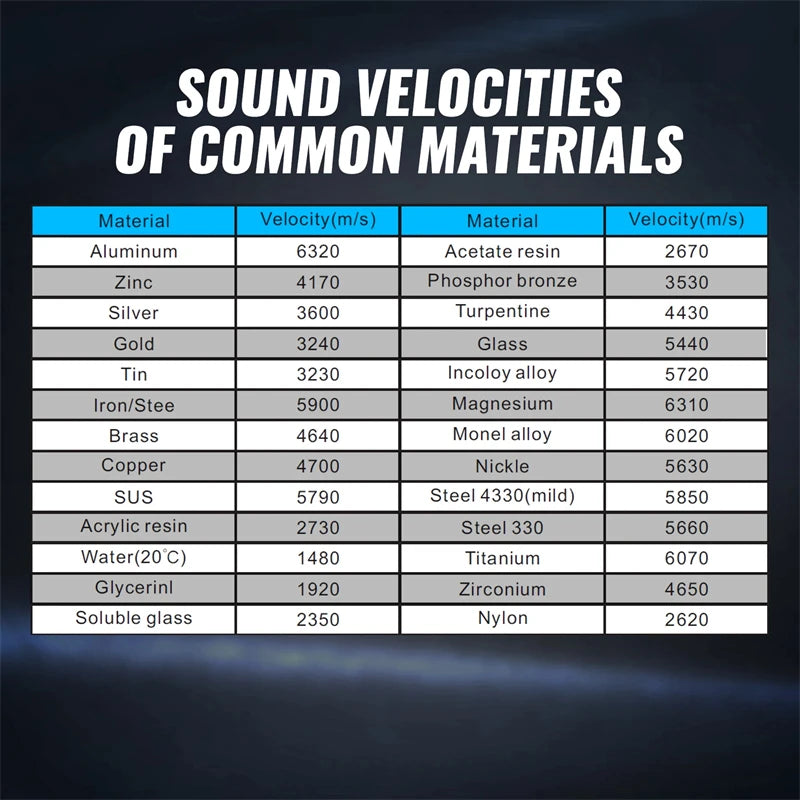

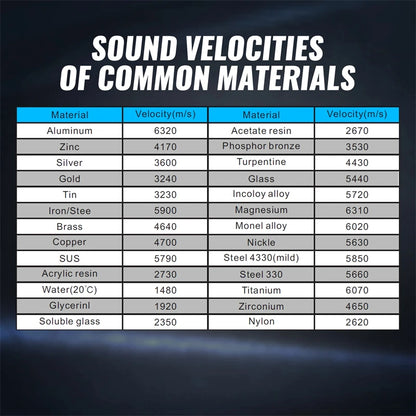

• Adjustable sound velocity: 1000–9999m/s

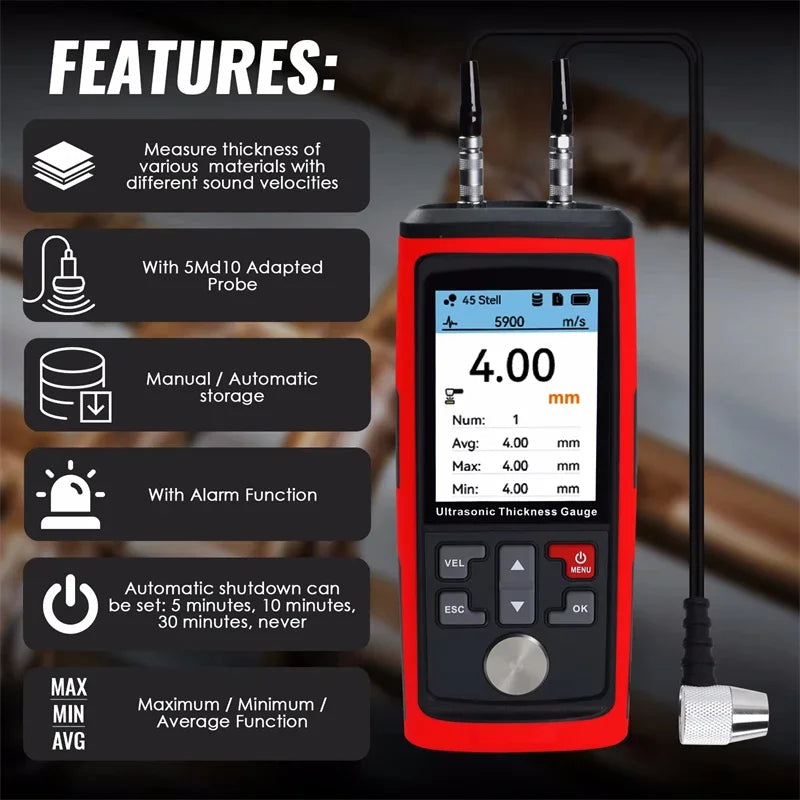

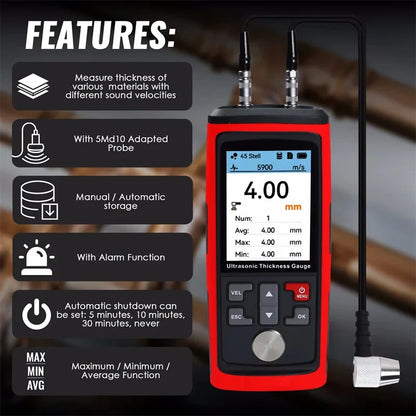

• MAX / MIN / AVG reading display

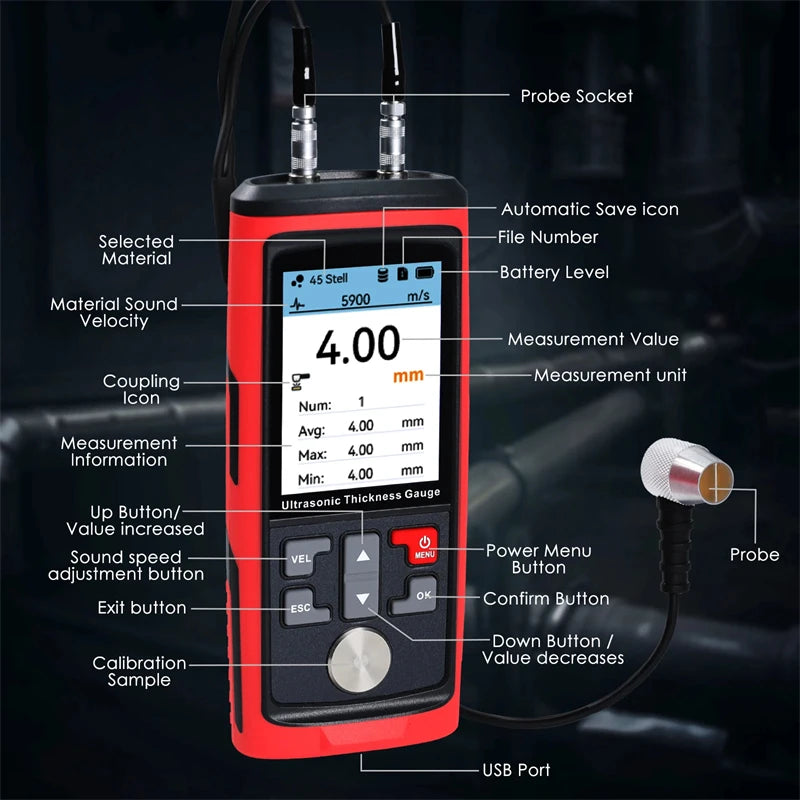

• Colored LCD display with user-friendly interface

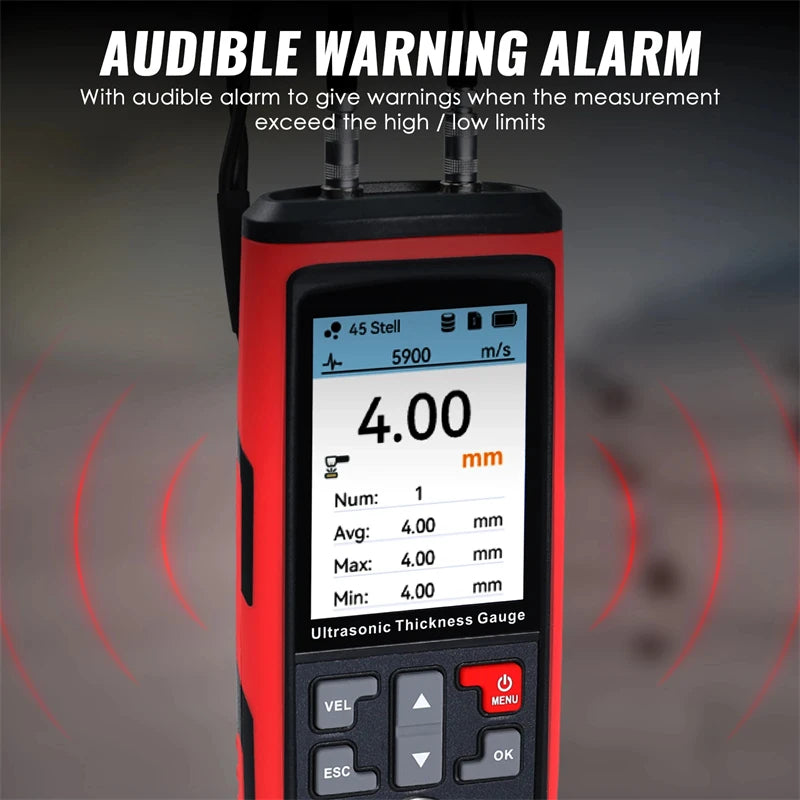

• High and low limit alarm indication

• Automatic and manual data storage modes

• mm and inch measurement selection

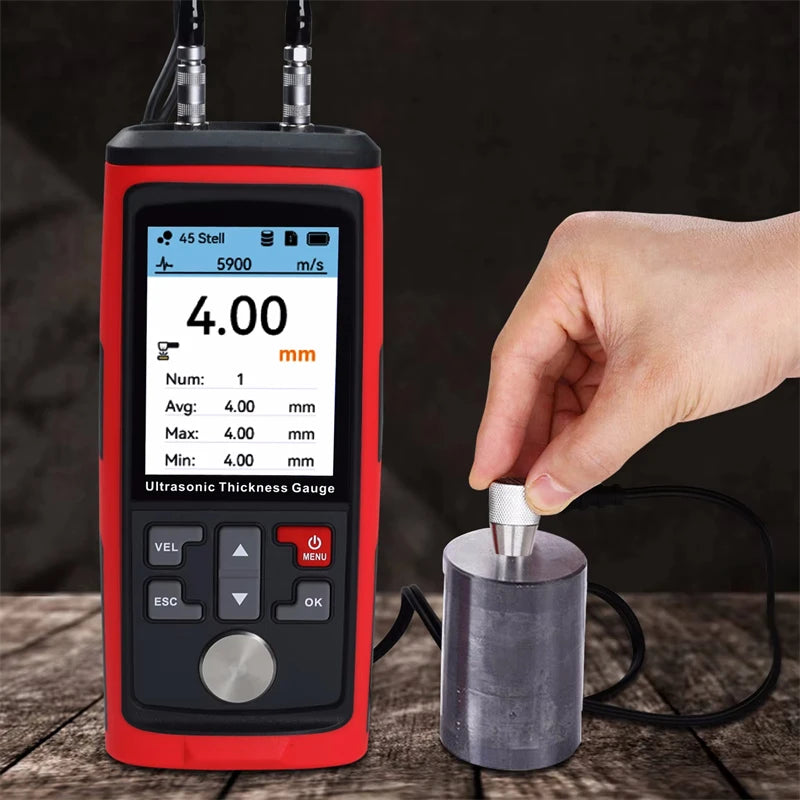

• Built-in calibration block with coupling agent support

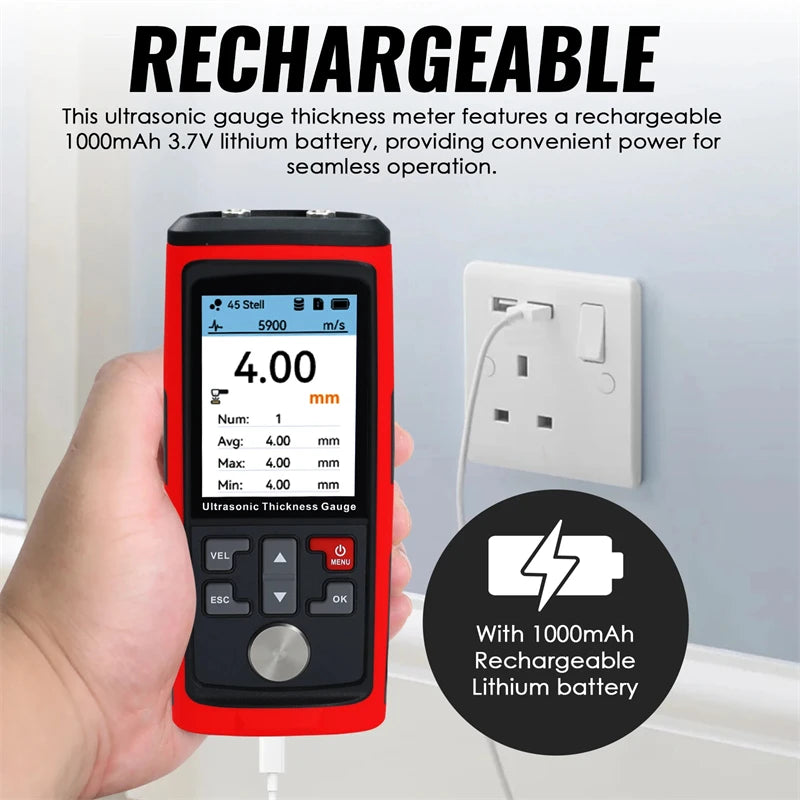

• Rechargeable 1000mAh lithium battery

• USB rechargeable power supply

• Probe frequency: 5MHz / 2.5MHz

• Pipe lower limit: Ø20 × 3mm (steel)

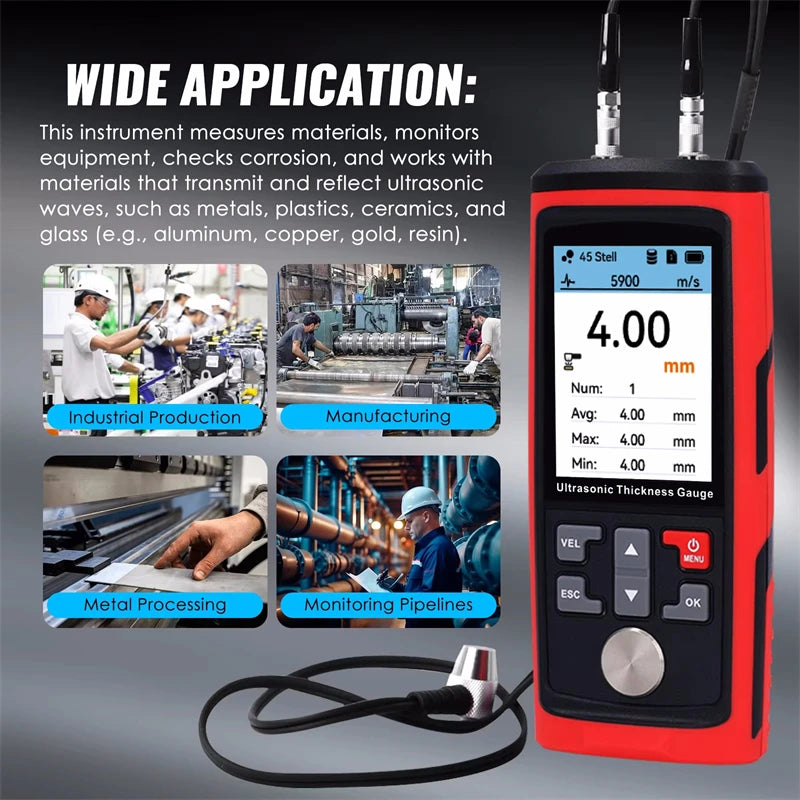

• Ideal for pipe inspection, corrosion monitoring, tank inspection, weld testing, and industrial maintenance

• CE certified industrial inspection instrument

Manufactured with durable industrial-grade electronic components and precision ultrasonic sensor technology for reliable field operation. Keep the probe clean after use and store the device in a dry protective case. Use proper coupling gel during measurements to maintain accuracy and extend probe lifespan.
