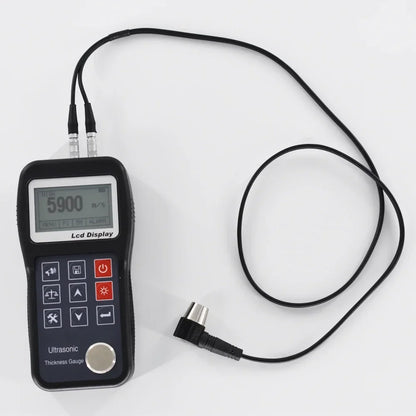

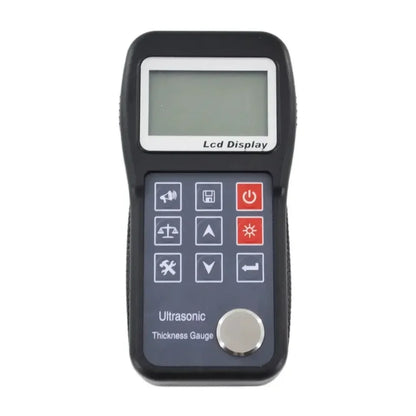

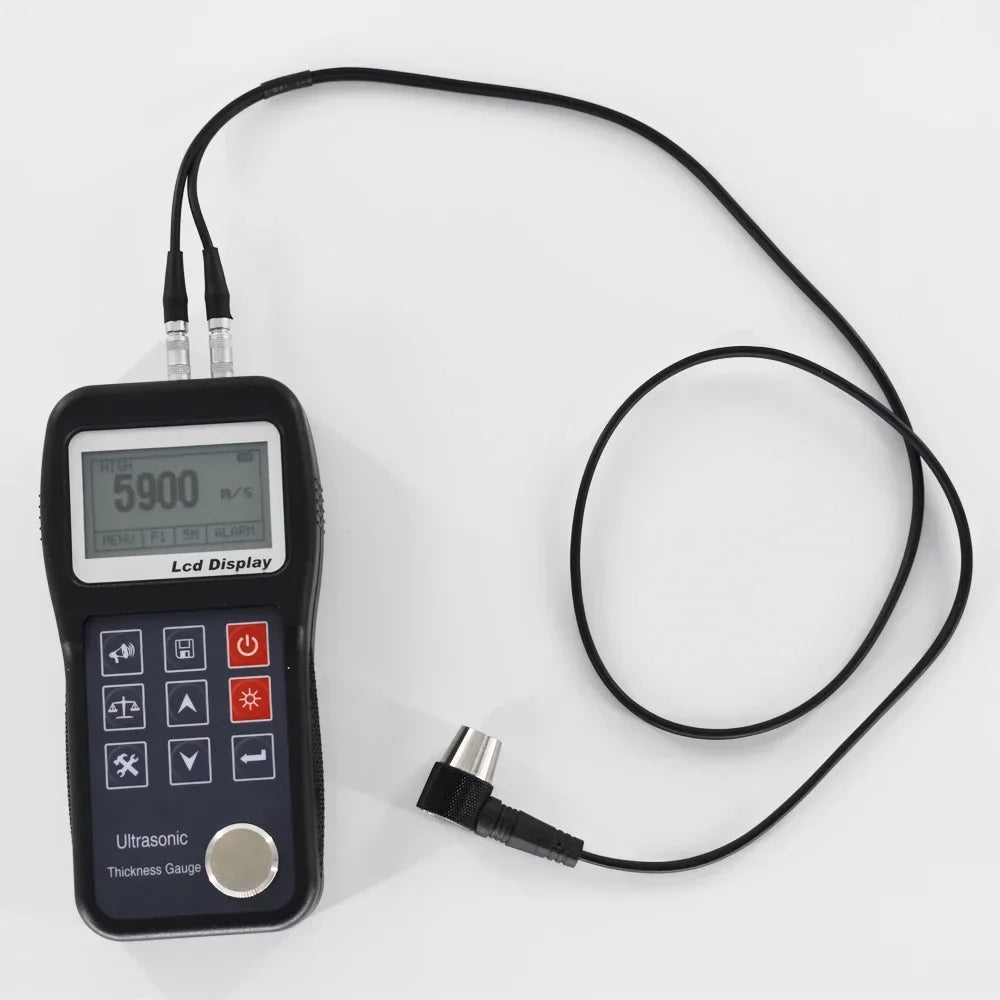

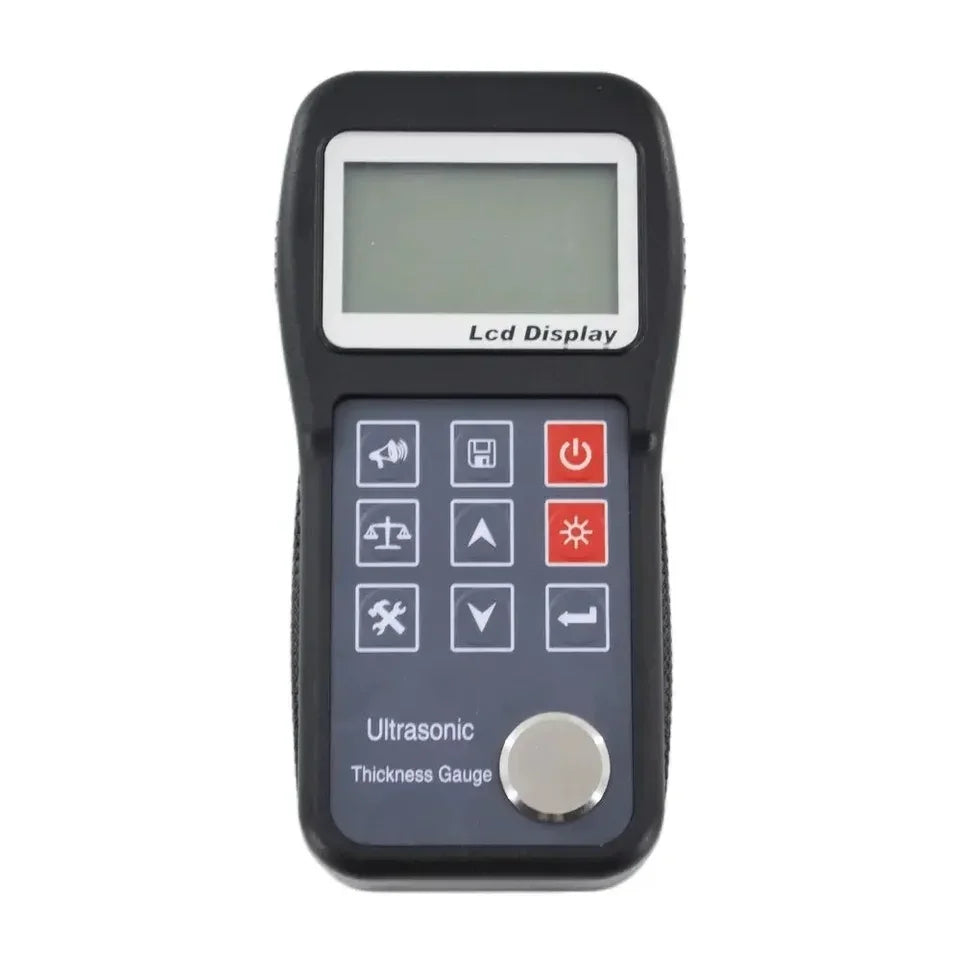

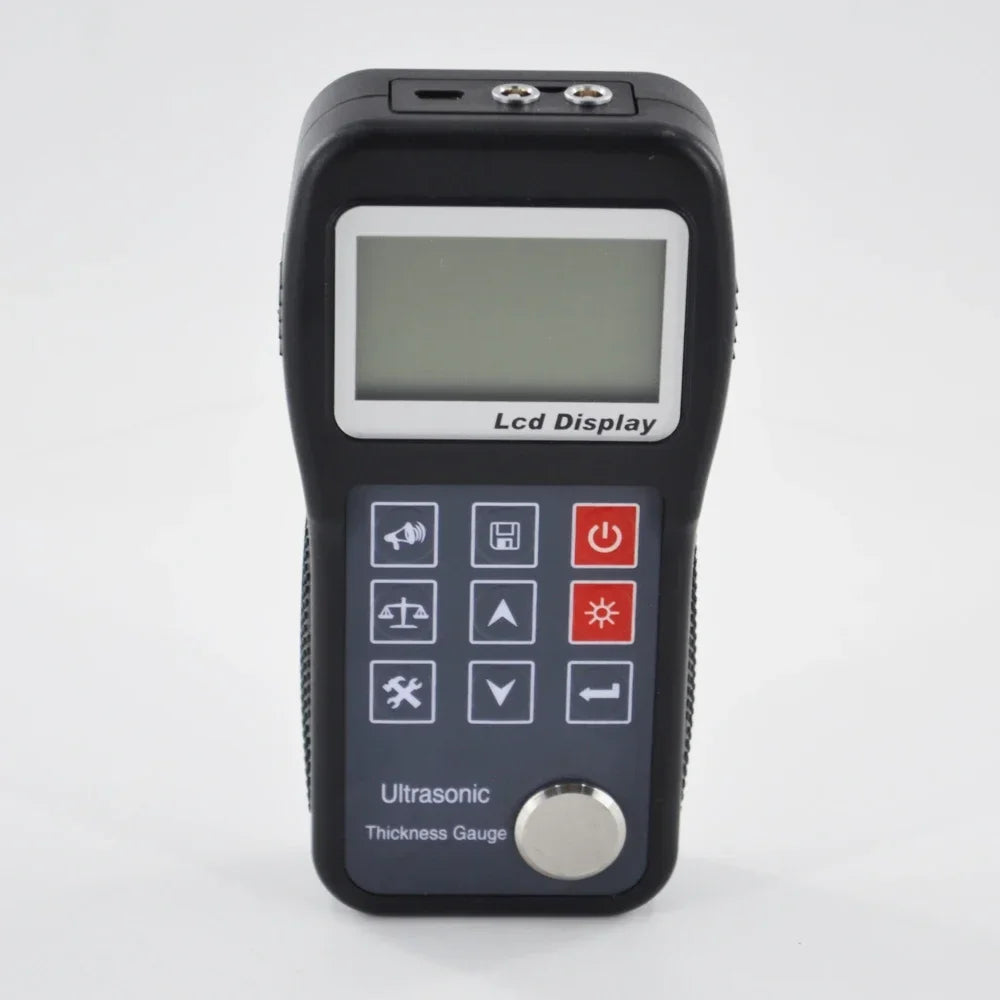

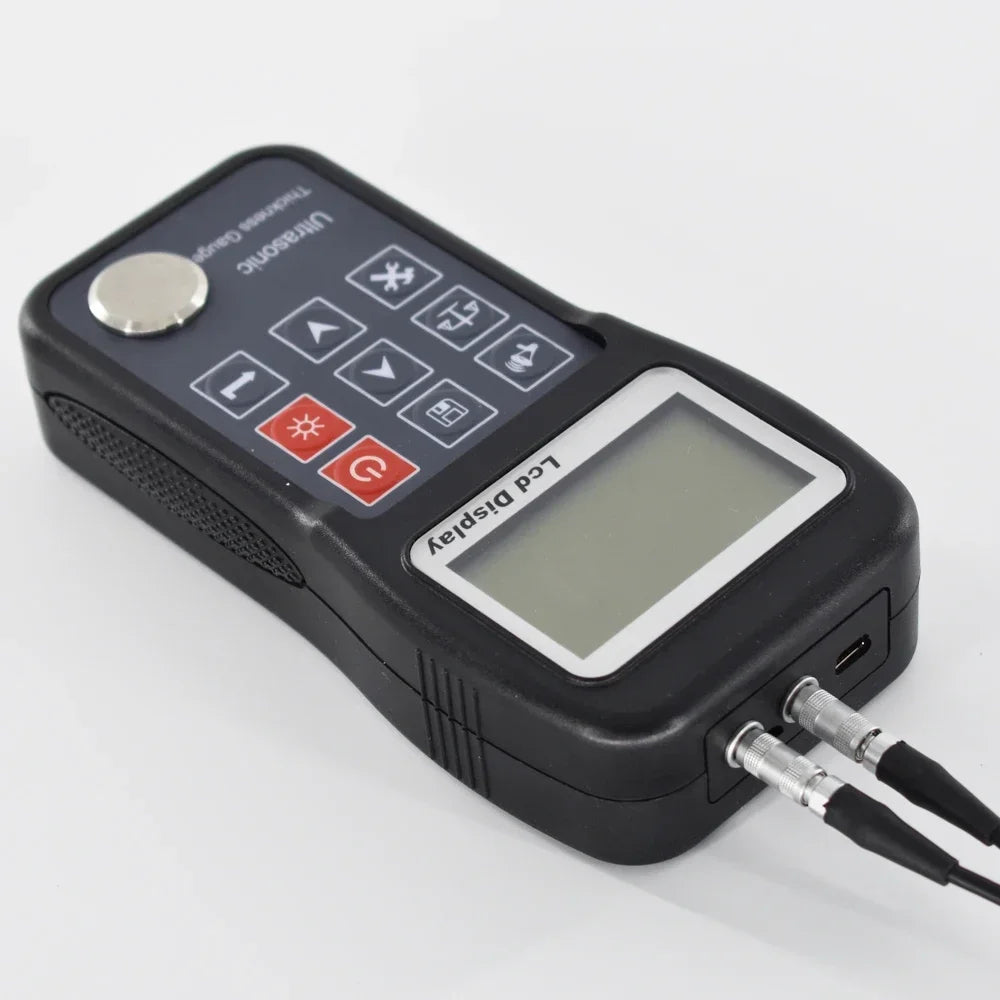

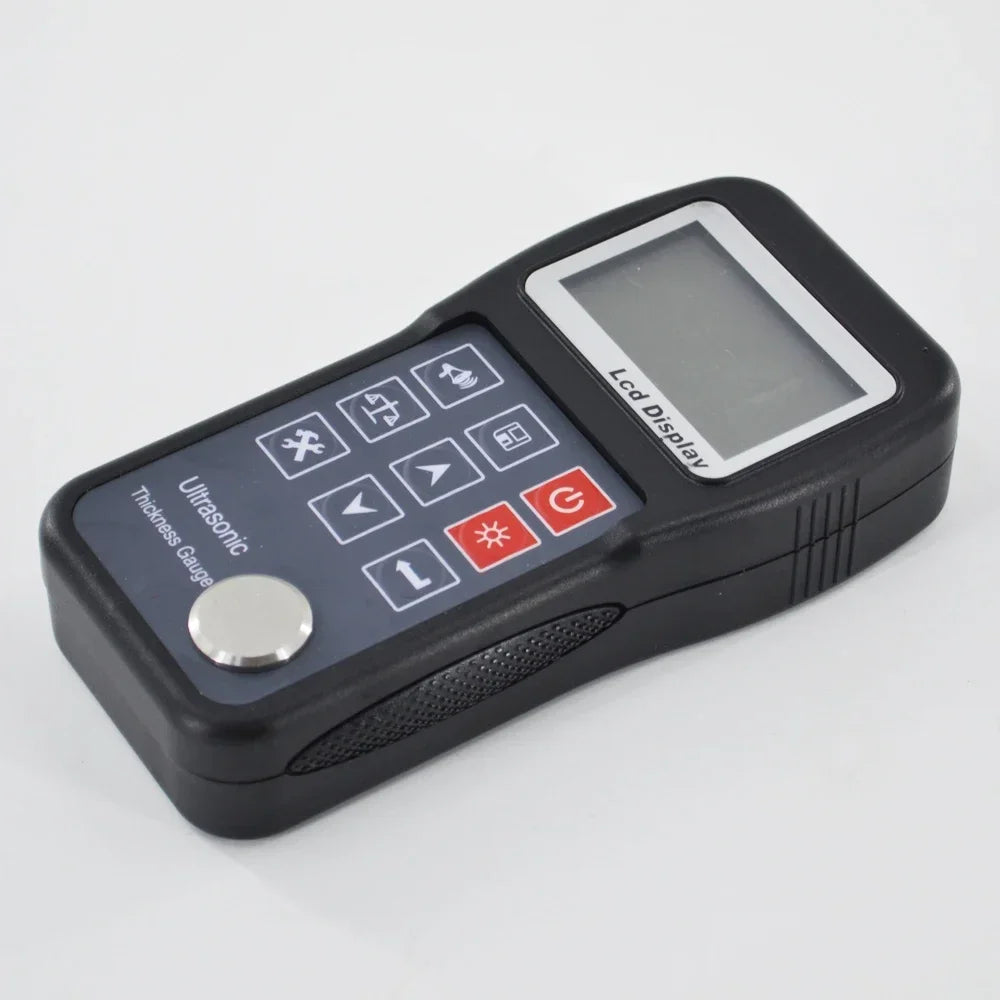

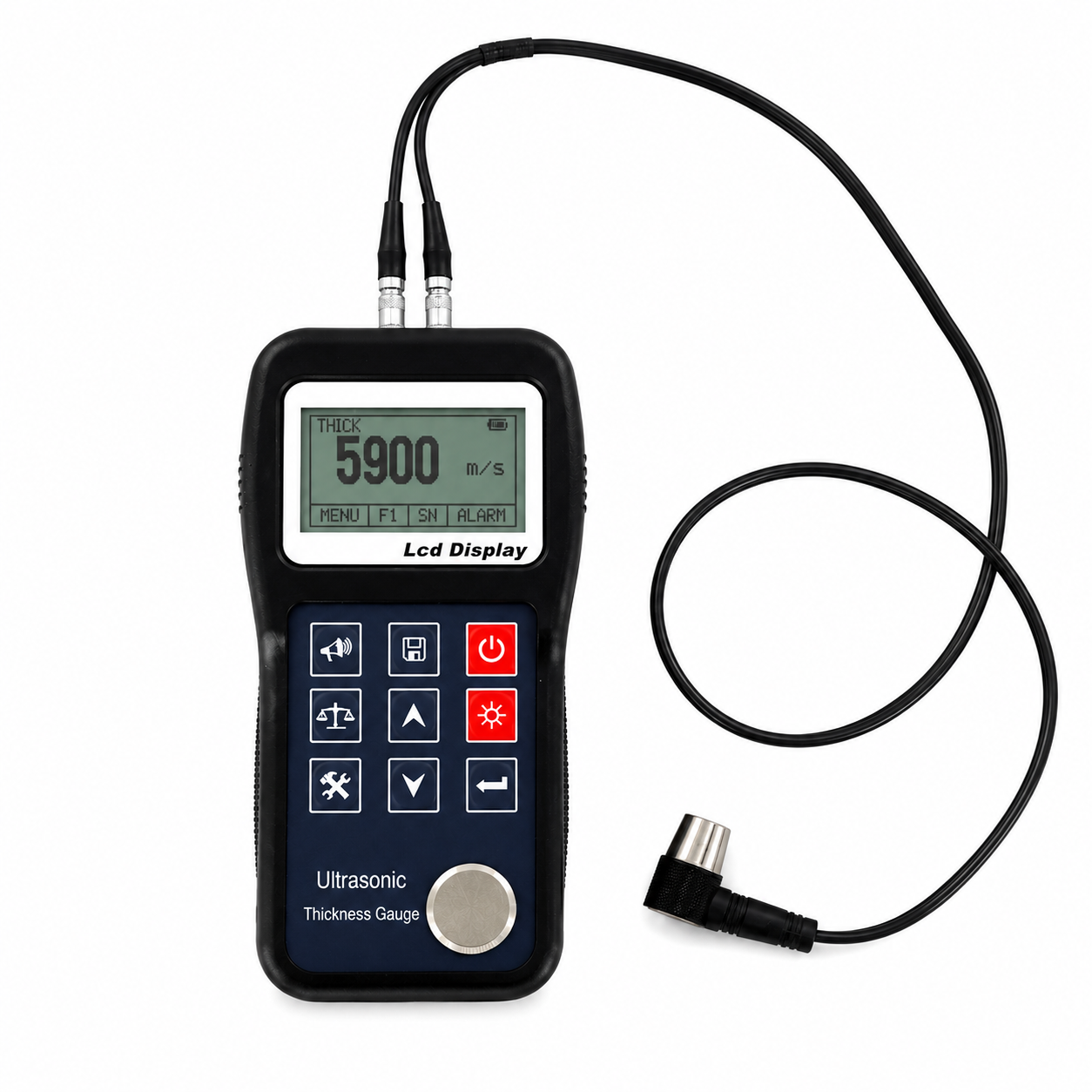

The NDT310 Ultrasonic Thickness Gauge is a portable high-precision inspection instrument designed for measuring wall thickness and monitoring corrosion in pipes, tanks, pressure vessels, and structural components. Suitable for a wide range of materials, including steel, aluminum, copper, plastics, ceramics, and fiberglass, it delivers reliable measurements for industrial maintenance, NDT inspections, and asset integrity programs.
Couldn't load pickup availability
Product features
Measurement range from 0.75 mm to 300 mm (0.03" to 11.8").
Compatible with steel, cast iron, aluminum, copper, plastics, ceramics, glass, and fiberglass.
Adjustable sound velocity from 1000 m/s to 9999 m/s for various materials.
Resolution up to 0.01 mm for precise thickness measurements.
Automatic probe zero calibration and two-point calibration.
Corrosion scanning mode with minimum thickness capture.
Coupling status indicator for reliable measurements.

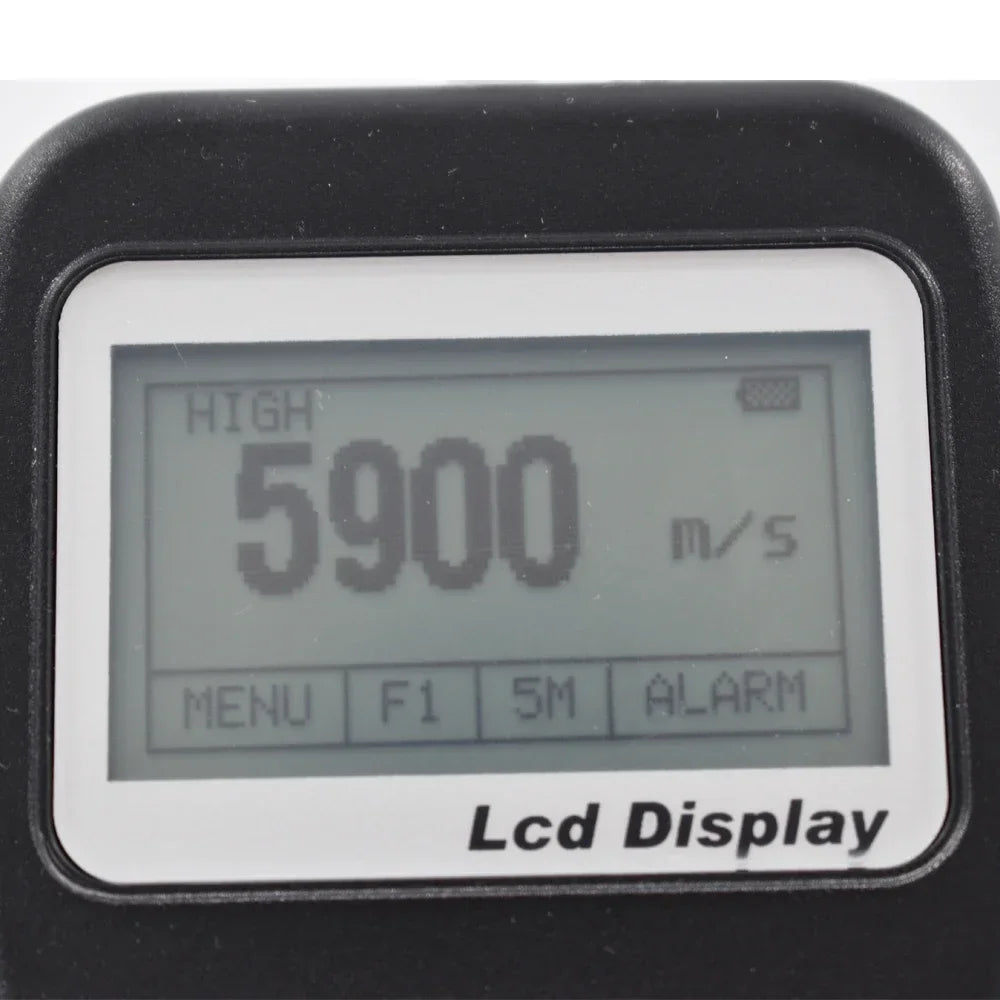

LED backlit display for low-light environments.
Stores up to 500 measurements across multiple files.
Scanning speed up to 20 readings per second.

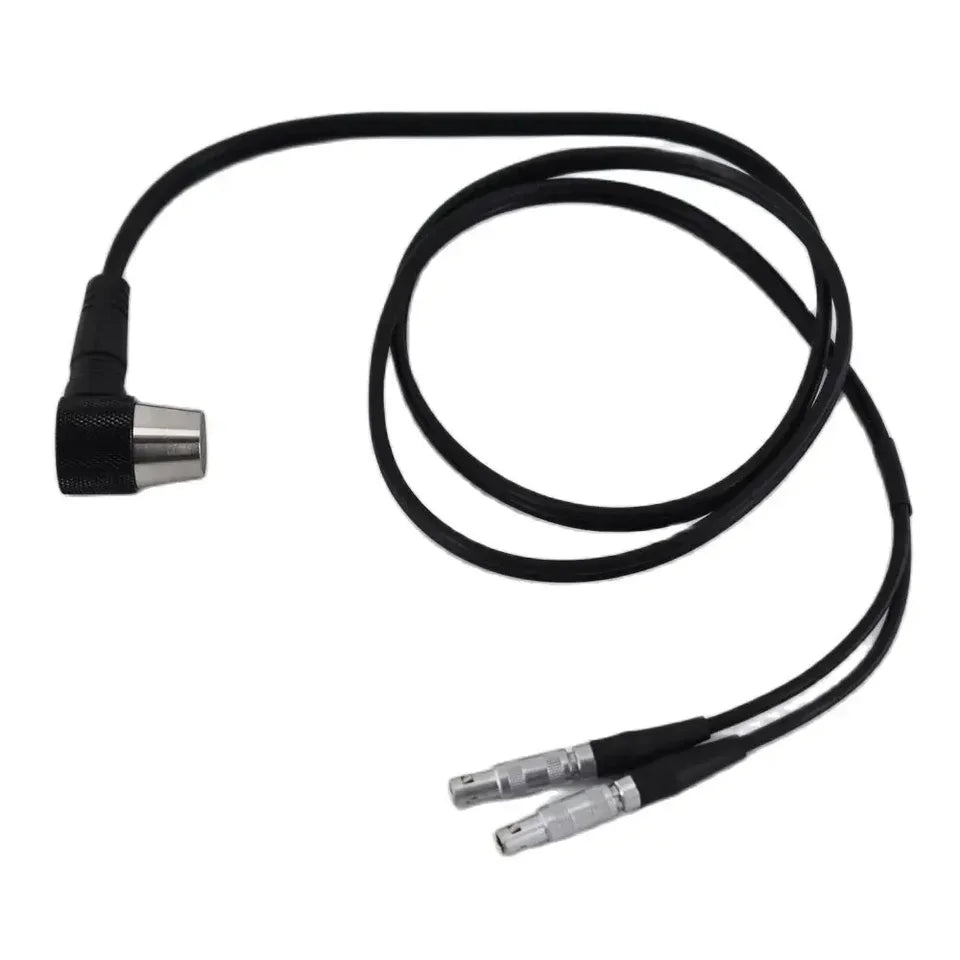

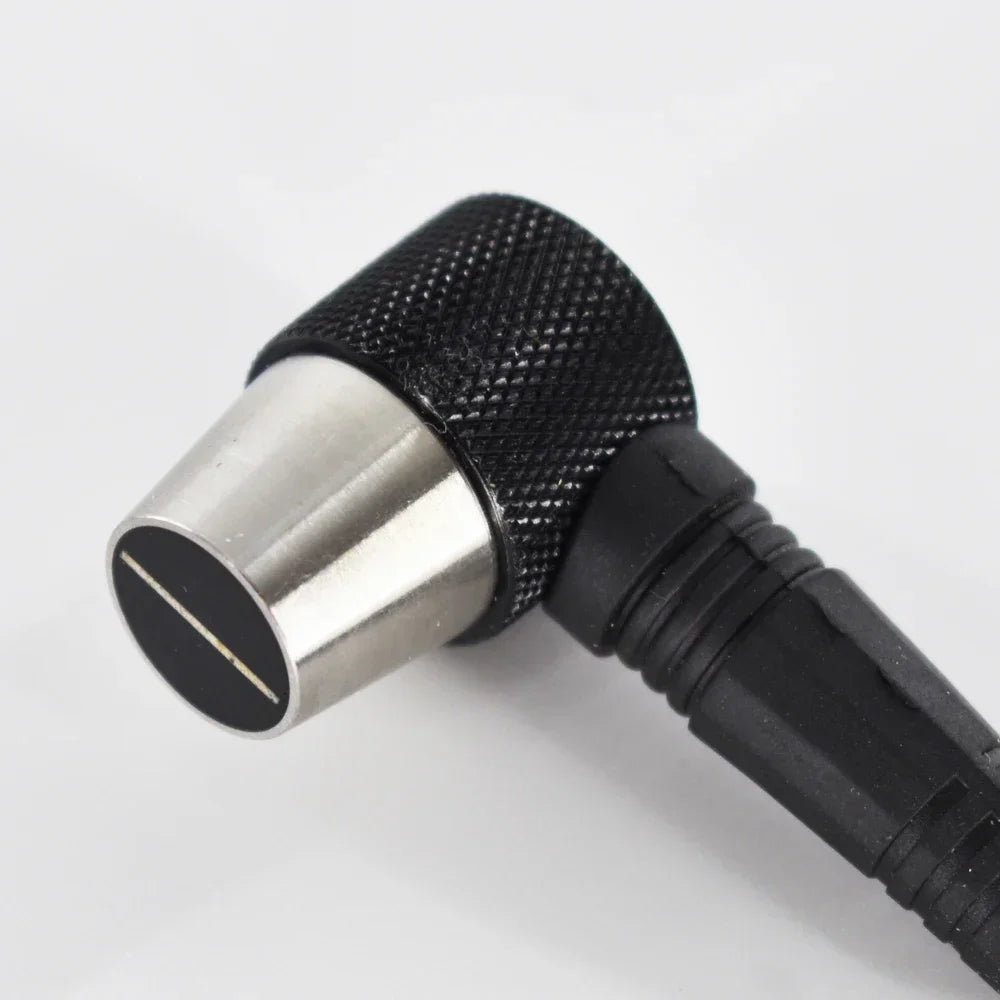

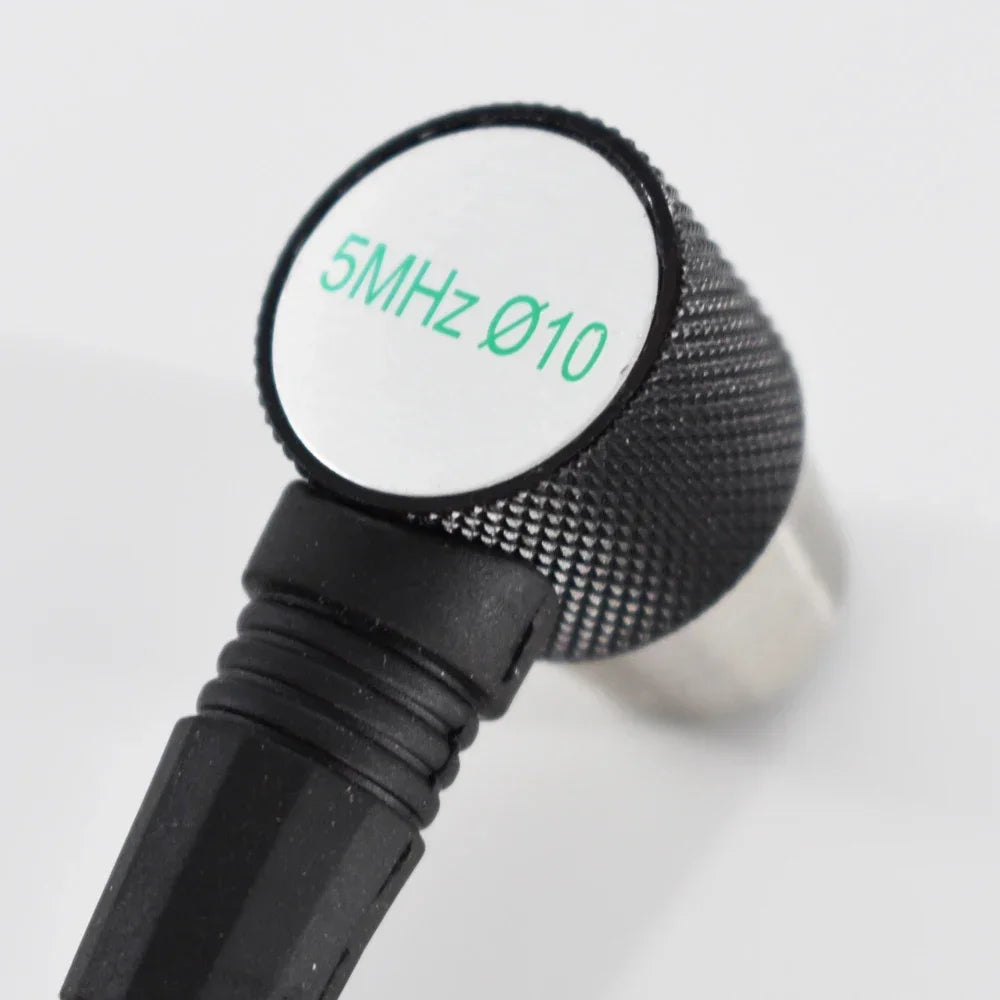

Supports multiple optional probes for thin walls, thick materials, and high-temperature applications.
Compact IP54-rated design for field inspections.

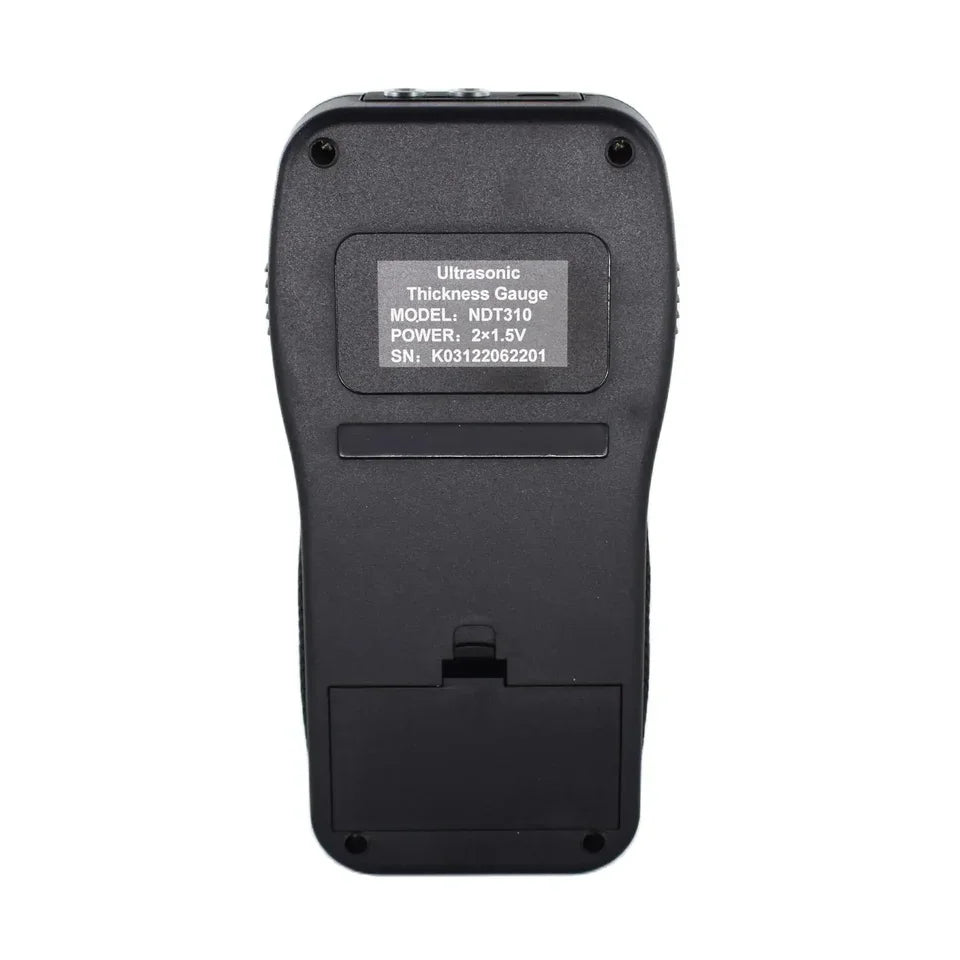

Up to 100 hours of operation using two AA batteries.
Materials and care
Rugged industrial housing designed for field use.
Keep the probe surface clean and free from contaminants.
Use appropriate ultrasonic couplant for accurate measurements.
Store in a dry environment when not in use.
Avoid dropping or exposing the instrument to excessive moisture.
