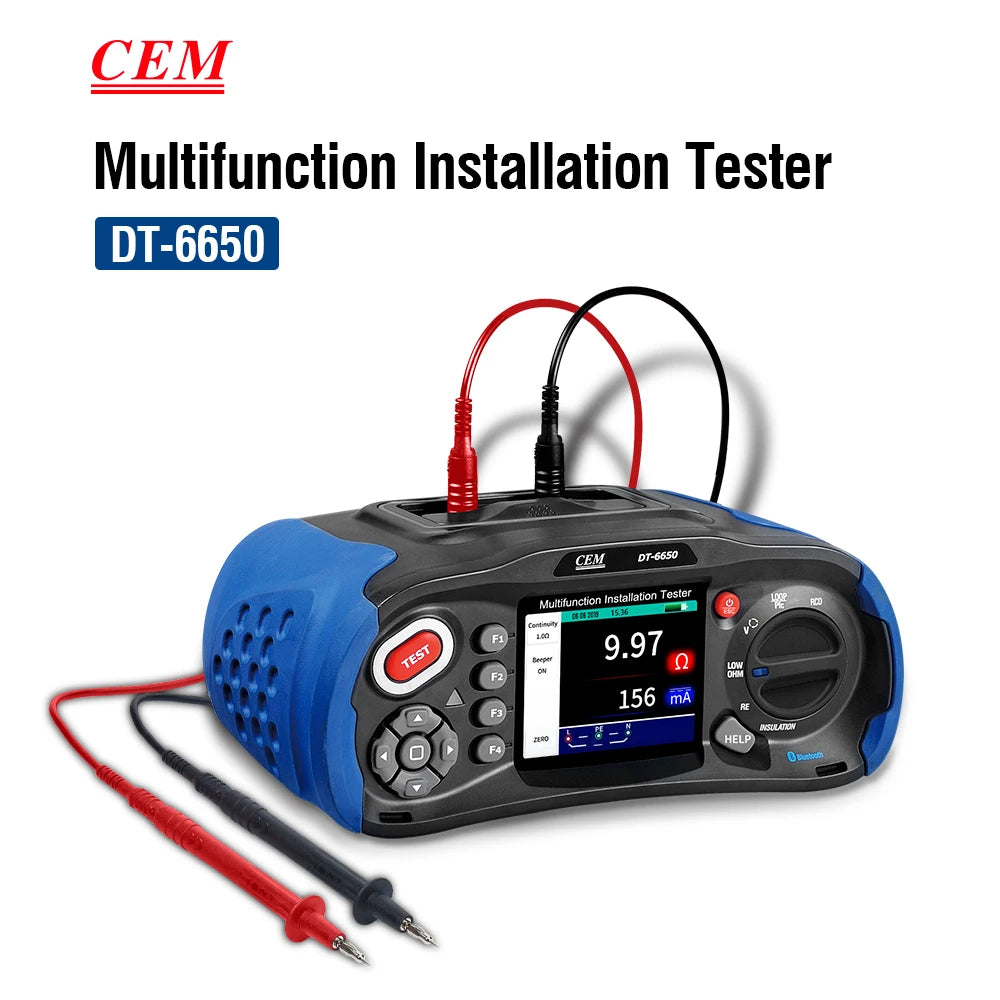

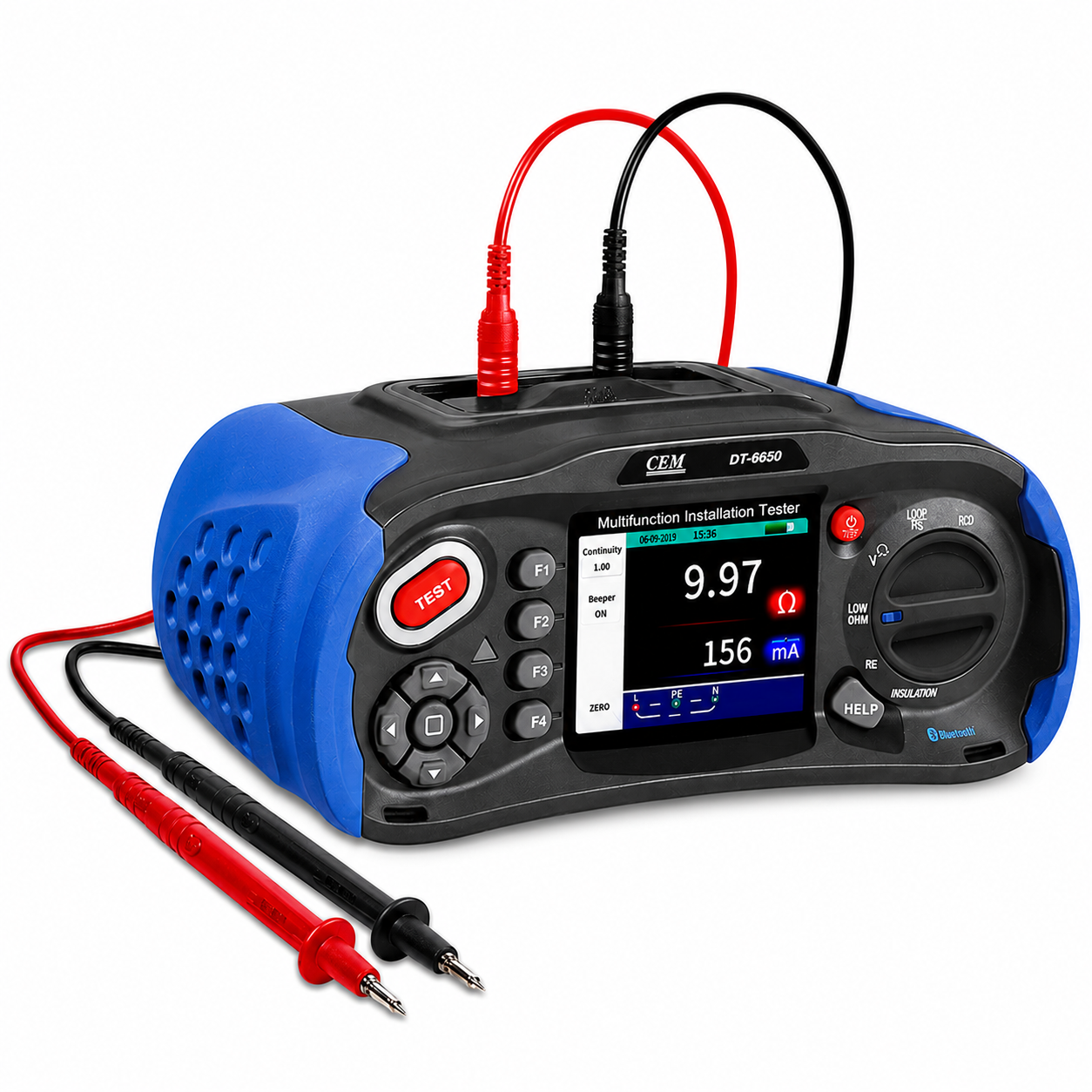

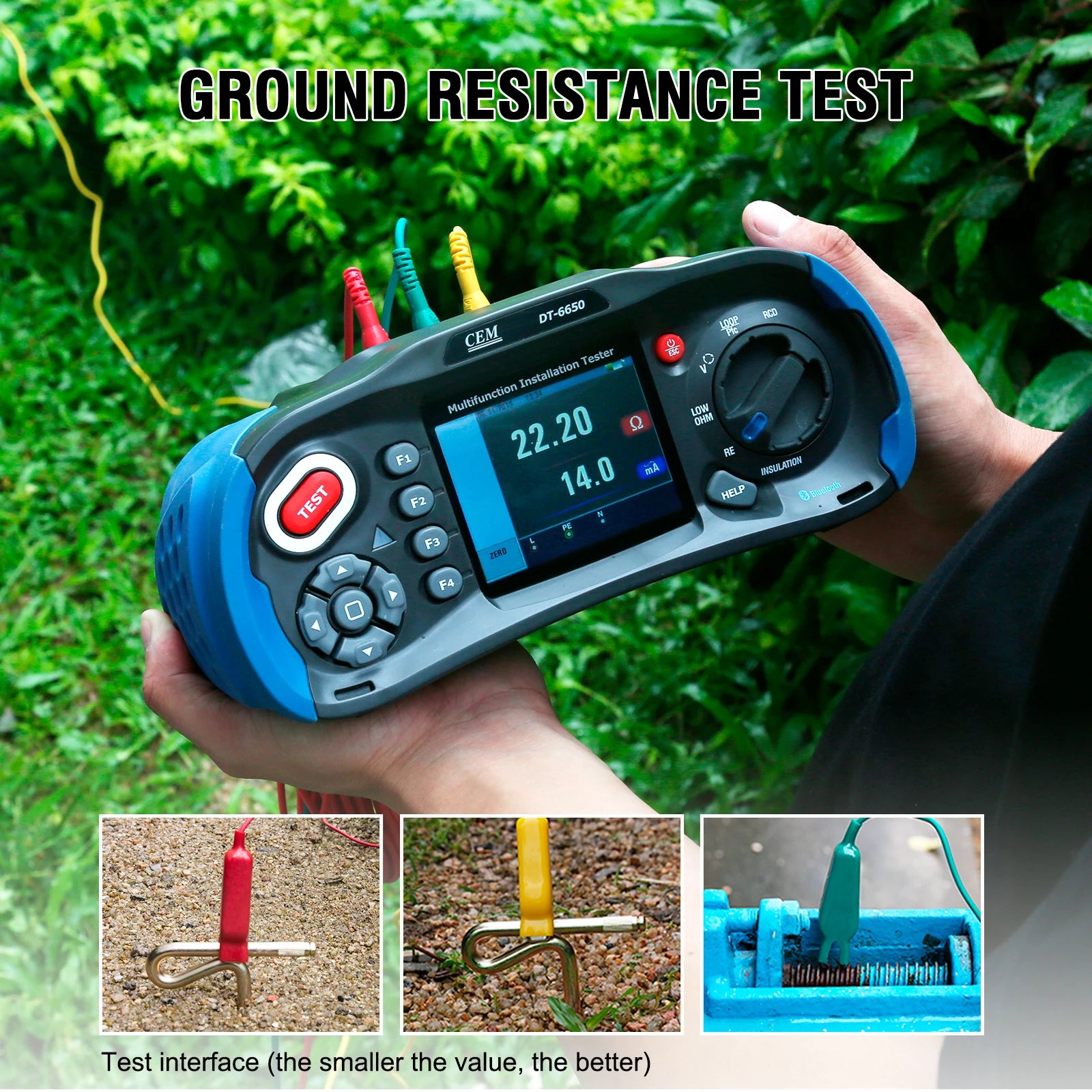

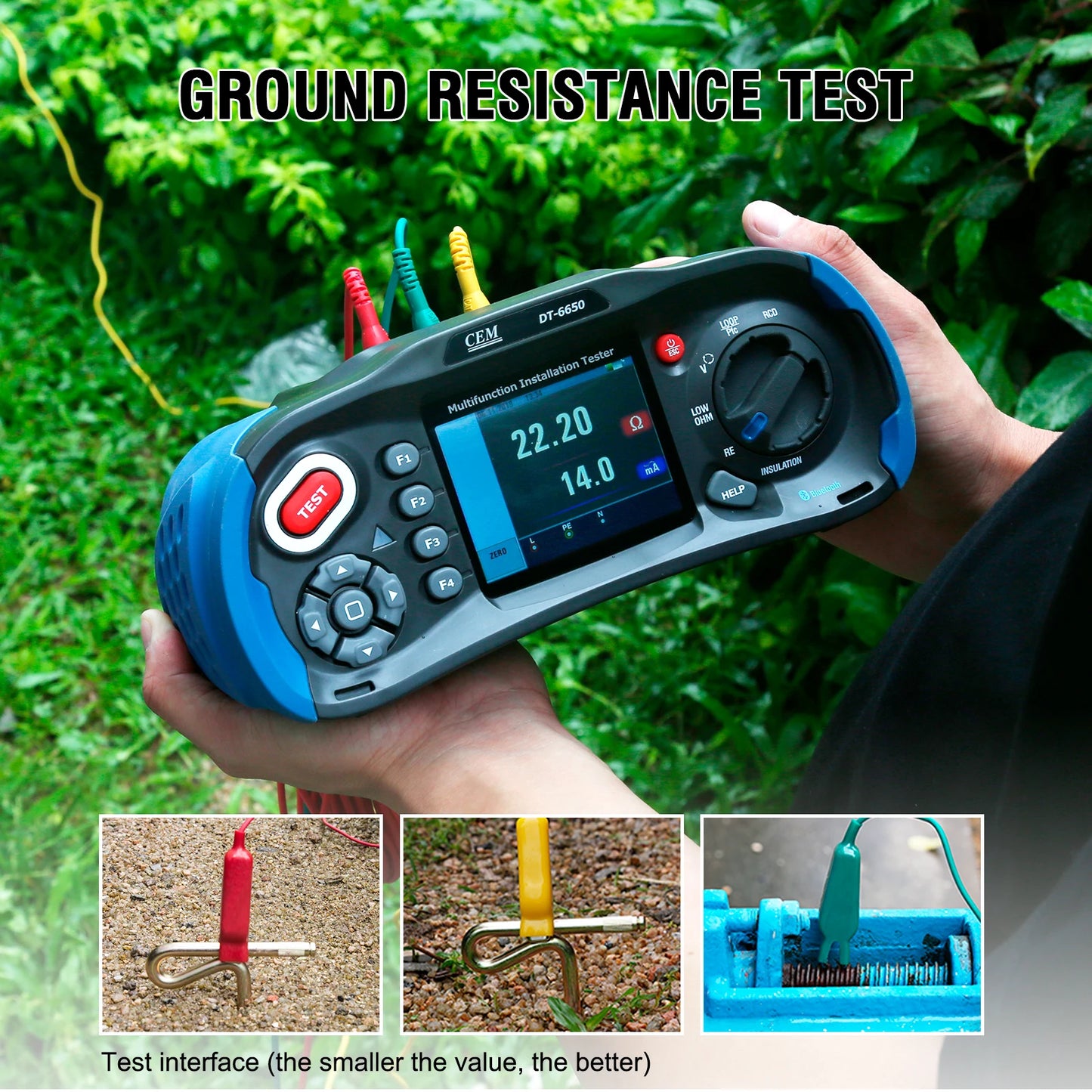

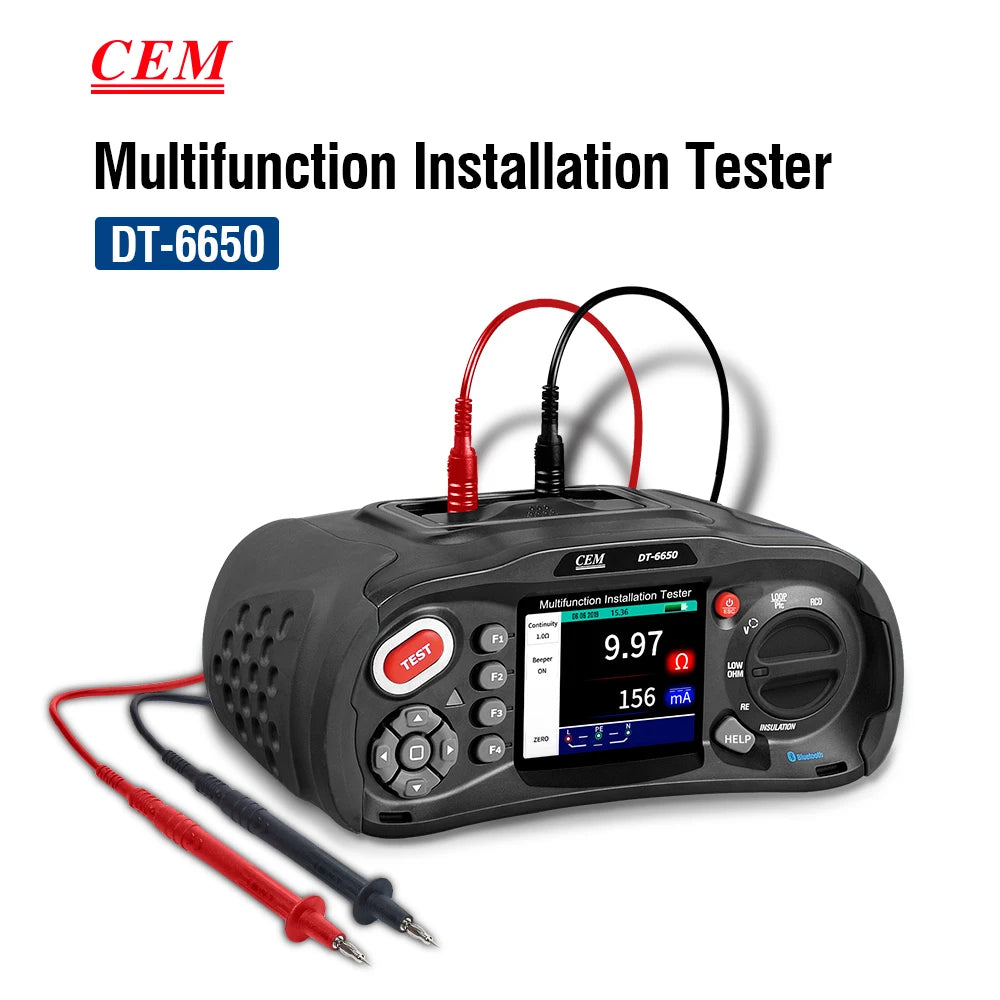

Industrial Electrical Installation Tester designed for fast, accurate verification of fixed wiring and electrical systems in industrial, commercial, and field service environments. This multifunction tester supports insulation resistance, loop impedance, low-ohm continuity, voltage, frequency, earth voltage, RCD, PFC, and PSC testing. Its 3.5-inch TFT color display, internal memory, Bluetooth/SD card interface, and rugged handheld format make it suitable for electrical maintenance, commissioning, and safety inspection work in demanding oil, gas, and industrial facilities.
Couldn't load pickup availability
Product features

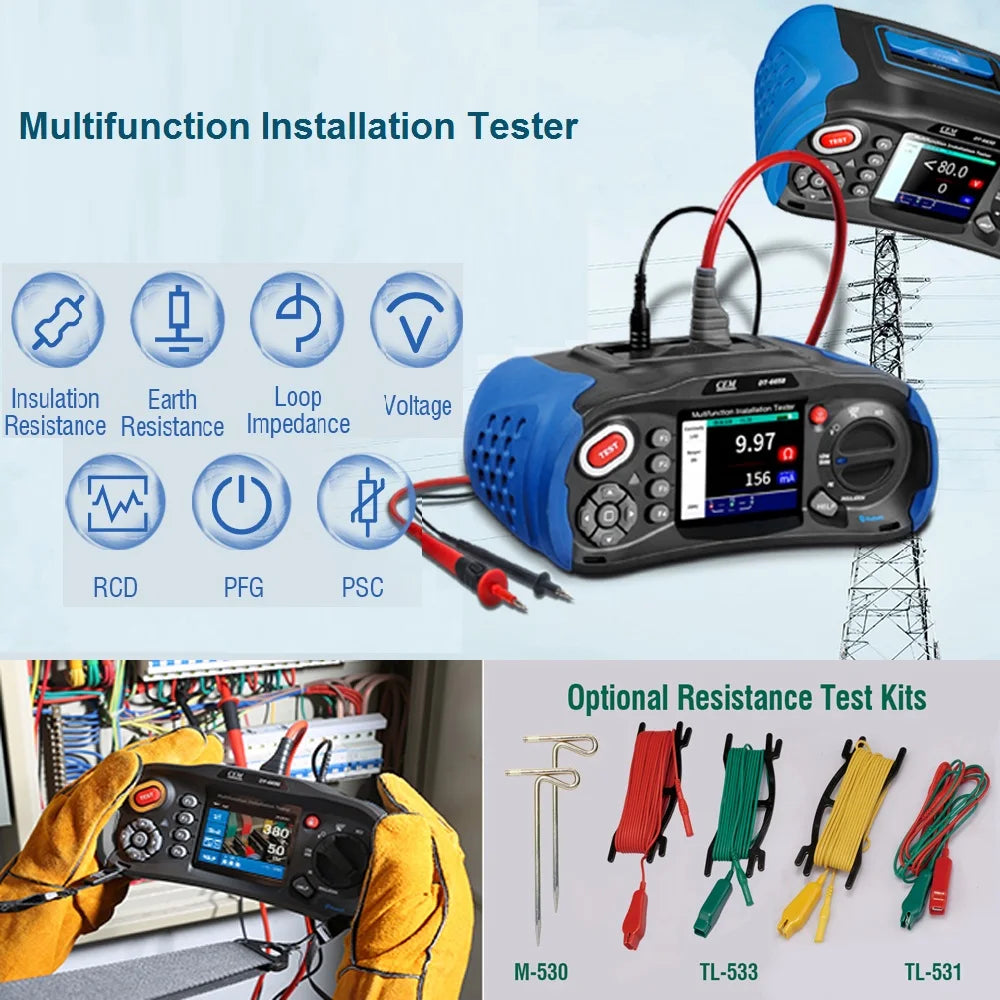

Multifunction electrical tester for insulation, loop resistance, low-ohm, continuity, voltage, frequency, RCD, PFC, and PSC testing.

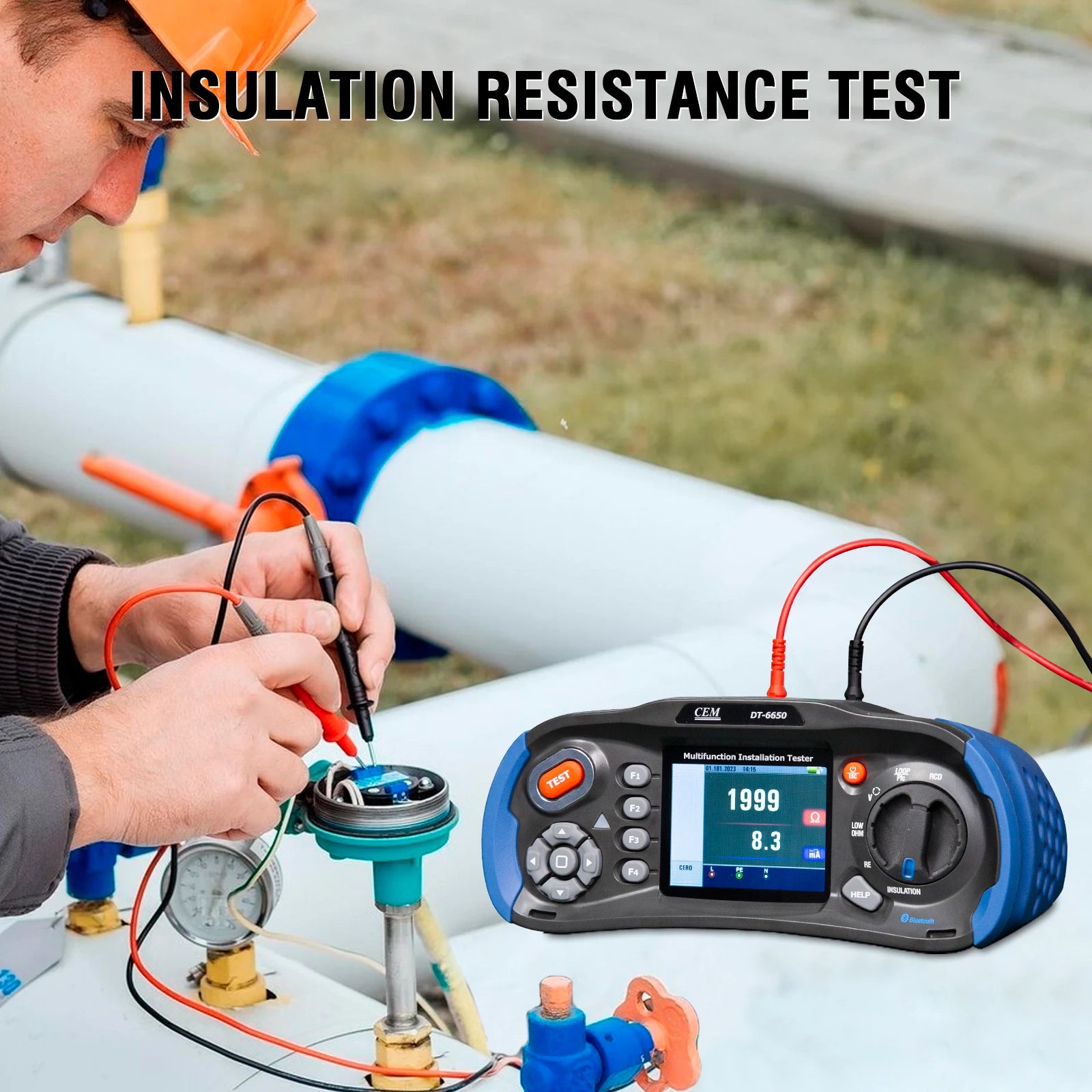

Insulation test voltage options: 125V, 250V, 500V, and 1000V.
Insulation resistance range up to 4000MΩ.
Low-ohm measurement ranges: 4Ω, 40Ω, and 400Ω.

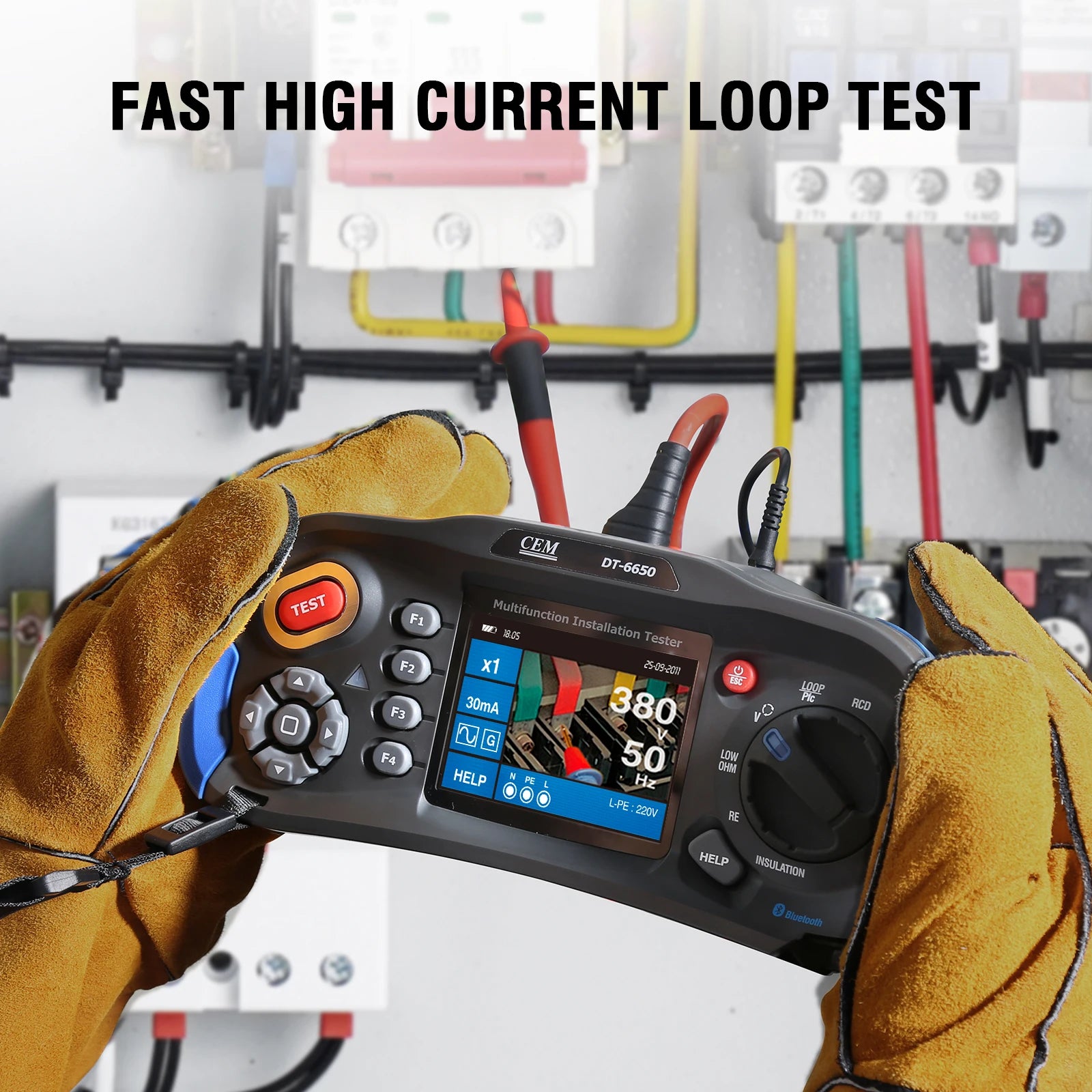

Fast high-current loop testing for L-N, L-PE, and N-PE measurements.

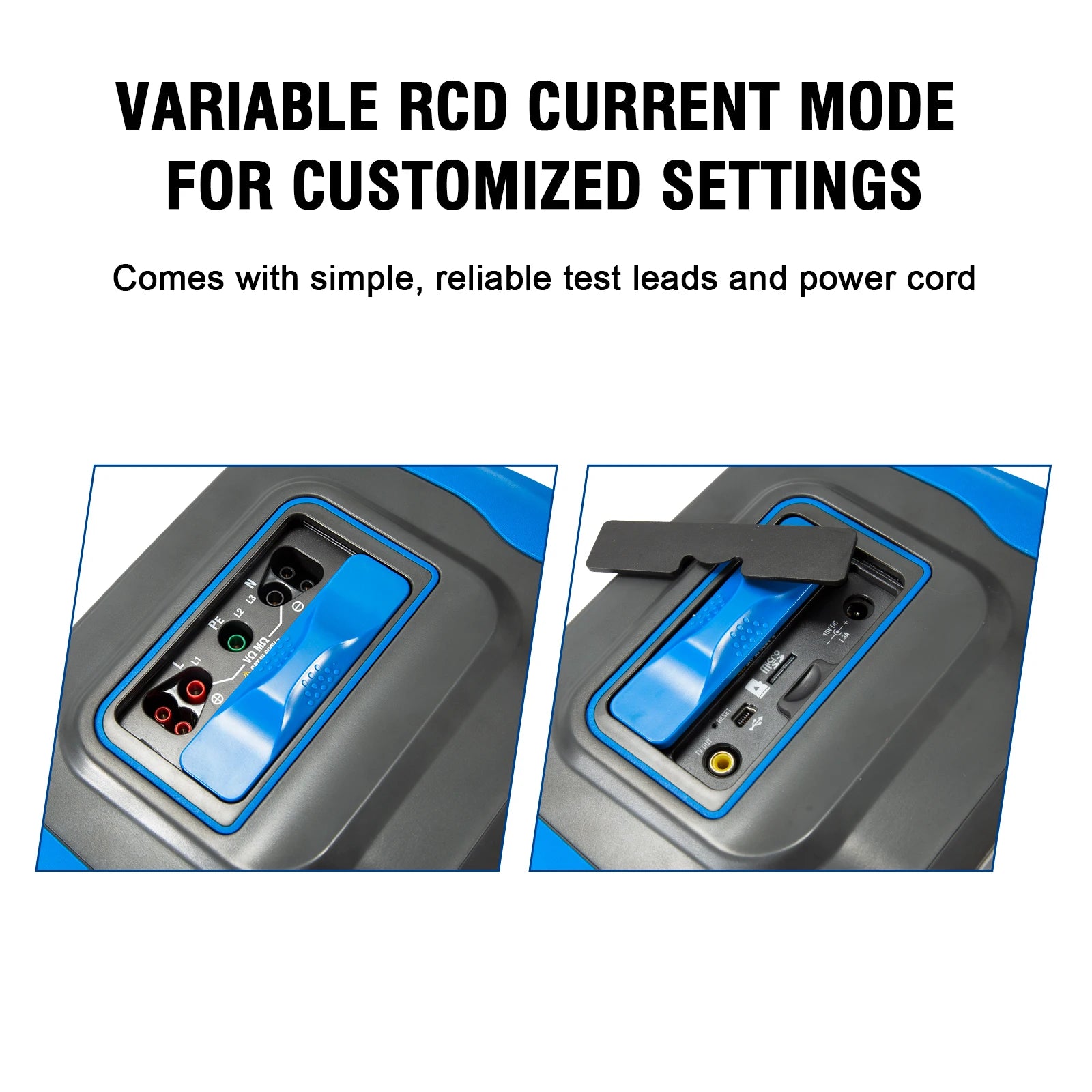

RCD testing with variable current mode and PASS/FAIL indication.
Safe Earth Volt touchpad detects raised earth voltages above 50V.
3.5-inch TFT color LCD with 320 × 240 resolution for clear field readings.
Bluetooth, SD card, USB/software support, and internal memory for test data management.

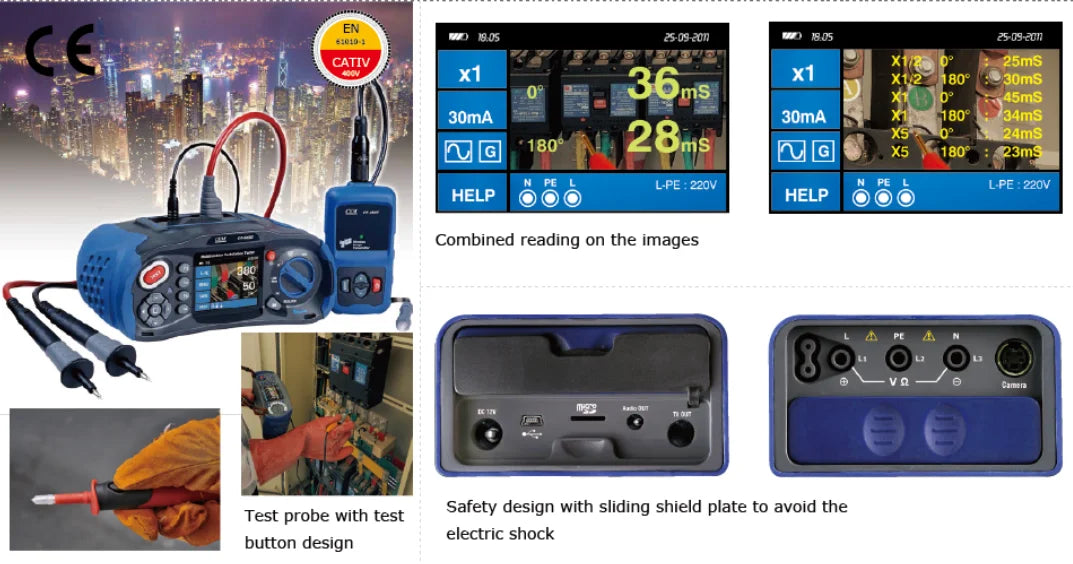

Slim probes with test button for convenient field operation.

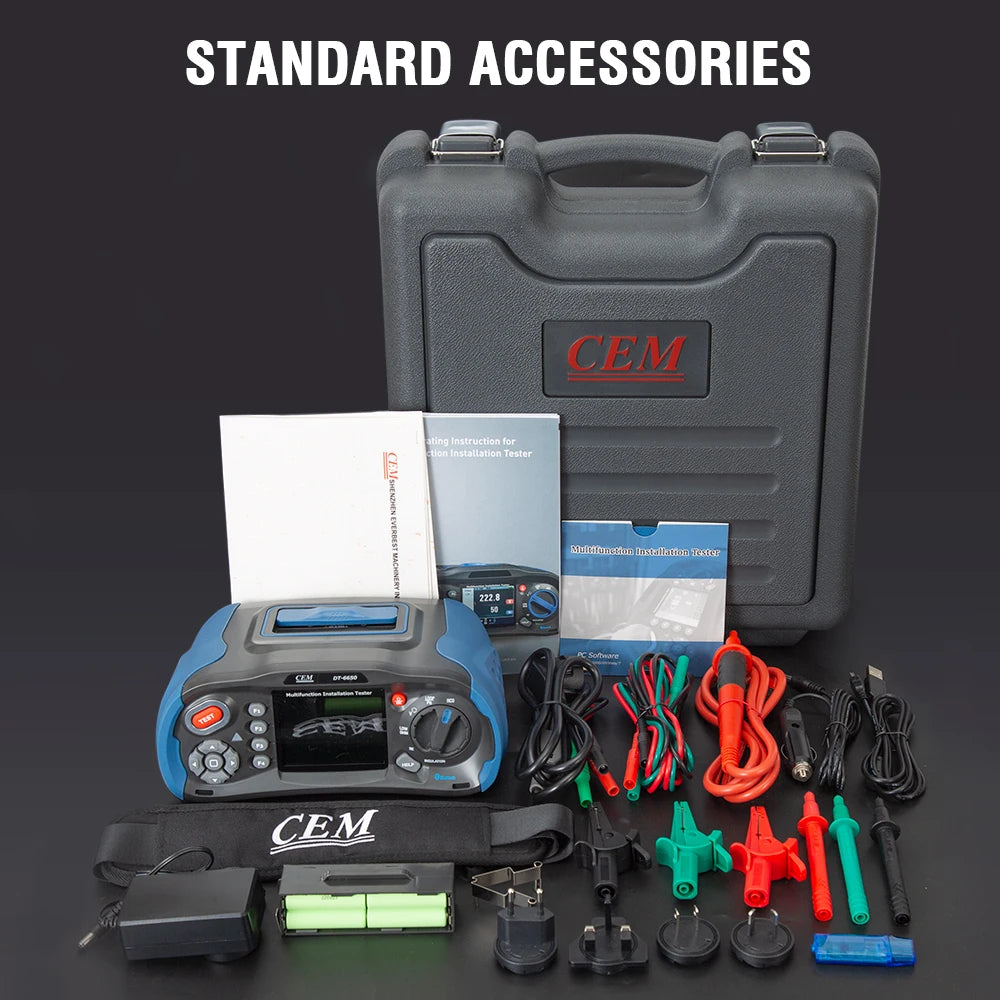

Includes continuity beeper, test leads, USB cable, software, carrying case, and 8 × AAA batteries.
CE and FCC certified.
Operating temperature: 0–40°C.
Size: 220mm × 96.5mm × 60.5mm.
Weight: 631g.
Materials and care
Rugged handheld tester body with color LCD display and field-use test probes.
Store in the included carrying case when not in use.
Keep the tester, probes, USB cable, and battery compartment clean and dry.
Do not expose the unit to excessive moisture, corrosive chemicals, or extreme temperatures.
Inspect probes, leads, and connectors before each use. Do not use damaged test leads.
Remove batteries before long-term storage.
Use only within the stated voltage, frequency, temperature, and measurement ranges.
Calibration and inspection should be performed according to site safety procedures and applicable electrical testing requirements.
