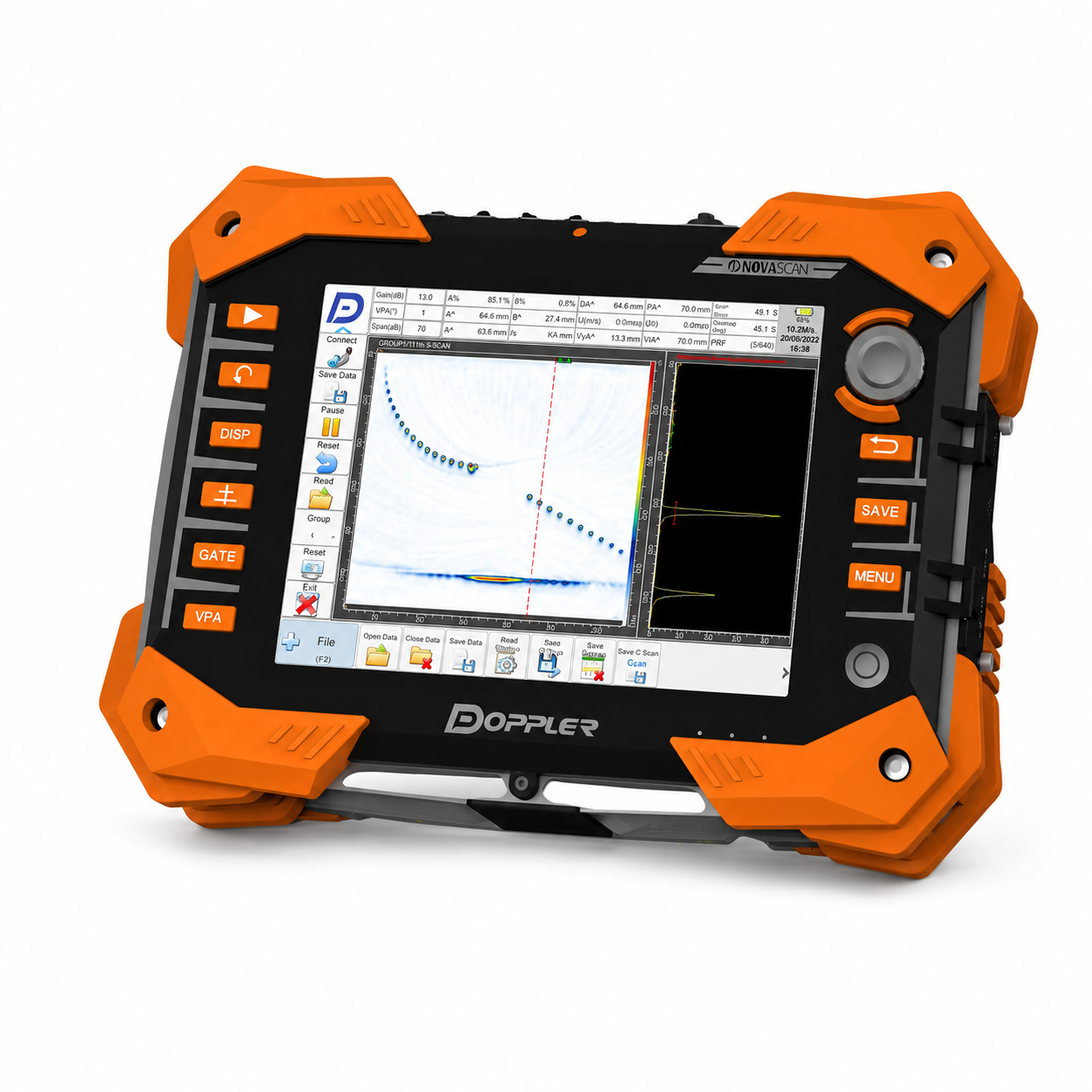

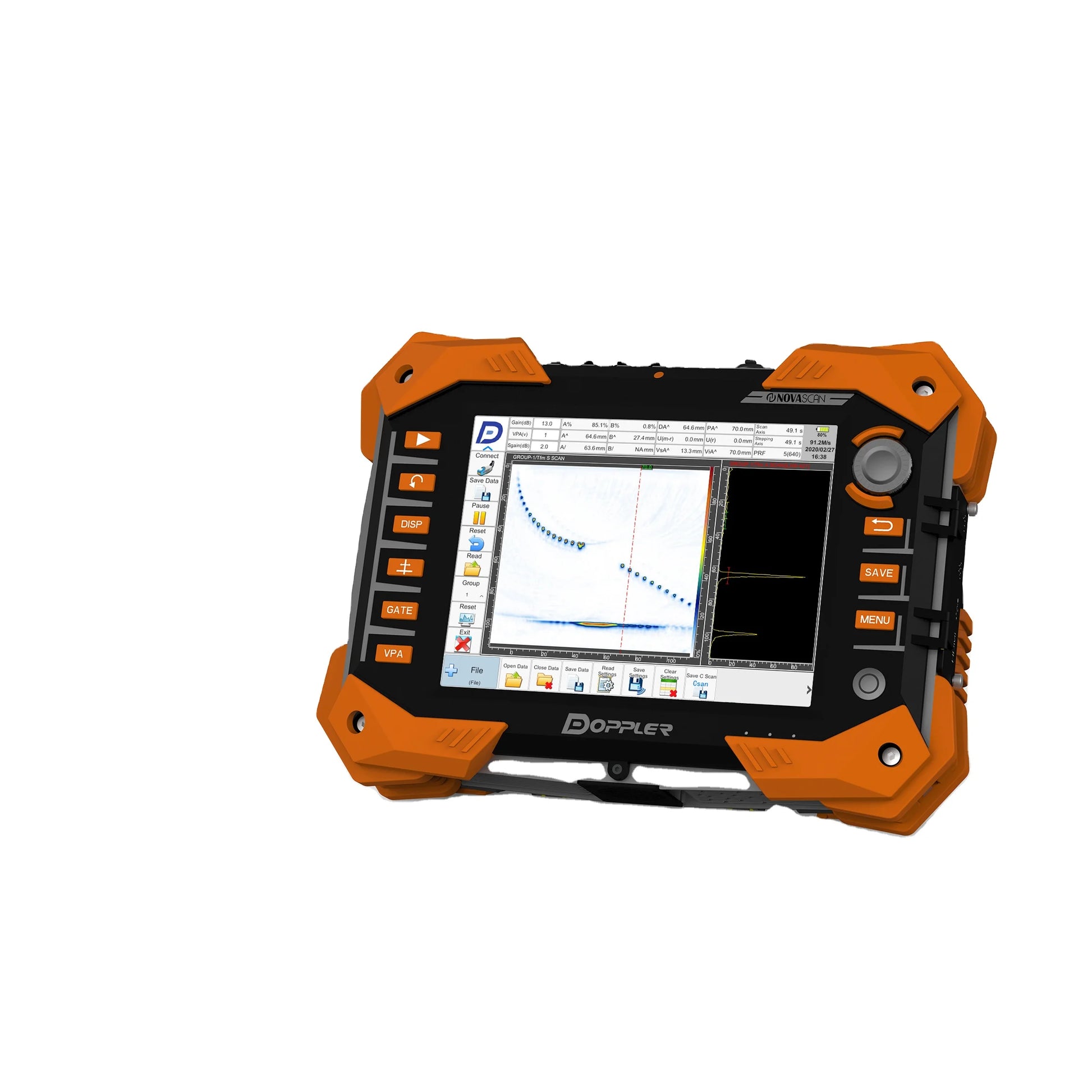

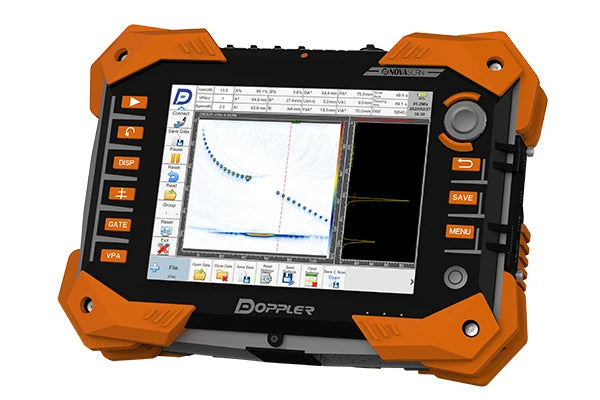

NovaScan Phased Array Ultrasonic Flaw Detector – Advanced PAUT Inspection System

NovaScan Phased Array Ultrasonic Flaw Detector – Advanced PAUT Inspection System

$191,739.95 USD
$230,087.95 USD $191,739.95 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

99 in stock

Default Title
The NovaScan Phased Array Ultrasonic Flaw Detector is a high-performance PAUT inspection system designed for advanced weld inspection, corrosion mapping, TOFD analysis, and Total Focusing Method (TFM) imaging. Combining 128-channel phased array technology, real-time 3D visualization, and portable field-ready operation, it delivers exceptional defect detection capabilities for Oil & Gas, power generation, fabrication, aerospace, and industrial NDT applications.

Product features

  • Advanced Phased Array Ultrasonic Testing (PAUT) system.

  • Supports TFM (Total Focusing Method) imaging.

  • Integrated PAUT, TOFD, and conventional UT inspection modes.

  • 128-channel transmit and 32-channel receive architecture.

  • Compatible with phased array probes up to 128 elements.

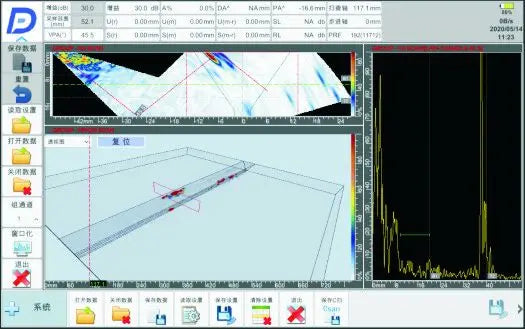

  • Real-time 3D defect visualization and analysis.

  • A-scan, B-scan, C-scan, S-scan, PA-TOFD display modes.

  • Linear, sectorial, dual linear array, and DMA probe support.

  • 0.5–15 MHz bandwidth for versatile inspection applications.

  • 100 MHz sampling rate for high-resolution signal acquisition.

  • Intelligent corrosion mapping and nozzle inspection capabilities.

  • Built-in 128 GB SSD for large inspection datasets.

  • Portable design optimized for laboratory and field inspections.

  • FPGA direct data transmission for advanced analysis and custom development.

  • Suitable for weld inspection, pressure vessels, piping, structural components, corrosion monitoring, and critical asset integrity programs.

Materials and care

  • Rugged industrial-grade construction for field deployment.

  • Store in a clean, dry environment when not in use.

  • Protect the touchscreen and connectors from impact and contamination.

  • Clean probe and connector interfaces after inspections.

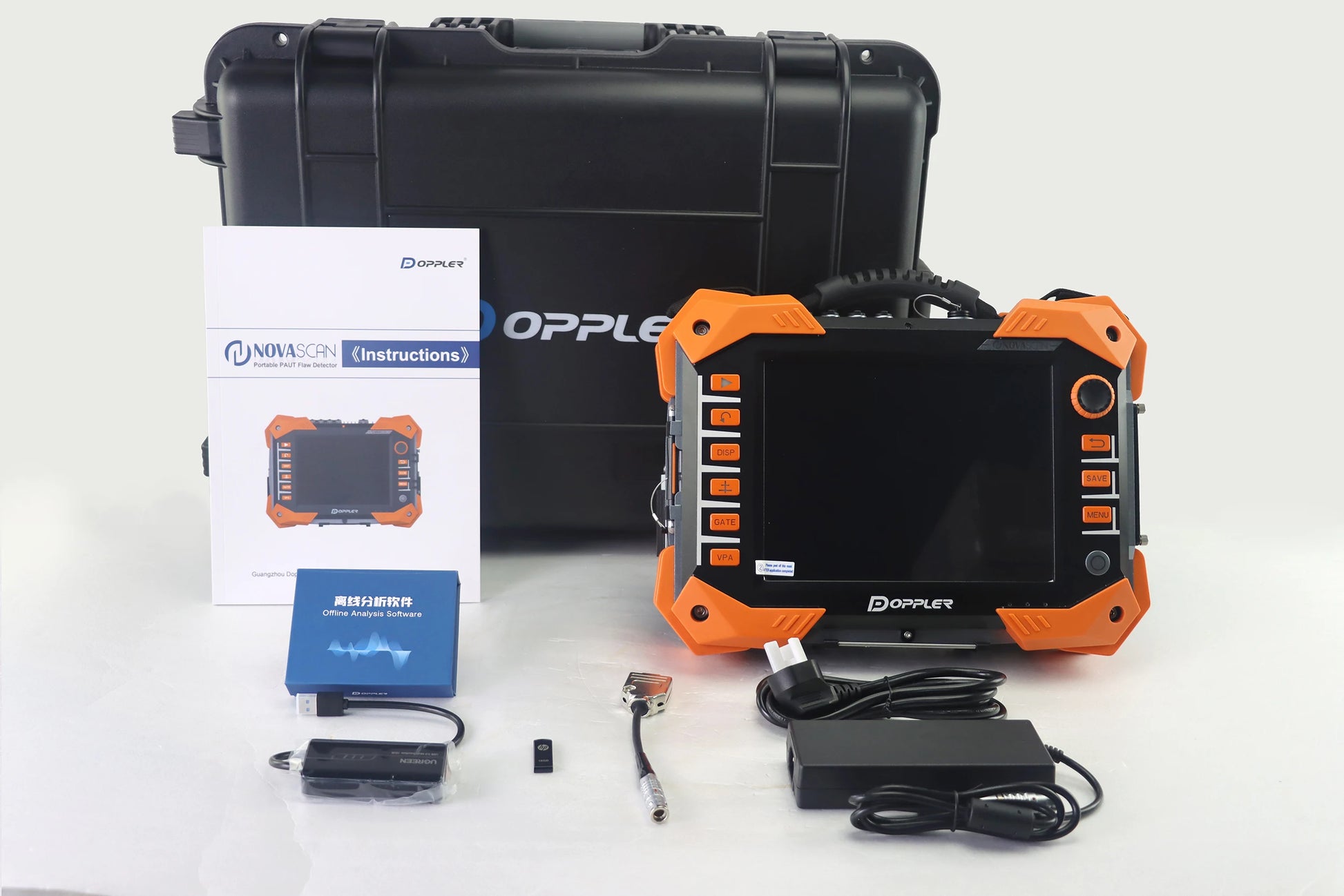

  • Transport using a dedicated protective carrying case.

  • Perform periodic calibration and software maintenance according to inspection procedures.

  • Use only approved phased array probes, scanners, and accessories.
