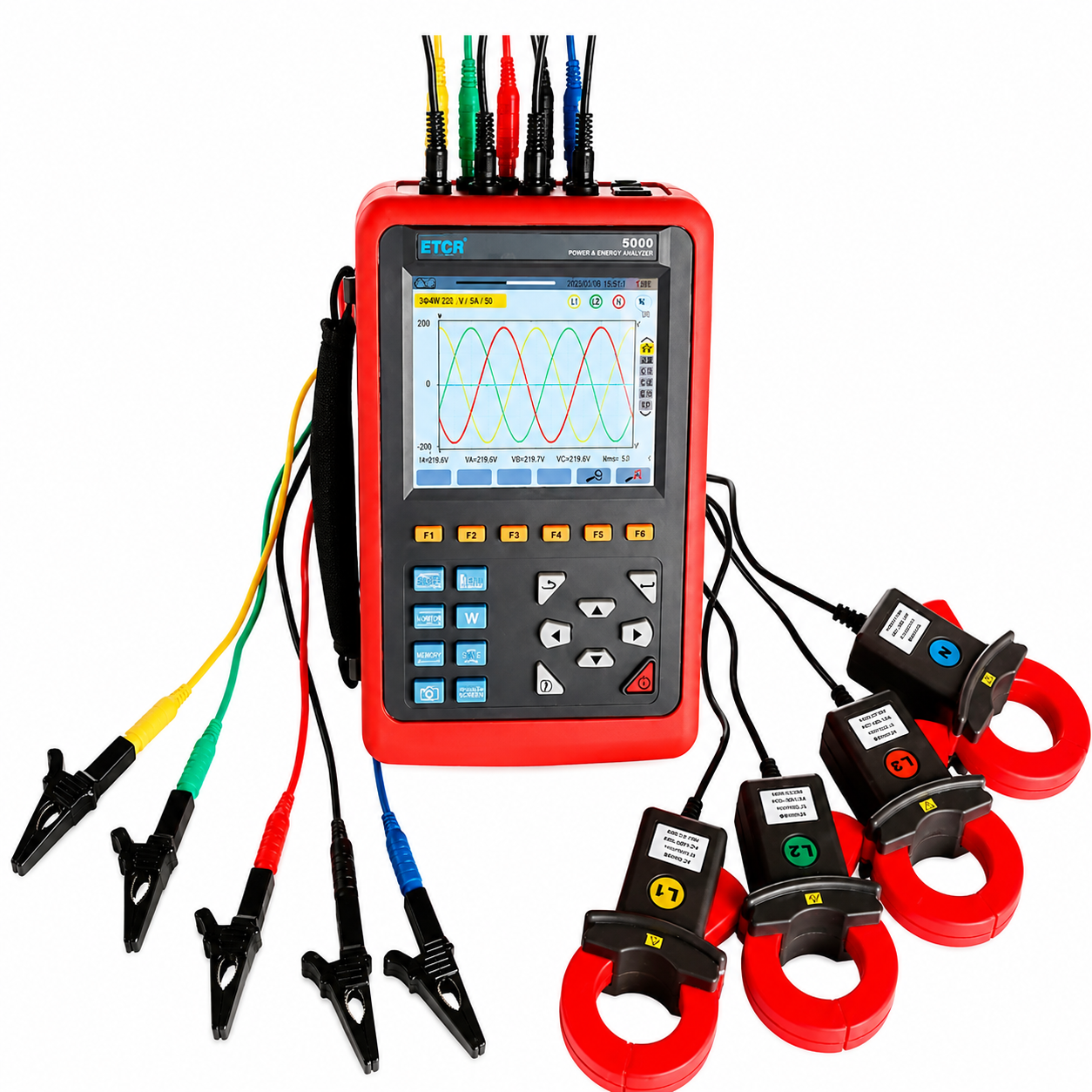

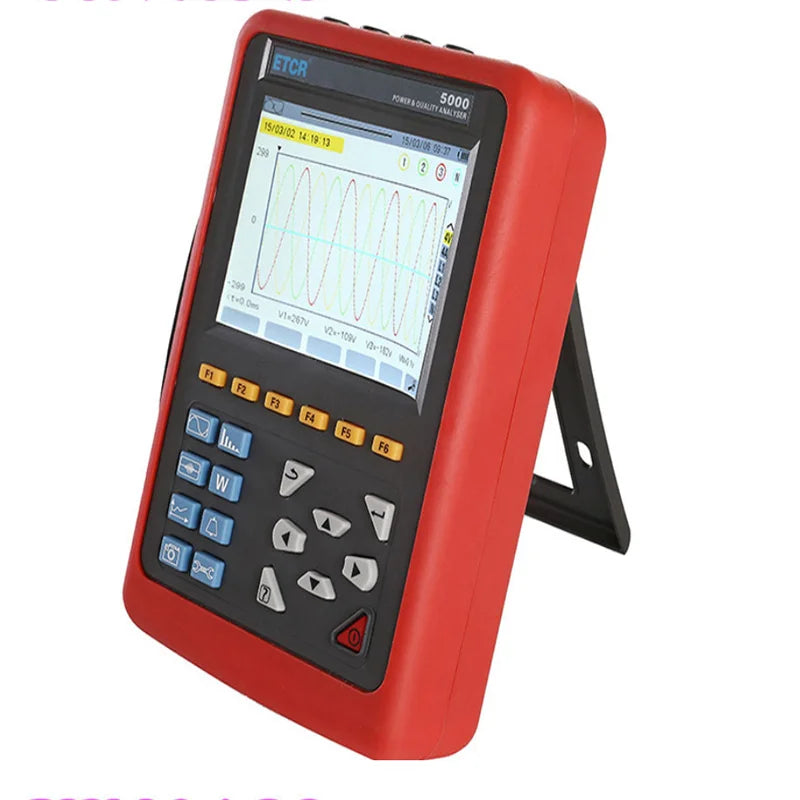

ETCR5000 Three-Phase Power Quality Analyzer – Industrial Energy & Harmonic Analysis System
ETCR5000 Three-Phase Power Quality Analyzer – Industrial Energy & Harmonic Analysis System
Regular price
$3,275.95 USD
Regular price
$3,767.95 USD
Sale price
$3,275.95 USD
Taxes included.
Shipping calculated at checkout.
9997 in stock
The ETCR5000 Power Quality Analyzer is a professional three-phase electrical diagnostic instrument designed for advanced energy monitoring, power quality analysis, harmonic measurement, and electrical system troubleshooting. Ideal for industrial facilities, power distribution systems, substations, manufacturing plants, and Oil & Gas operations, it provides real-time analysis of voltage, current, power, energy consumption, harmonics, phase imbalance, and transient events in a portable field-ready platform.
Couldn't load pickup availability
Product features
Product features
- Three-phase power quality and energy analyzer.
Measures voltage up to 2000V and current up to 1000A.
Harmonic analysis up to the 50th order.
Total Harmonic Distortion (THD) measurement.
Active, reactive, and apparent power analysis.
Power factor (PF) and displacement power factor (DPF).
Three-phase imbalance detection.
Voltage flicker monitoring.
Inrush current capture mode.
Transient event recording.
Real-time phasor diagram display.
Data logging for up to 300 days.

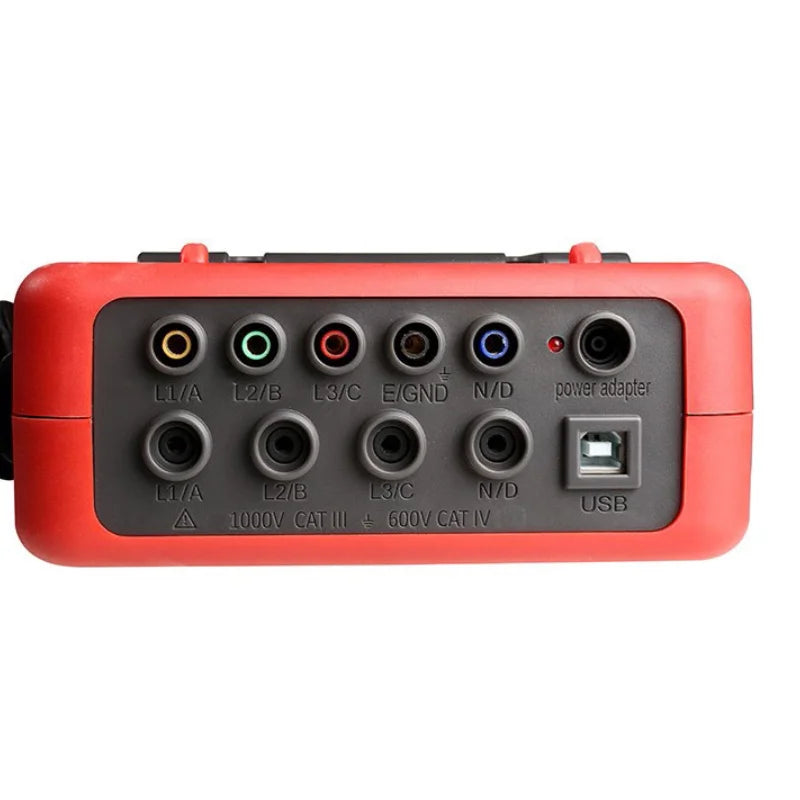

4 voltage channels and 4 current channels.

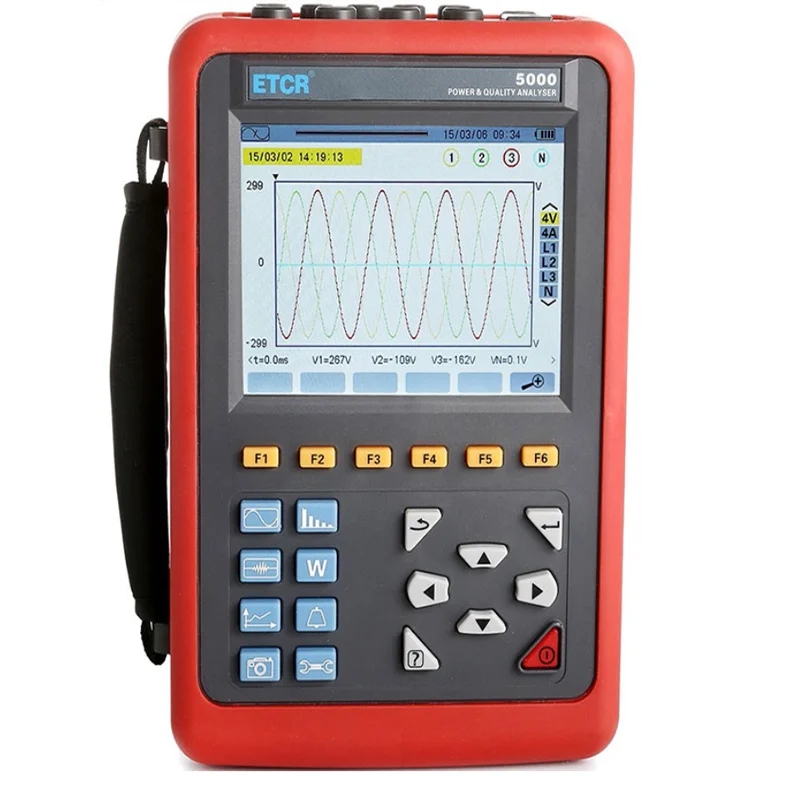

5.6-inch color LCD display (640×480 resolution).
USB communication interface.
Rechargeable lithium battery with approximately 8 hours of operation.
CE certified industrial-grade design.
Materials and care
Materials and care
- Rugged double-insulated industrial housing.
Designed for field and industrial environments.
Store in a dry environment between -10°C and 60°C.
Avoid exposure to strong external electromagnetic fields during measurements.
Inspect voltage leads and current clamps before each use.
Recharge the battery fully before extended field operations.
