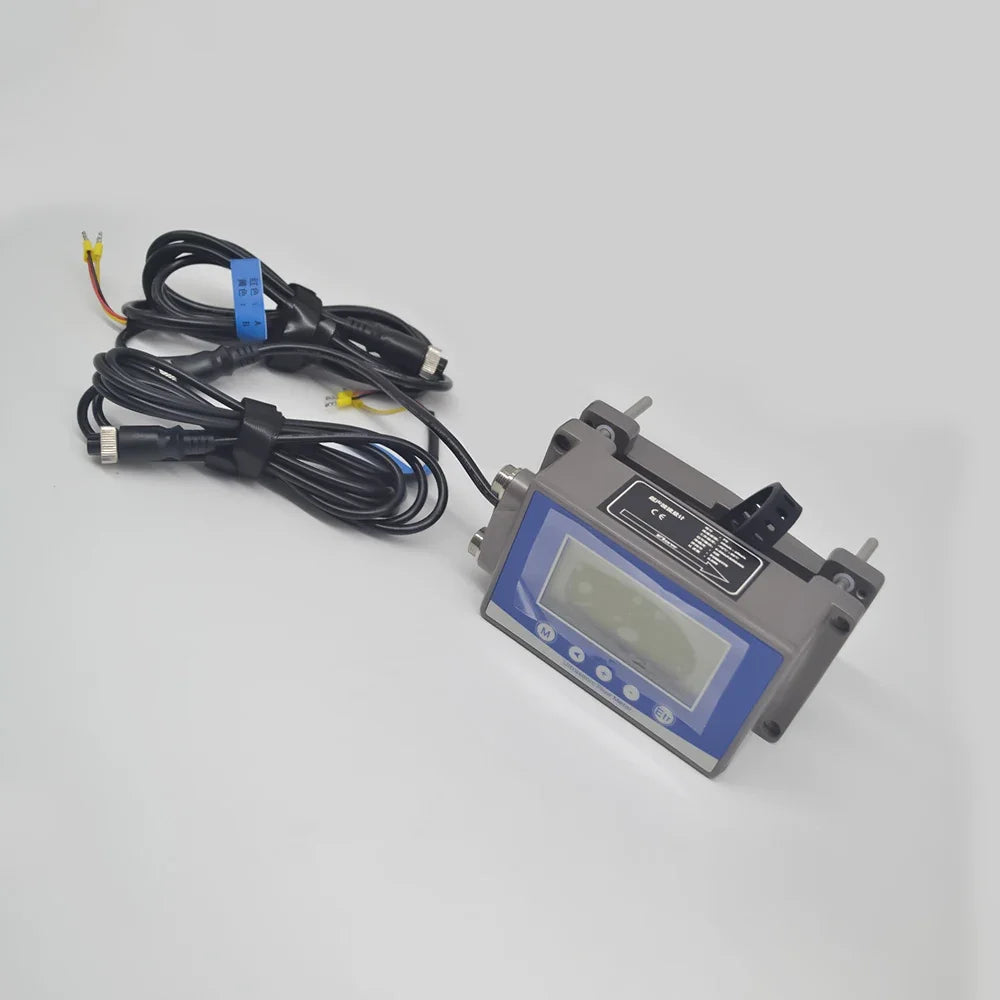

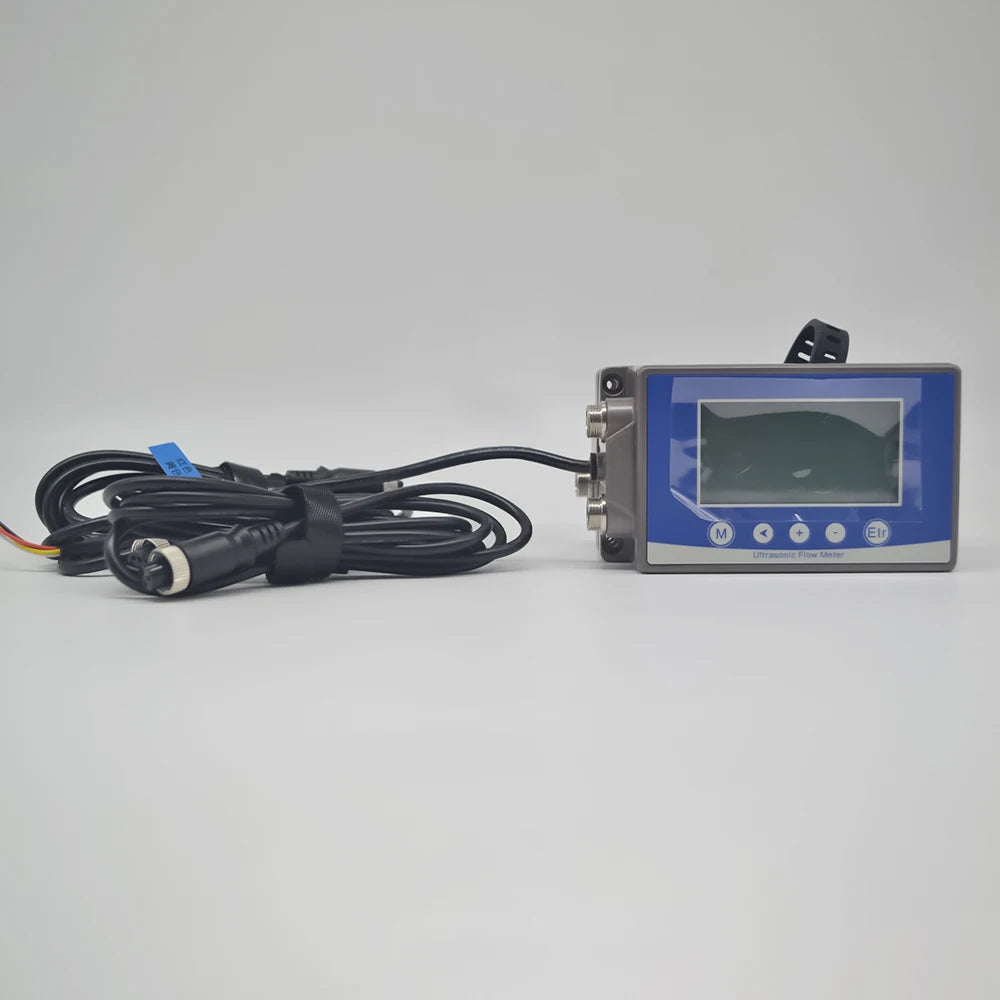

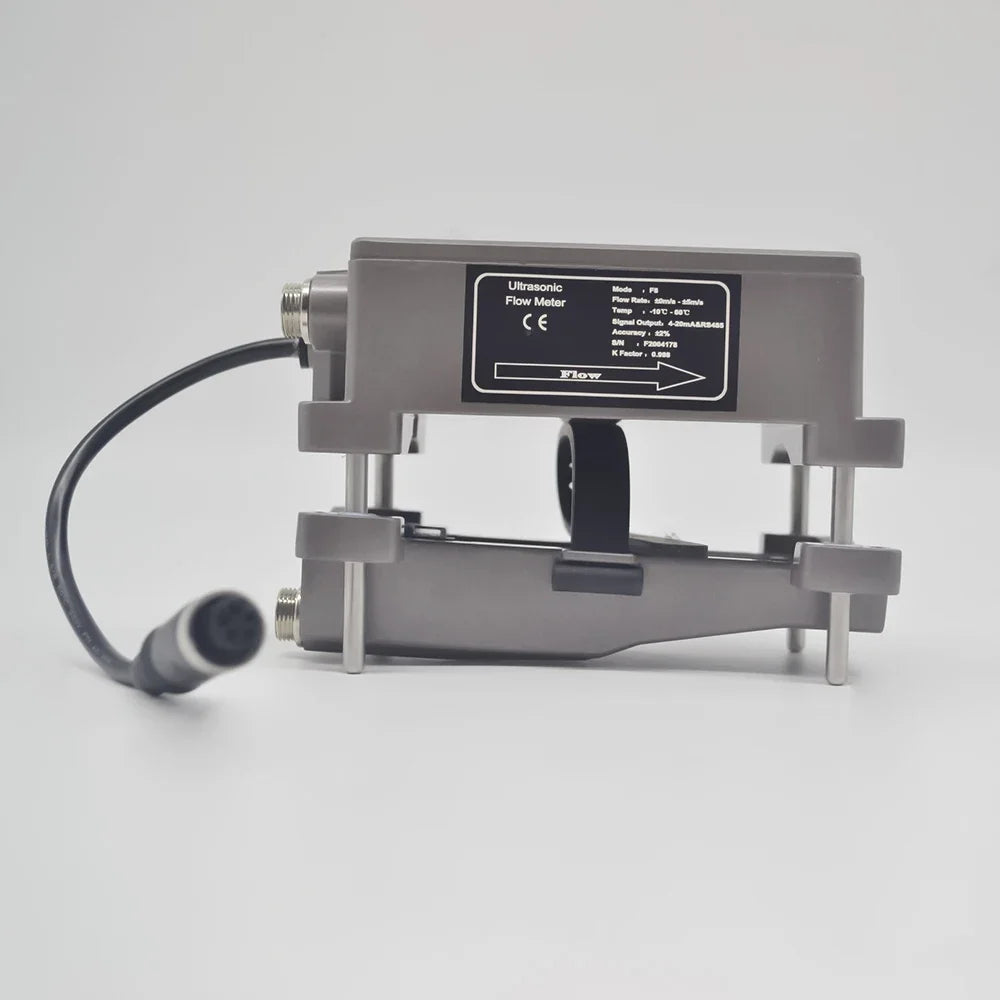

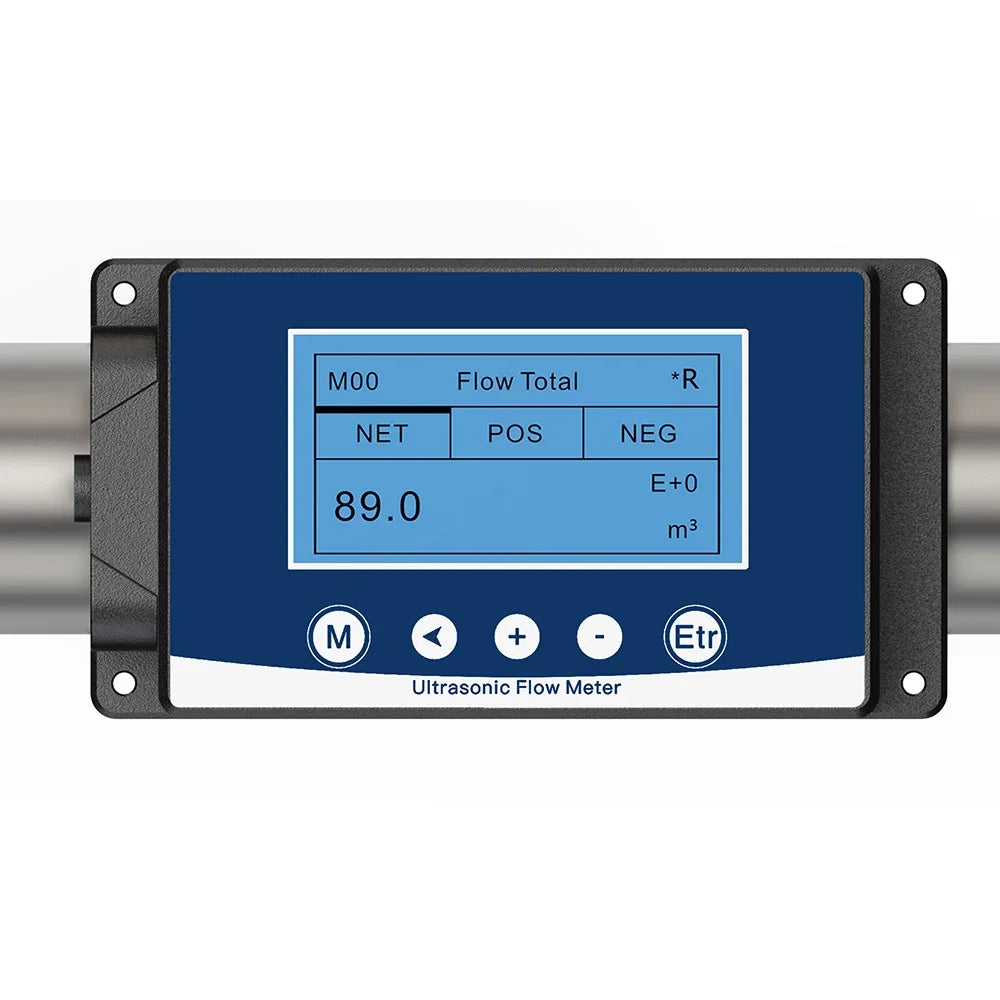

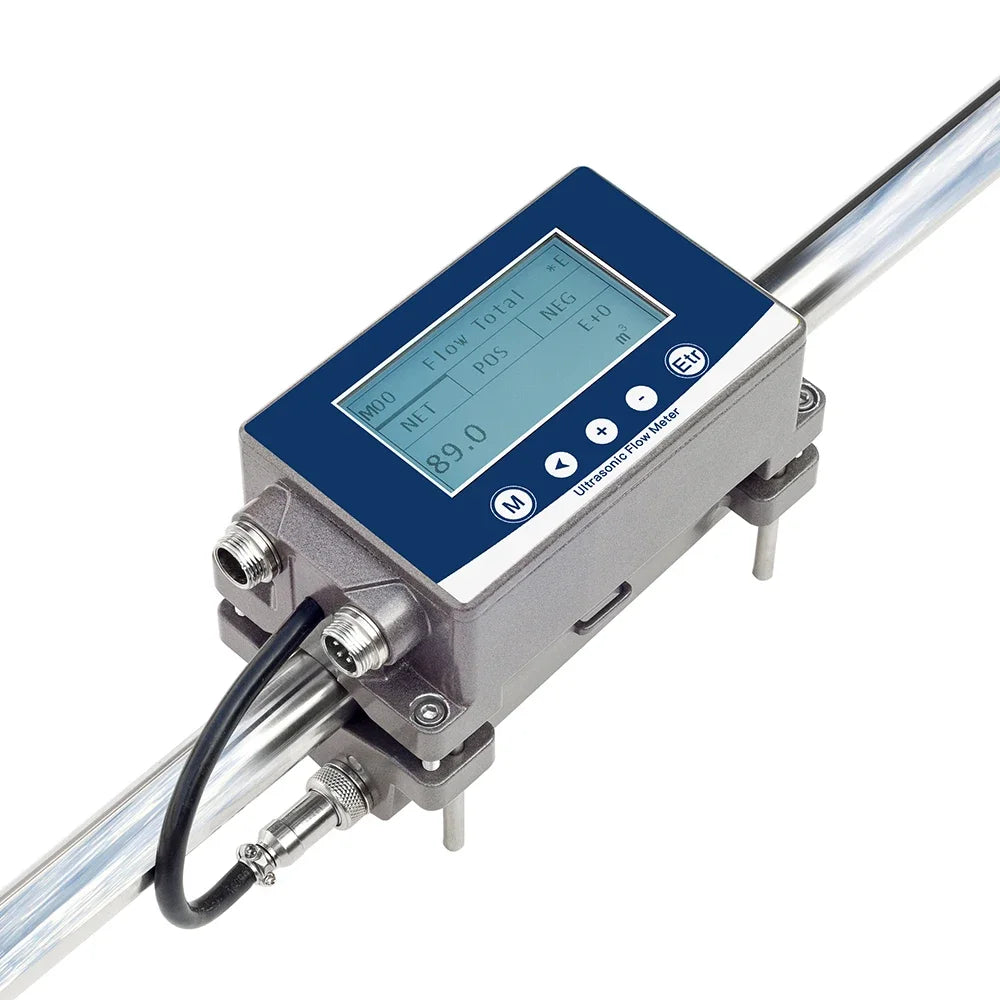

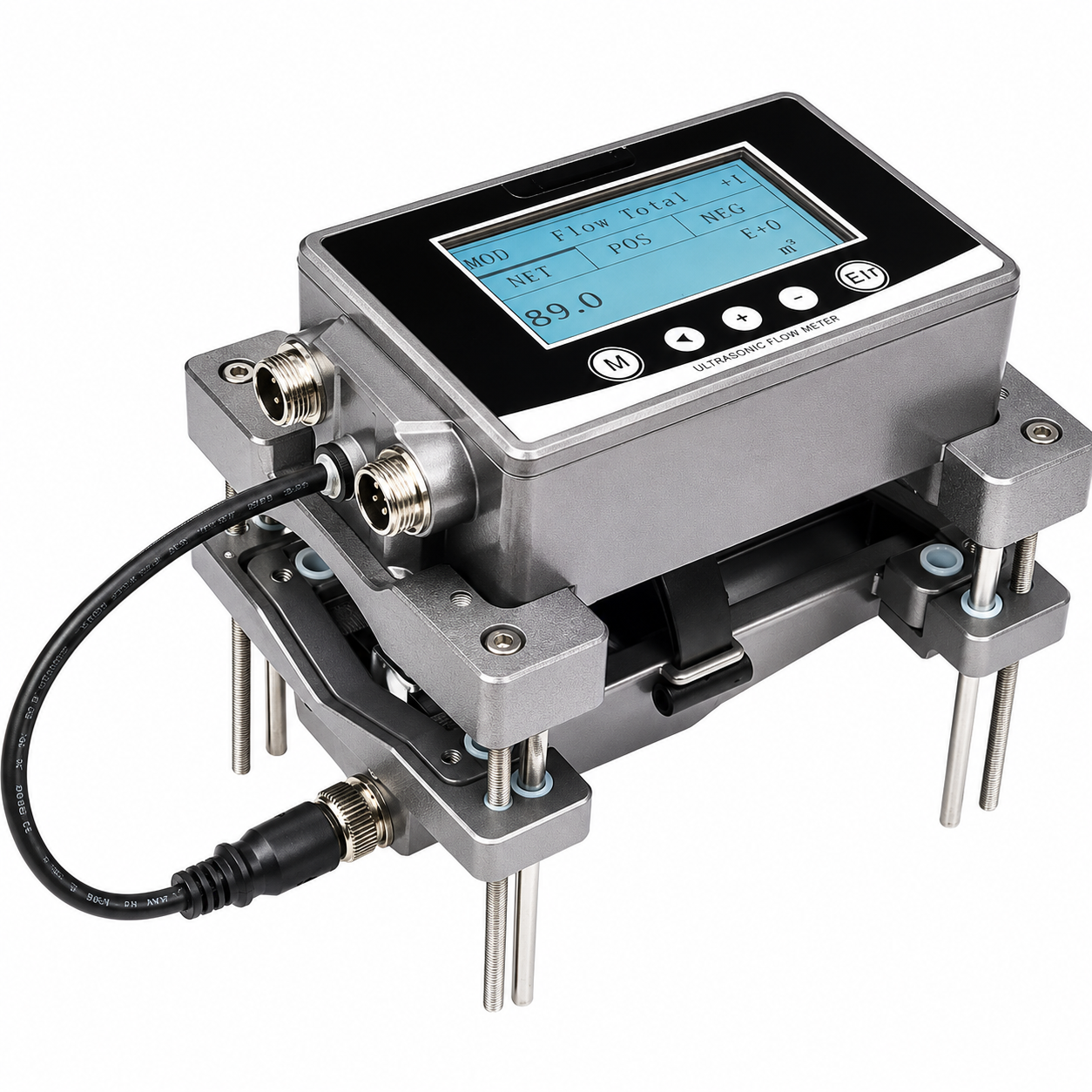

Integrated Clamp-On Ultrasonic Flow Meter – External Water Flow Monitoring System

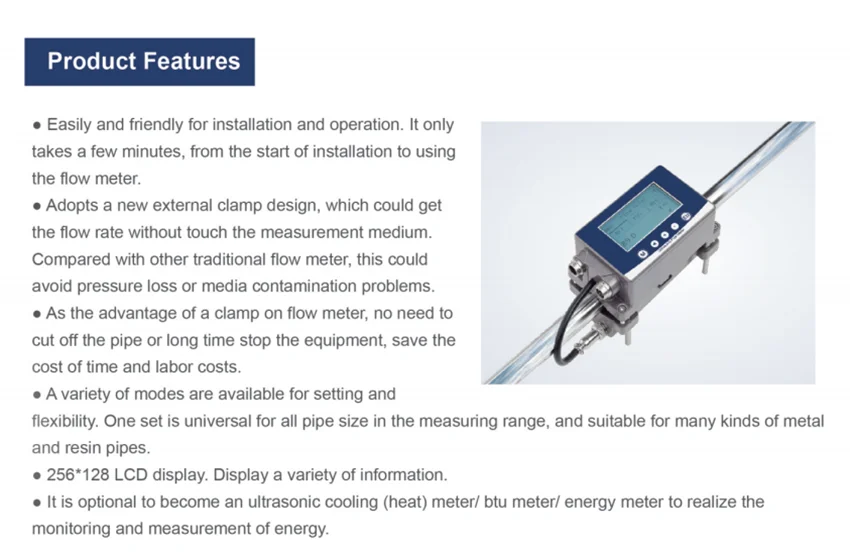

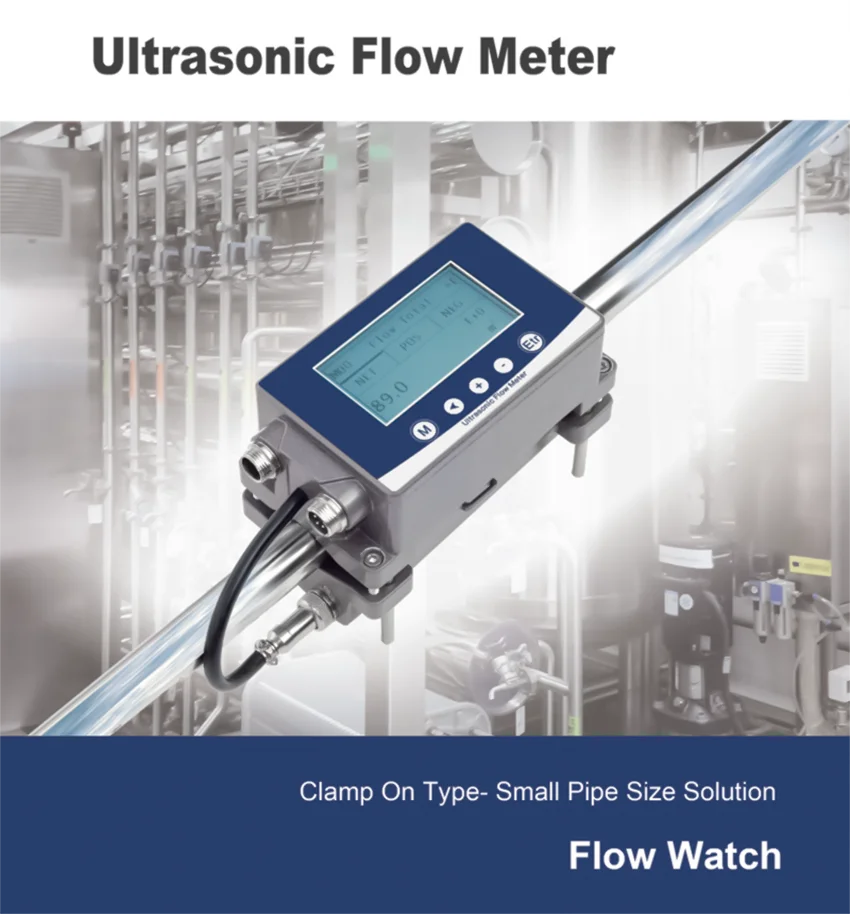

Integrated clamp-on ultrasonic flow meter design.

Transit-time ultrasonic measurement technology.

Non-invasive installation without pipe cutting or process shutdown.

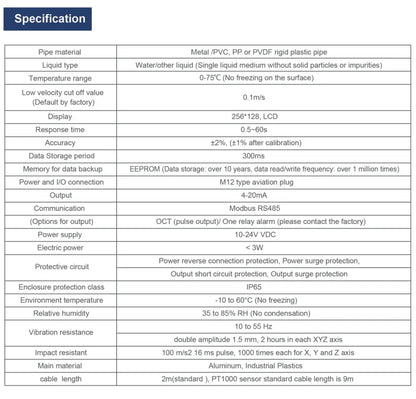

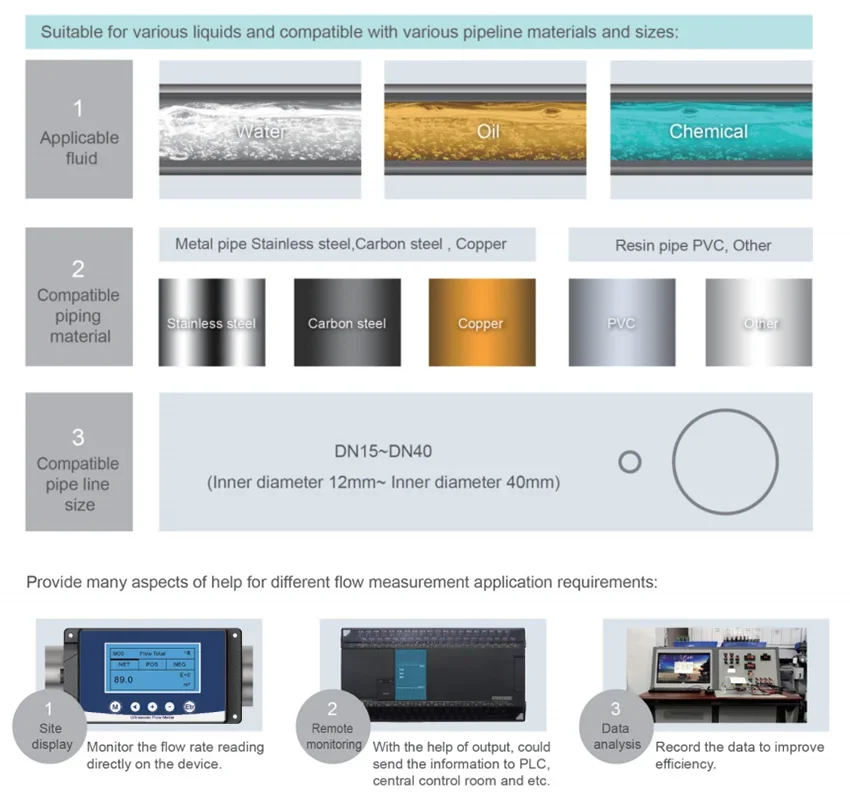

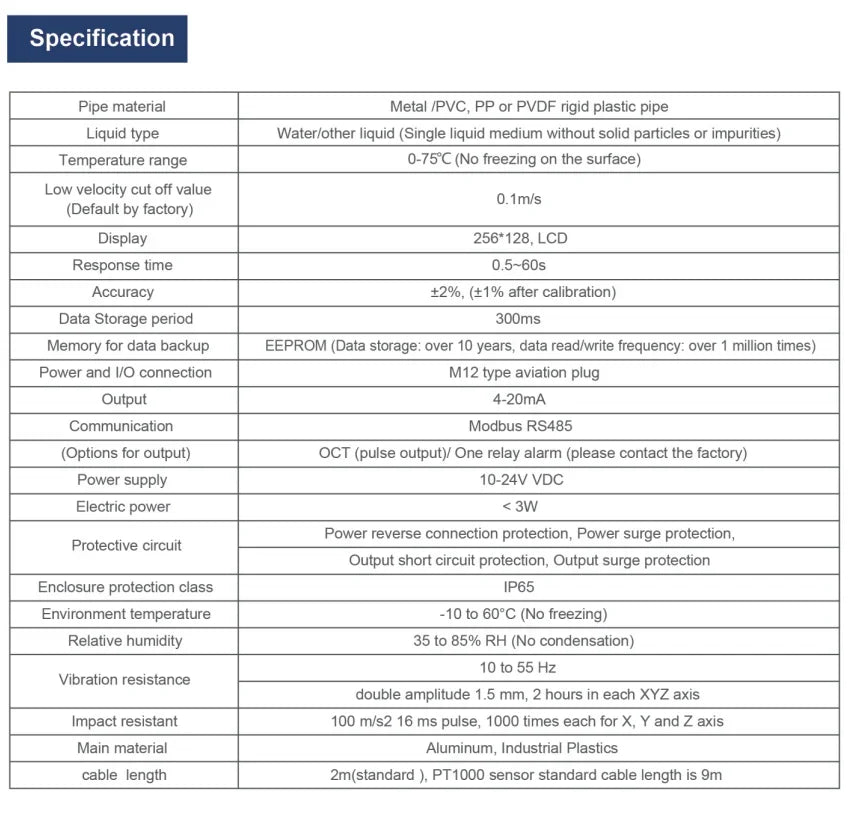

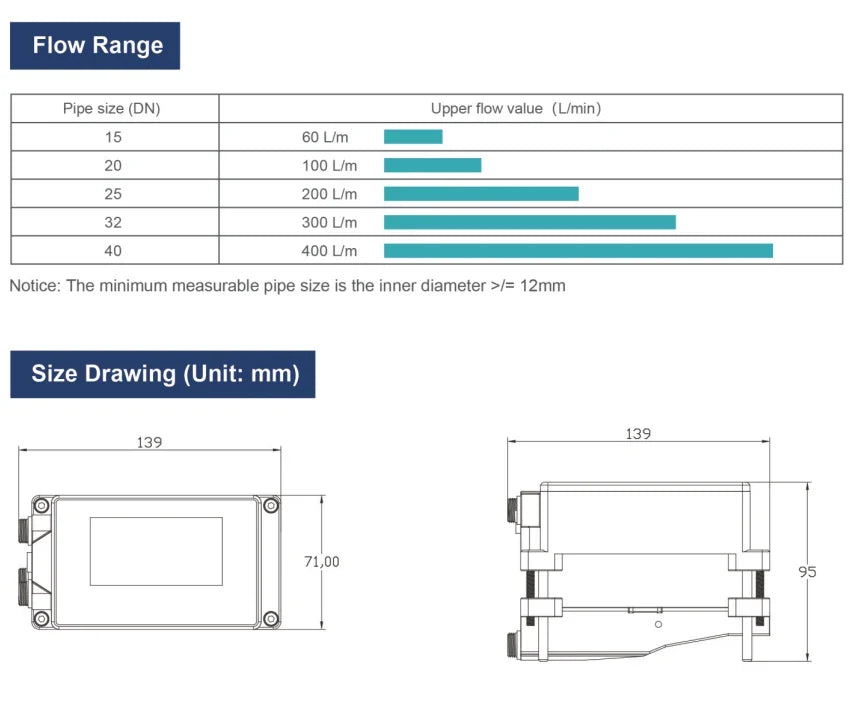

Suitable for pipe sizes DN15 to DN40.

Compatible with stainless steel, copper, PVC, and other pipe materials.

Measurement range: ±0 m/s to ±5 m/s.

Accuracy up to ±2%.

Modbus RS485 communication interface.

4–20 mA analog output.

IP65-rated industrial enclosure.

Operates on 10–24 VDC power supply.

Enhanced bubble and impurity tolerance.

High-speed FPGA signal processing technology.

Suitable for clean liquids and homogeneous fluid applications.

Quick installation and low maintenance requirements.

Continuous real-time flow monitoring for industrial systems.

Industrial-grade electronic housing with IP65 protection.

Designed for indoor and outdoor industrial environments.

Keep sensor mounting surfaces clean and properly secured.

Inspect cables and connectors periodically.

Protect the unit from excessive mechanical impact.

Store in a dry environment when not in service.

Verify calibration according to maintenance schedules.

Clean the enclosure with a soft cloth and non-corrosive cleaning products.
