JZJ5900 Ultrasonic Transducer – PAUT Probe for Corrosion Mapping & Weld Inspection
JZJ5900 Ultrasonic Transducer – PAUT Probe for Corrosion Mapping & Weld Inspection
Regular price
$7,167.95 USD
Regular price
$8,601.95 USD
Sale price
$7,167.95 USD
Taxes included.
Shipping calculated at checkout.
21 in stock

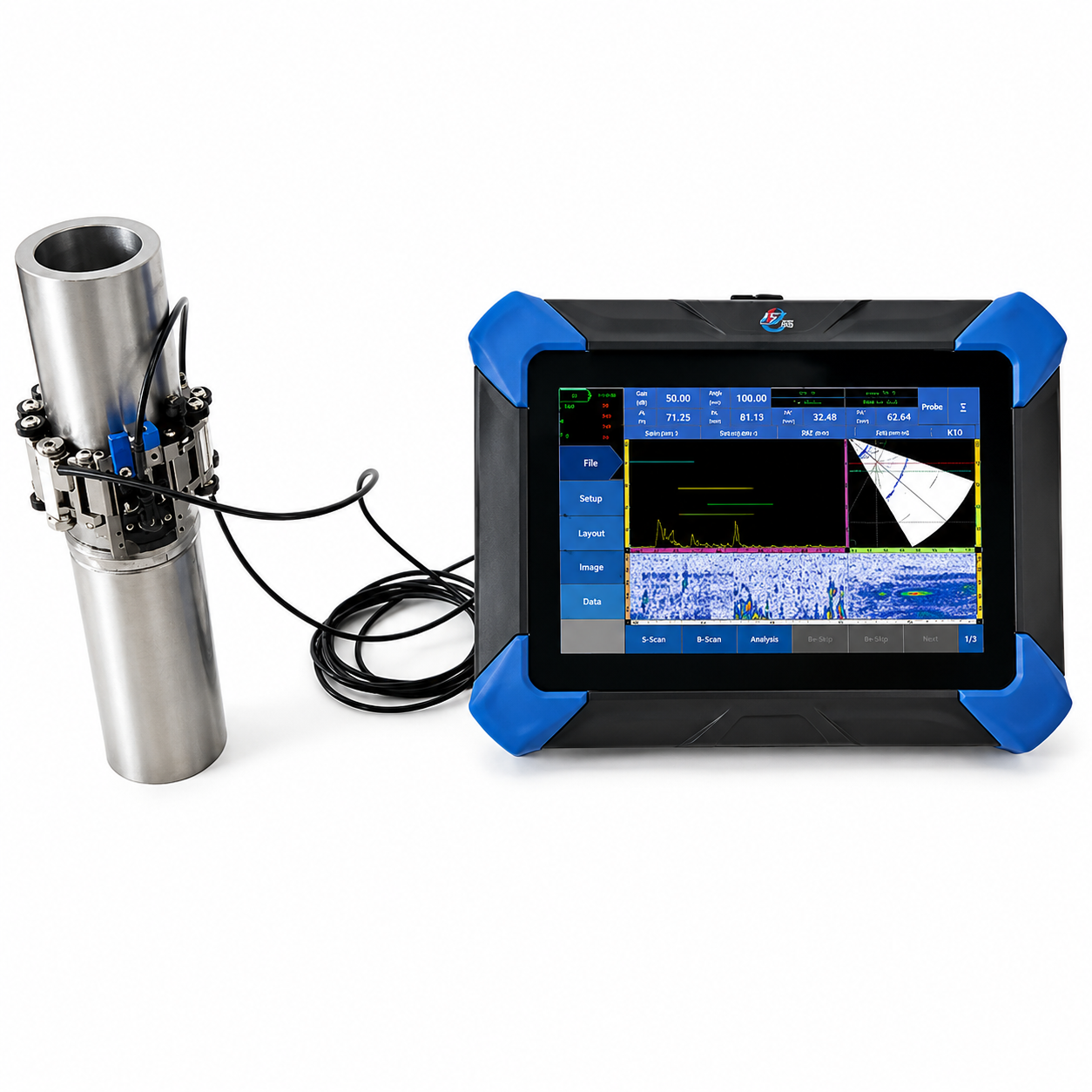

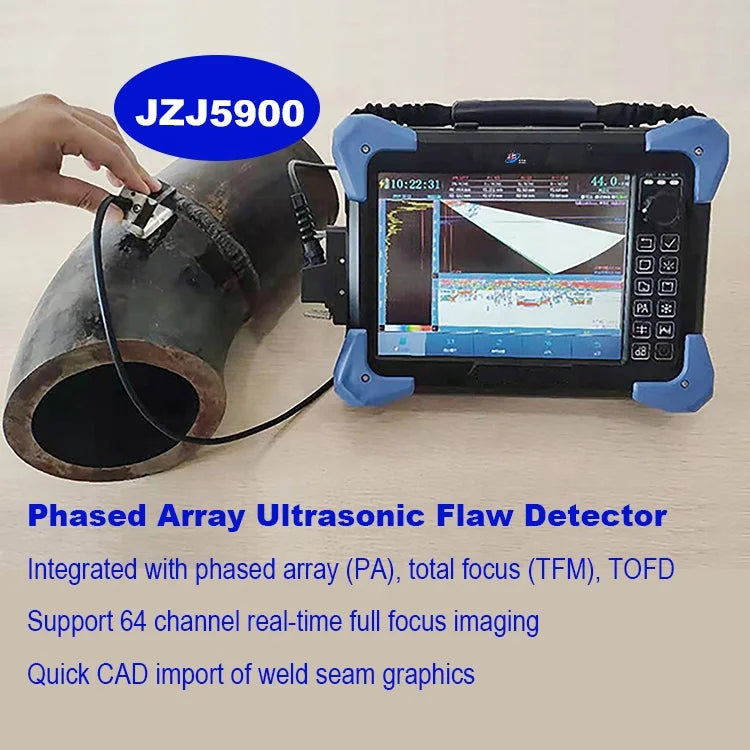

The JZJ5900 Phased Array Ultrasonic Flaw Detector is a high-performance PAUT inspection system engineered for advanced weld evaluation, corrosion assessment, and defect detection in critical industrial assets. Combining Phased Array, TOFD, and conventional ultrasonic testing in a single portable platform, it delivers high-resolution imaging and reliable inspection results for Oil & Gas, petrochemical, power generation, and manufacturing applications.
Couldn't load pickup availability
Product features
Product features
Advanced PAUT, TOFD, and conventional UT inspection capabilities
32:64 phased array channel configuration
Dual-channel TOFD operation

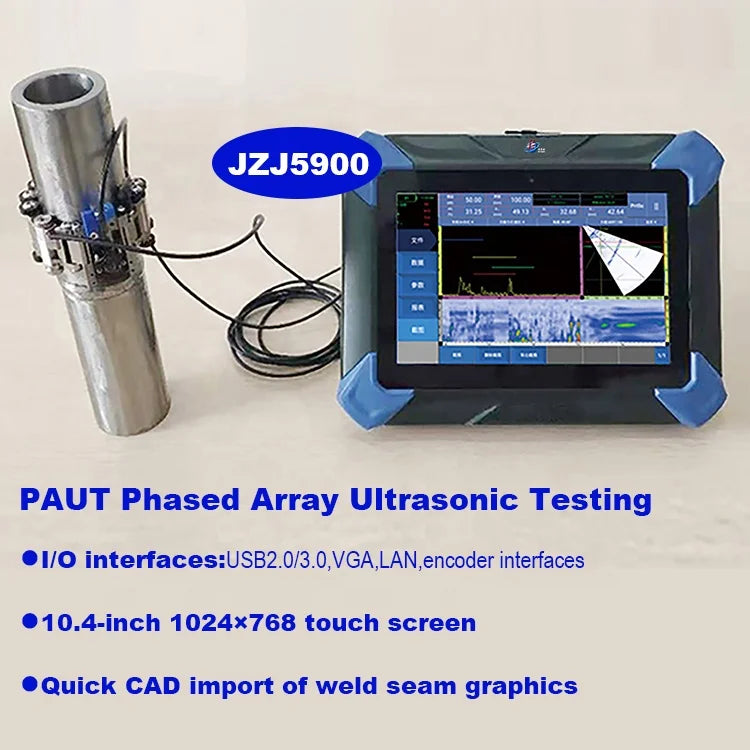

10.4-inch HD color touchscreen (1024 × 768)
A/B/C/D/S/TOFD/3D imaging modes
Detection range up to 1000 mm
Frequency bandwidth: 0.5 MHz – 20 MHz
Analog gain: 80 dB + Digital gain: 36 dB
Pulse width adjustment from 50 ns to 1280 ns
TCG and ACG automatic calibration
Encoder and time-base triggering
High-capacity lithium battery with external power adapter
IP65-rated industrial enclosure
256 GB data storage capacity
Designed for weld inspection, corrosion mapping, thin-wall pipe evaluation, and advanced NDT applications
3-year warranty support
Materials and care
Materials and care
- Rugged industrial housing designed for field and plant environments
- Keep connectors, probes, and ports clean and protected when not in use
- Store in a dry, temperature-controlled environment
- Use only approved PAUT and TOFD probes and accessories
- Periodically calibrate the system according to applicable inspection procedures
- Clean the touchscreen with a non-abrasive microfiber cloth
- Recharge the battery regularly during long-term storage
