MT660 Ultrasonic Thickness Gauge – Through-Coating Corrosion & Wall Thickness Inspection Meter

✔ Dual Measurement Modes: Pulse-Echo (P-E) and Echo-Echo (E-E)

✔ Through-Coating Measurement Capability

✔ Measurement Range:

•
  P-E Mode: 0.65 mm to 600 mm

•
  E-E Mode: 3 mm to 100 mm


✔ High Resolution:

•
  0.1 mm

•
  0.01 mm

•
  0.001 mm selectable


✔ Accuracy:

•
  ±0.04 mm (<10 mm)

•
  ±0.4% of reading (>10 mm)


✔ Color TFT Display (320 × 240) with adjustable backlight

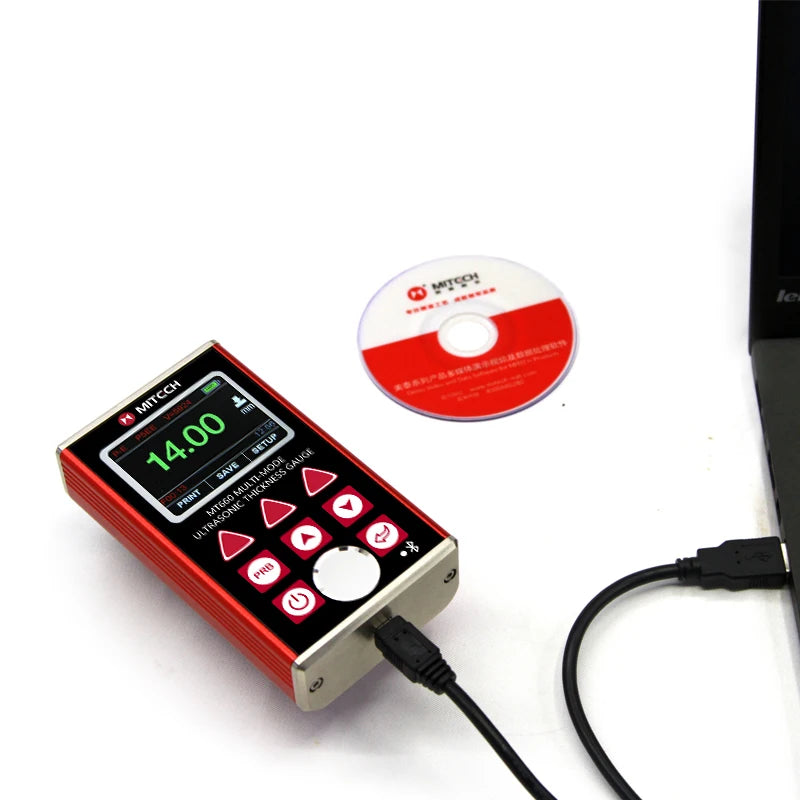

✔ Bluetooth and USB 2.0 communication

✔ Wireless report printing capability (optional Bluetooth printer)

✔ Internal memory:

•
  100 groups

•
  Up to 100 readings per group


✔ Scan Mode for rapid corrosion surveys

✔ Voice broadcast function

✔ Automatic probe calibration and error correction

✔ Sound velocity range:

•
  1000 to 9999 m/s


✔ Suitable for:

•
  Steel

•
  Stainless steel

•
  Aluminum

•
  Cast iron

•
  Plastics

•
  Glass

•
  Ceramics

•
  Composite materials


✔ Optional probes available for:

•
  Thin wall pipes

•
  High-temperature inspection

•
  Thick materials

•
  Through-coating measurement


✔ Rugged extruded aluminum housing for industrial environments

✔ Operating temperature:

-20°C to +60°C

Constructed with a durable extruded aluminum alloy housing engineered for industrial field use. Store in a dry environment, clean the probe after use, and apply approved ultrasonic couplant during measurements. Remove batteries during long-term storage and protect the display from excessive impact and contamination.
