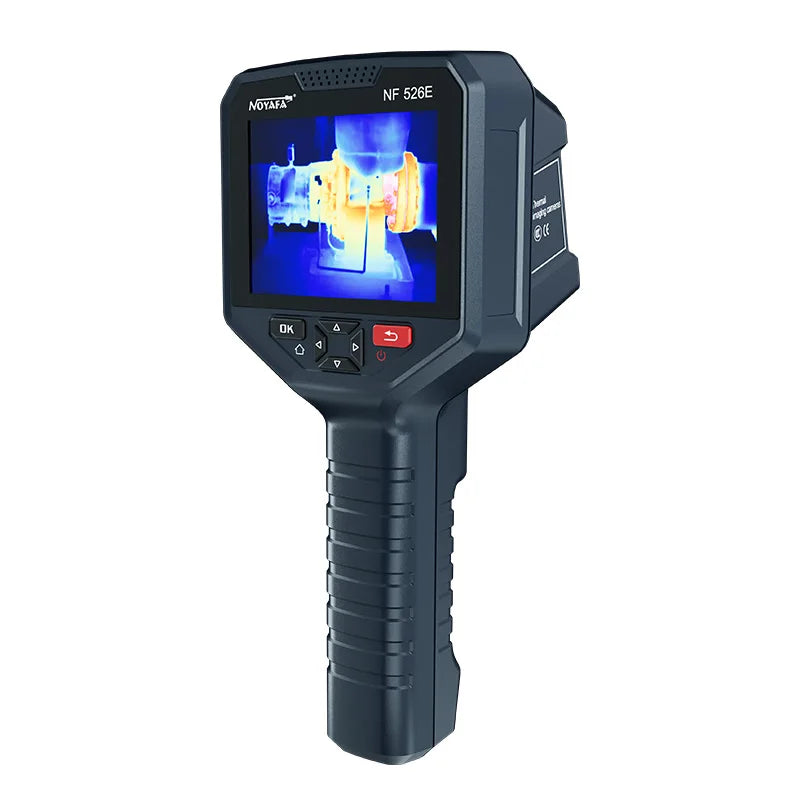

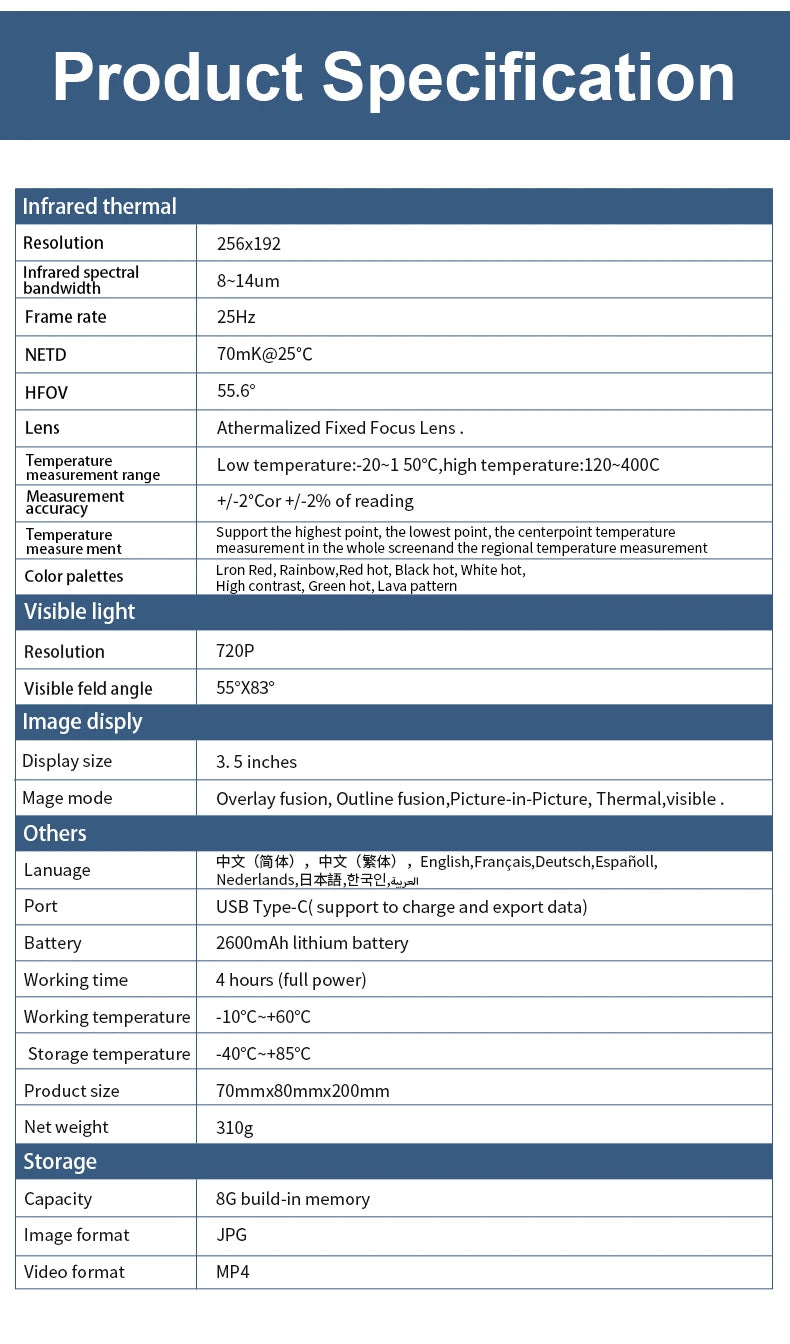

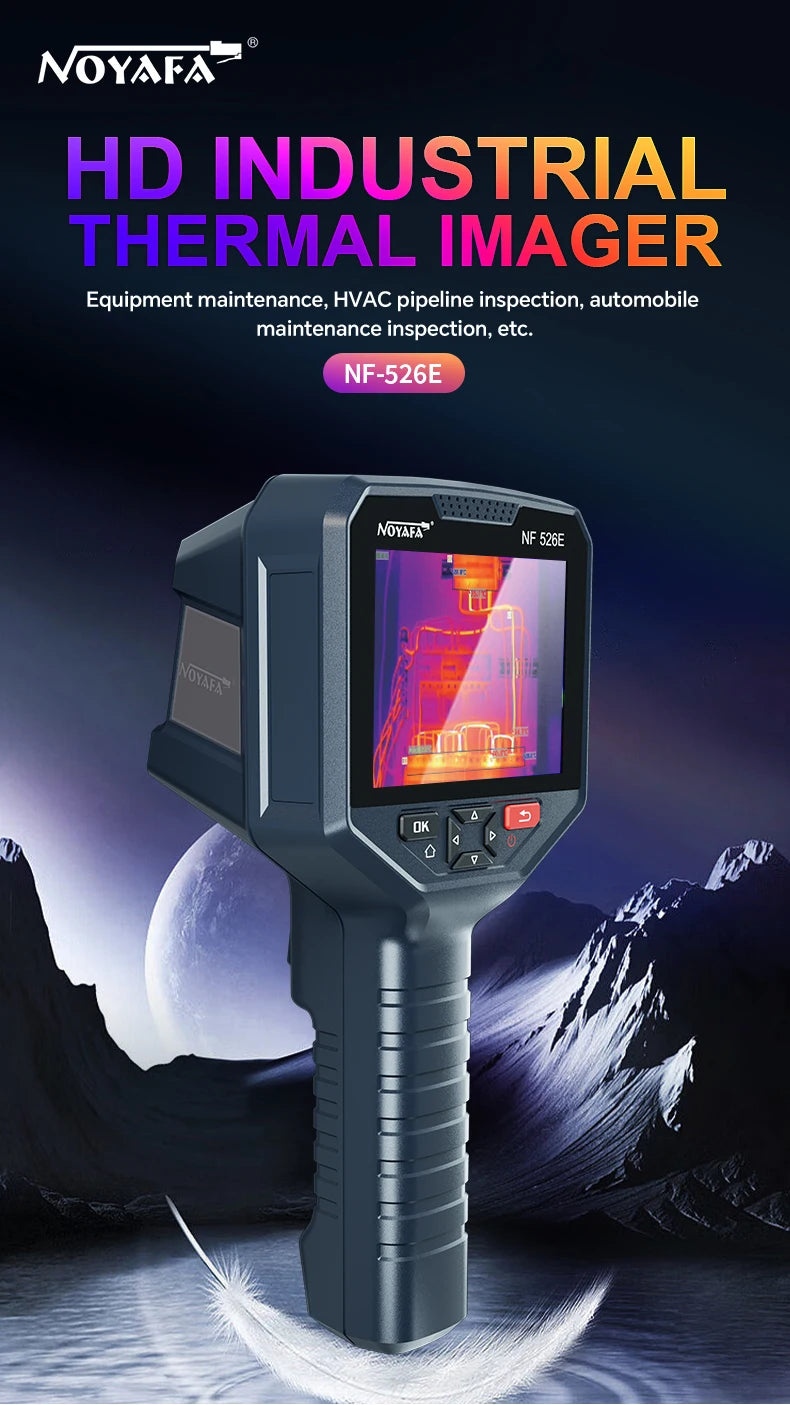

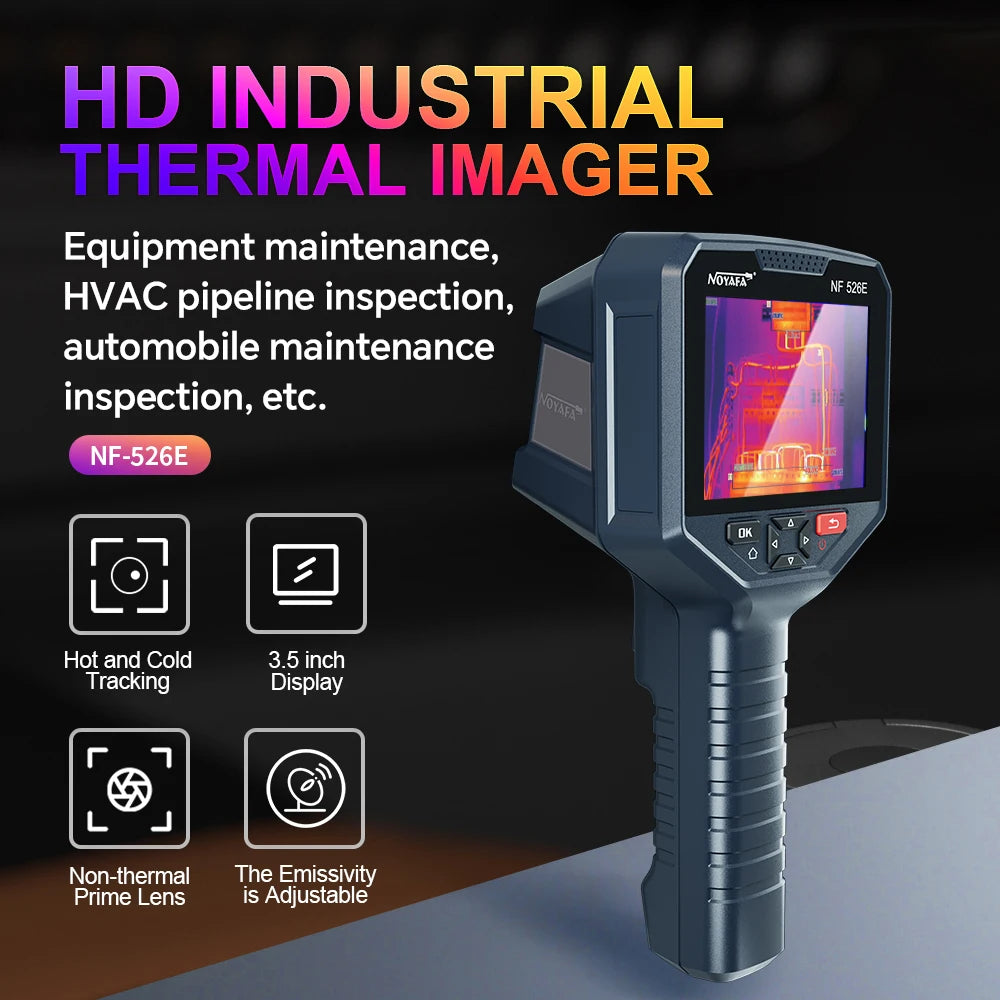

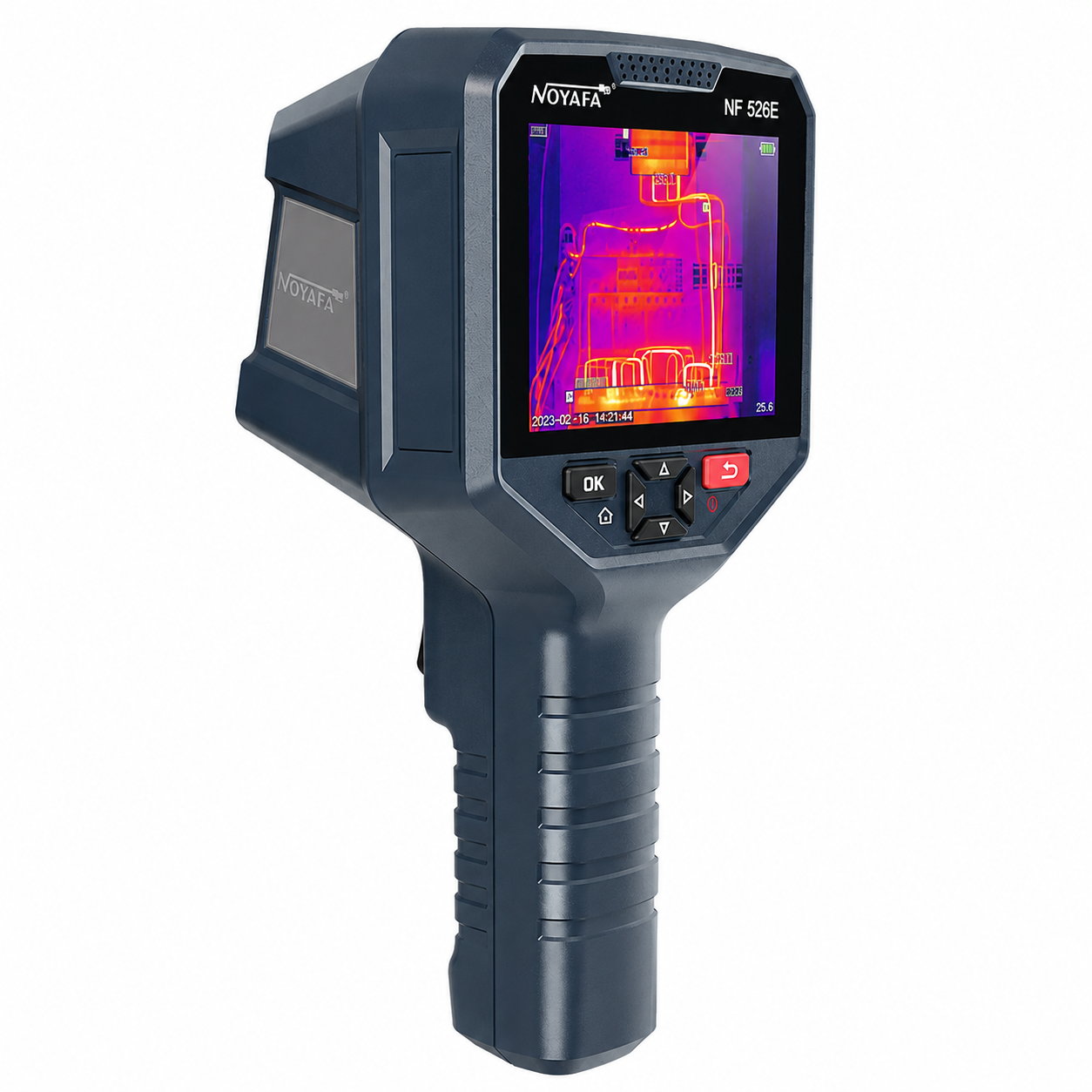

Industrial Thermal Imaging Camera 256×192 – 25Hz Infrared Inspection Camera with 720P Visual Fusion

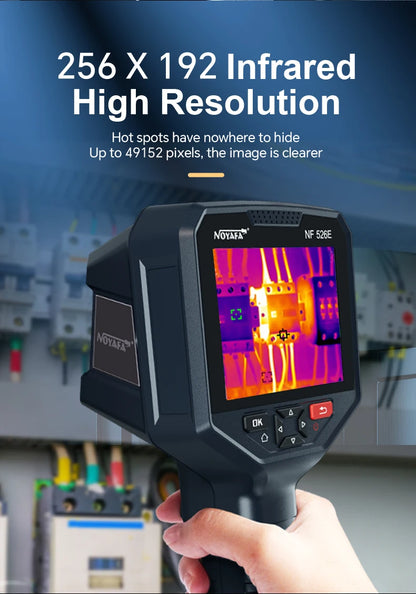

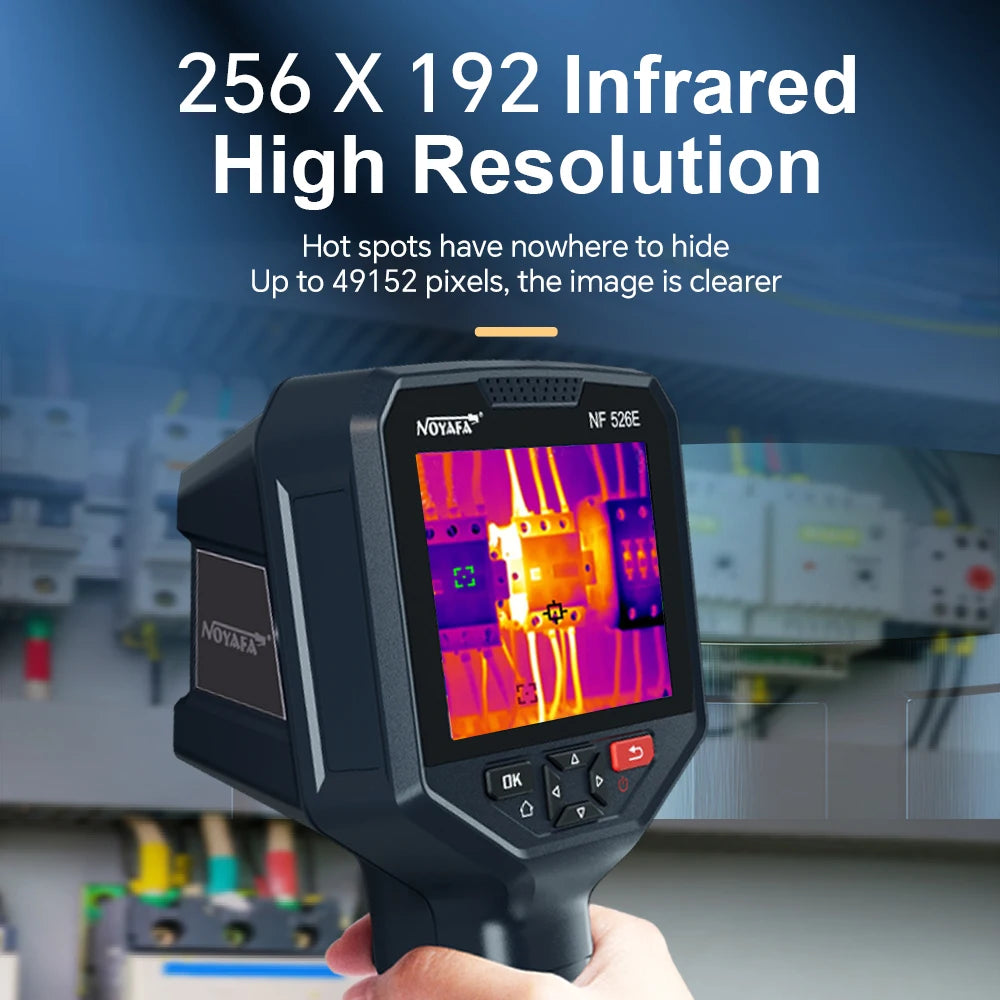

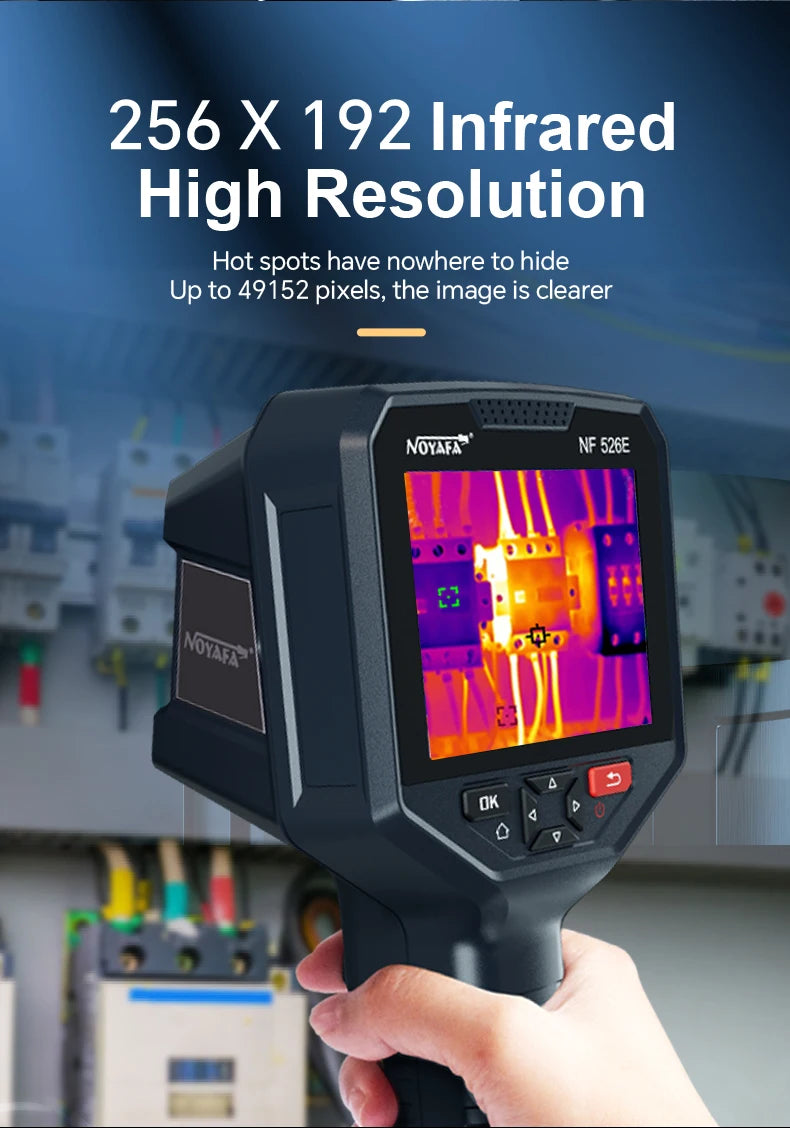

• 256×192 infrared thermal resolution for detailed temperature analysis.

•
  25Hz refresh rate for smooth real-time thermal imaging.

•

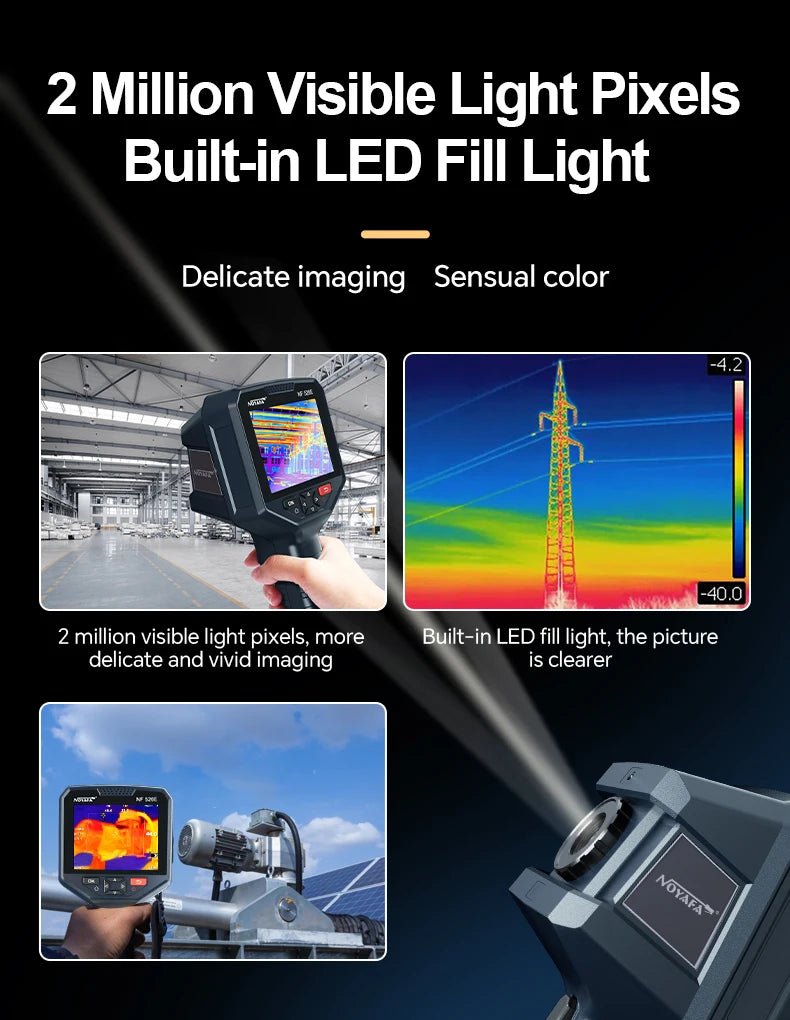

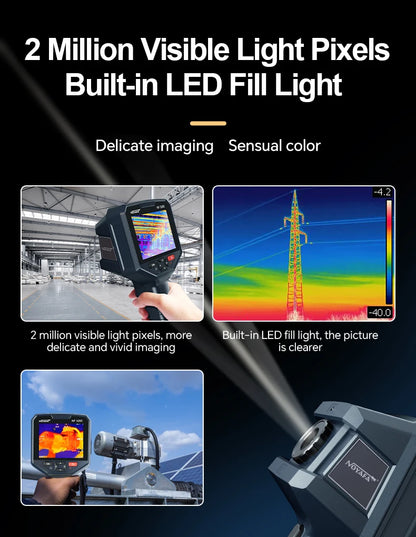

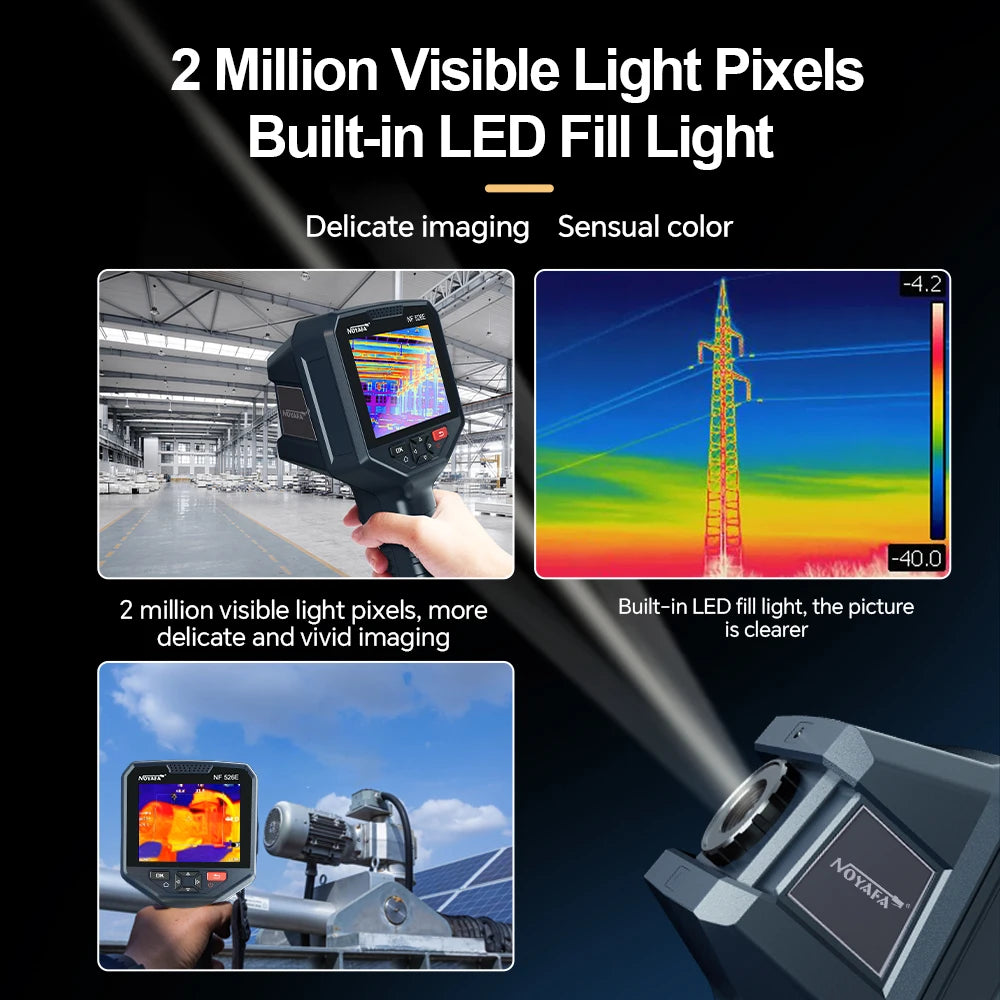

  720P visible-light camera with thermal fusion modes.

•

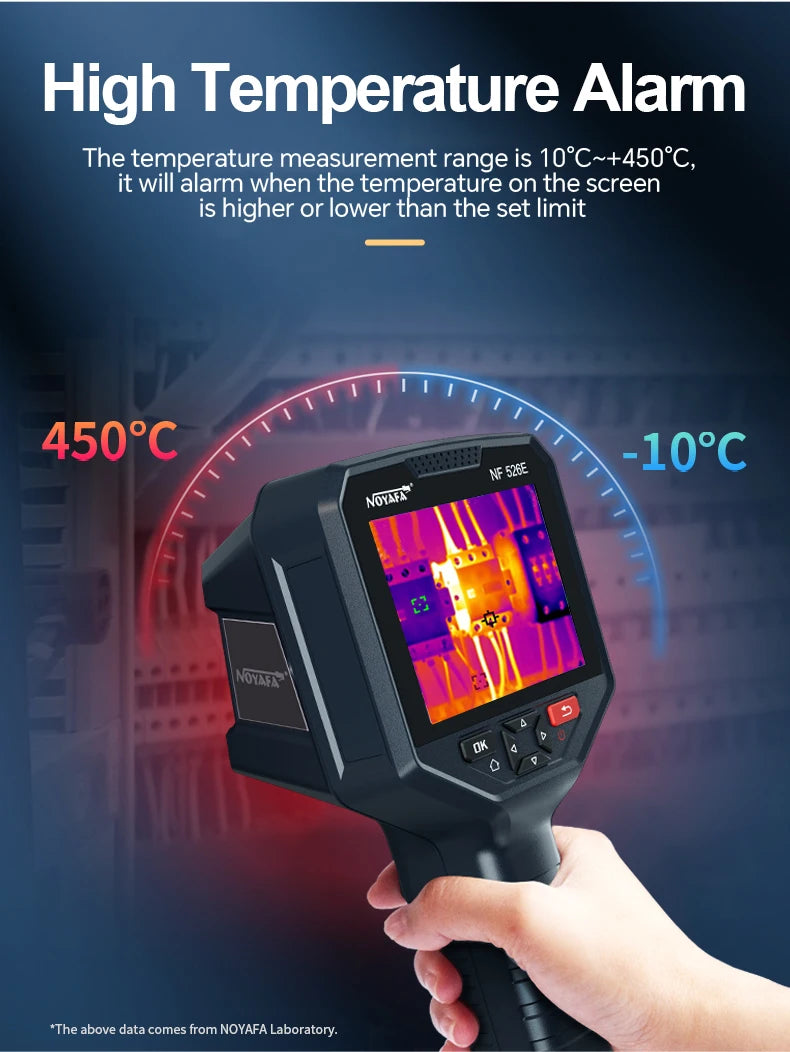

  Temperature measurement range from -20°C to 400°C.

•
  High-accuracy measurement of ±2°C or ±2% of reading.

•

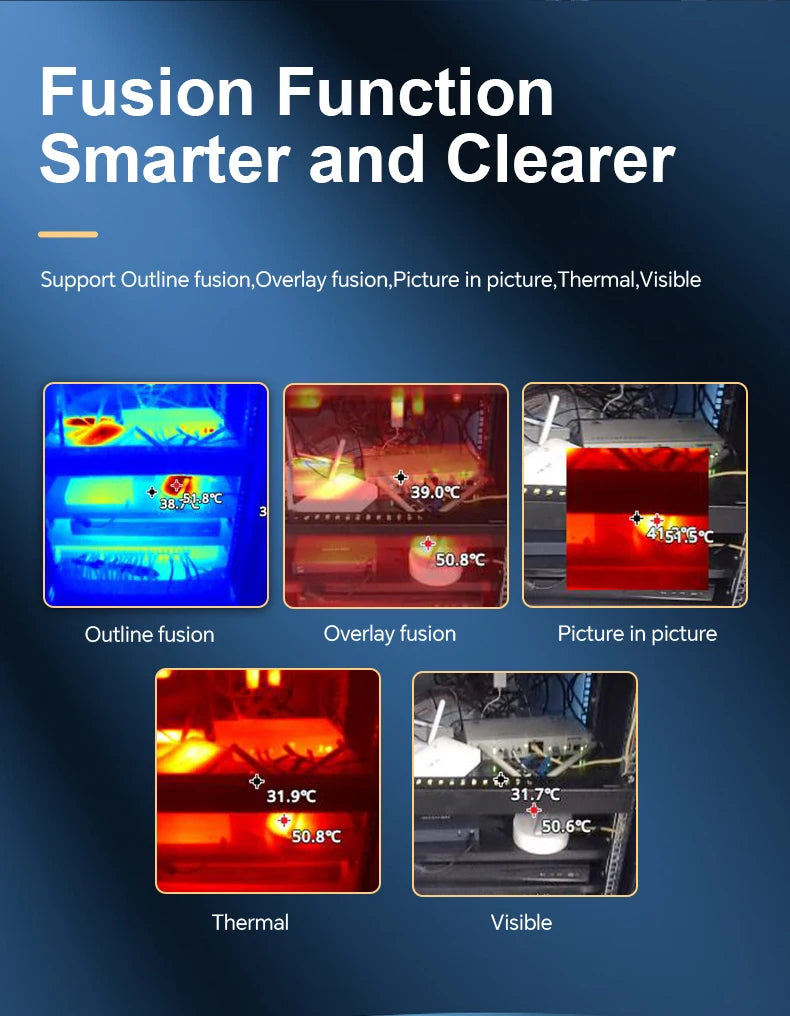

  Multiple display modes including Thermal, Visible, Picture-in-Picture, Overlay Fusion, and Outline Fusion.

•

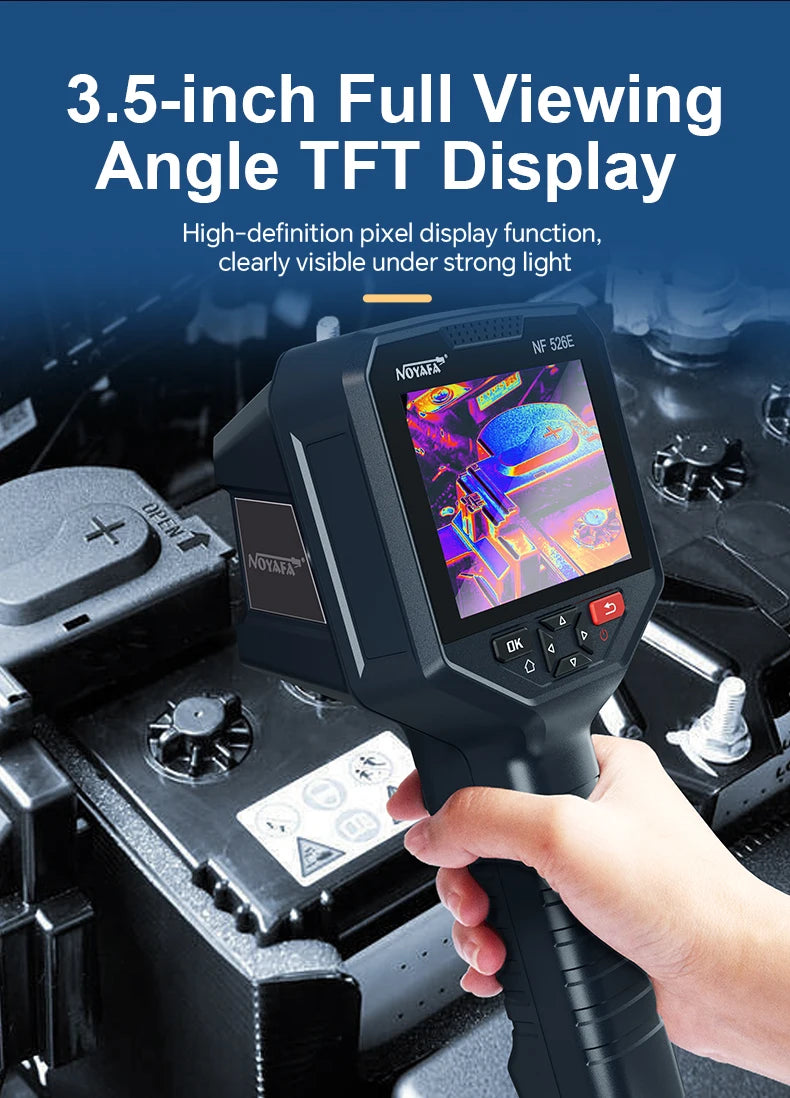

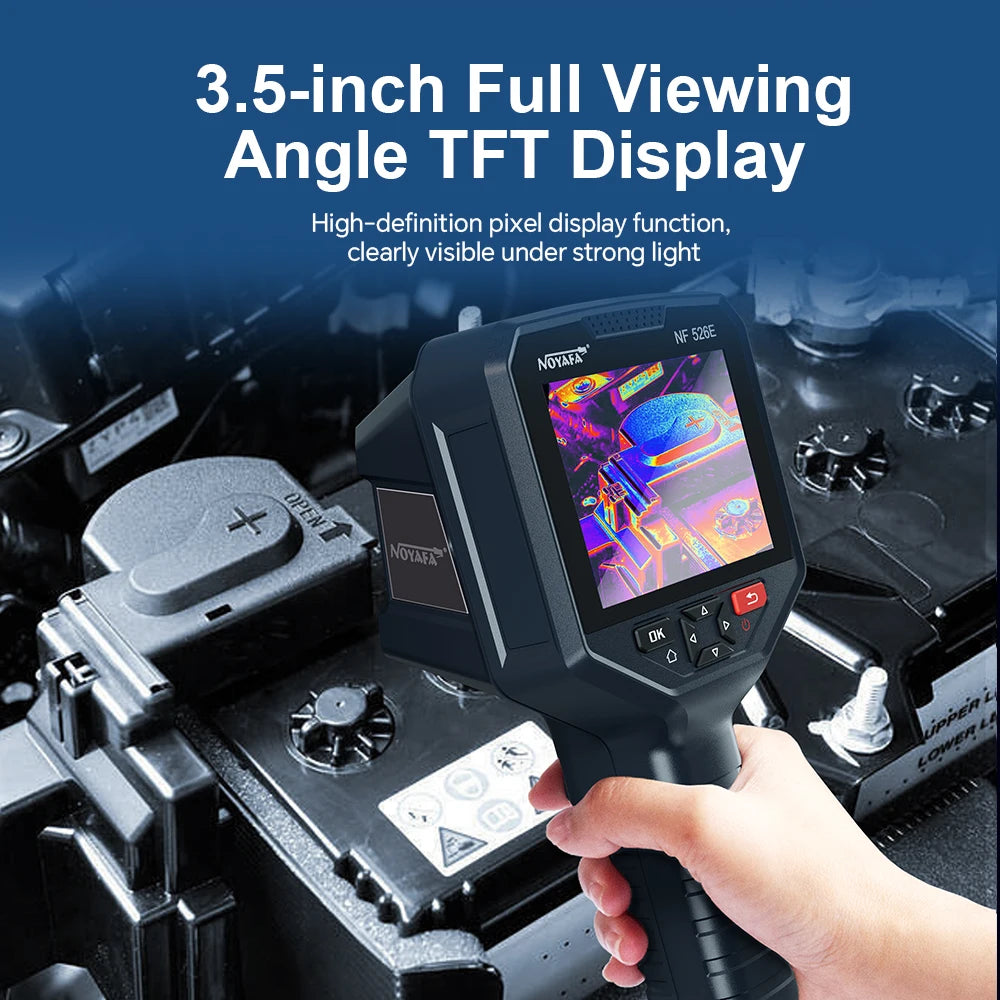

  3.5-inch color display for clear image visualization.

•

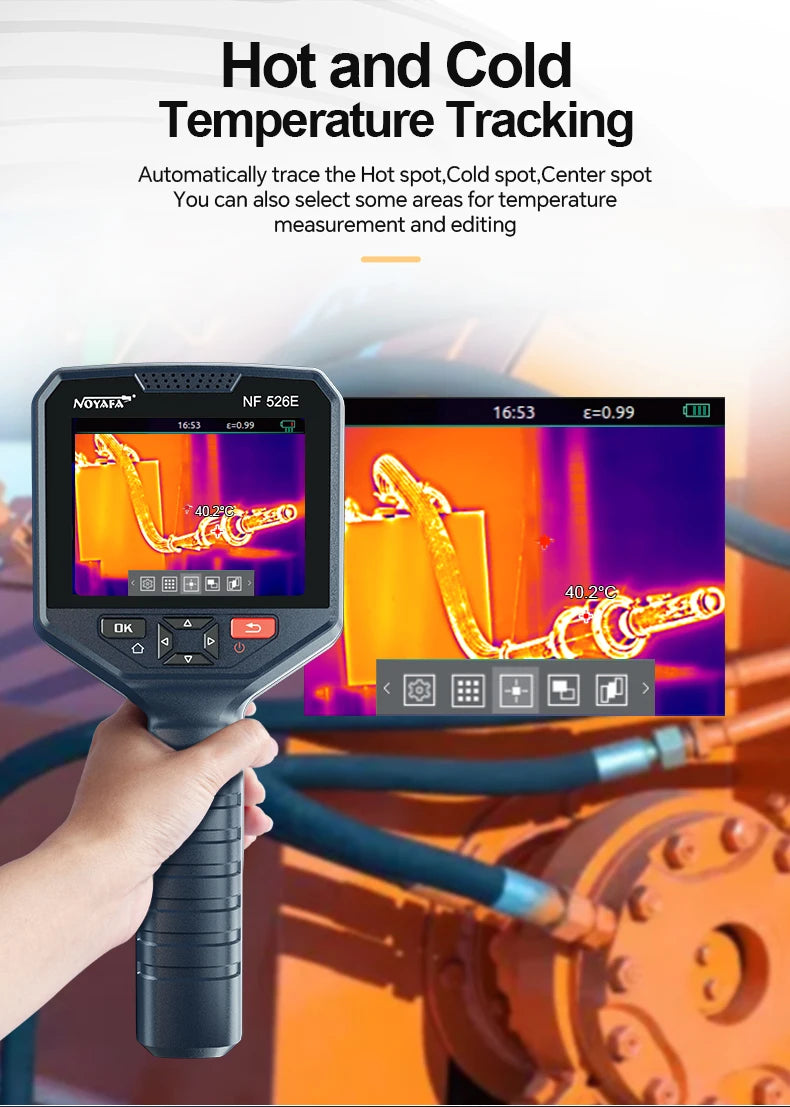

  Supports hot spot, cold spot, center point, and area temperature analysis.

•

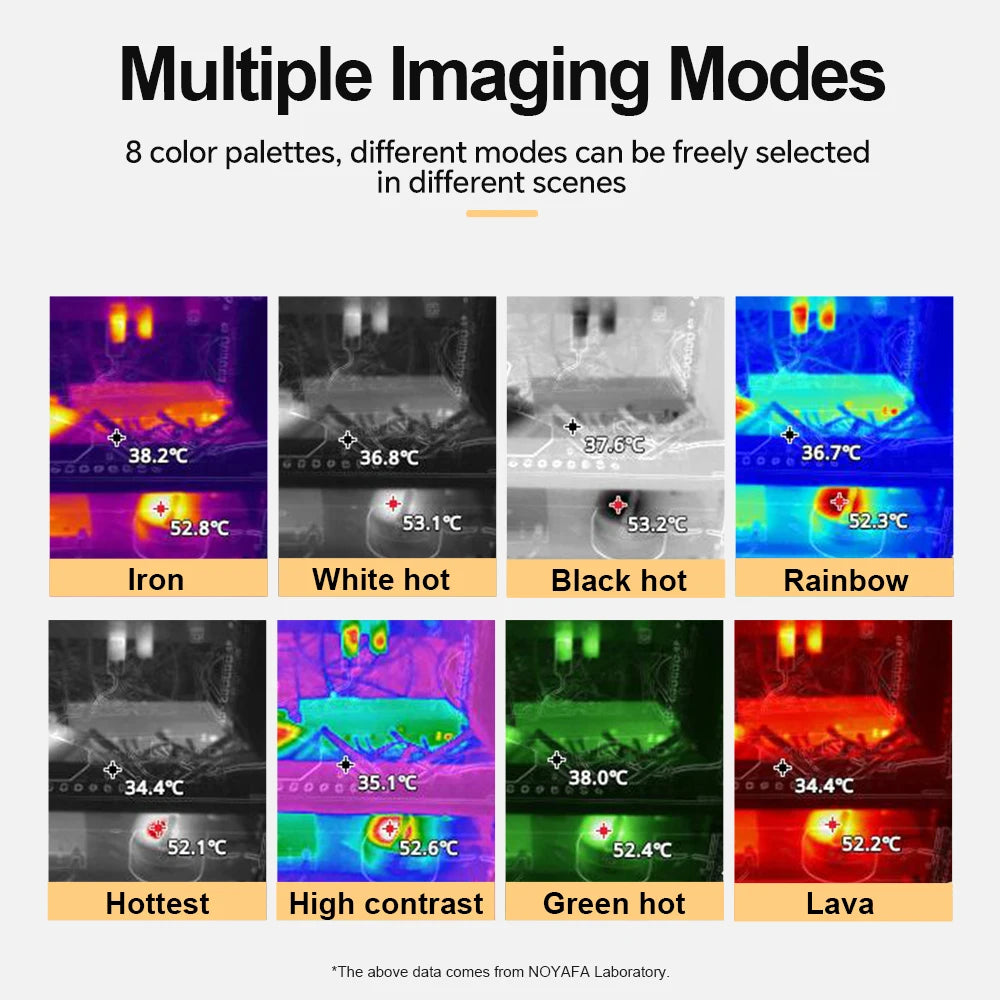

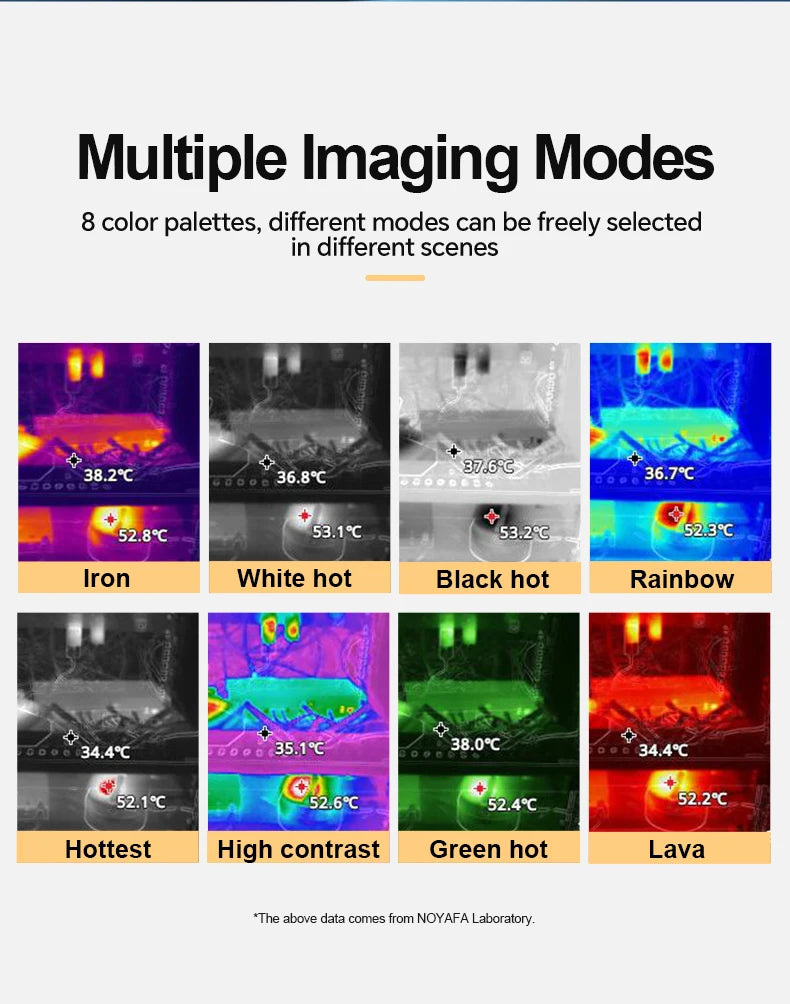

  Multiple color palettes for enhanced fault detection.

•

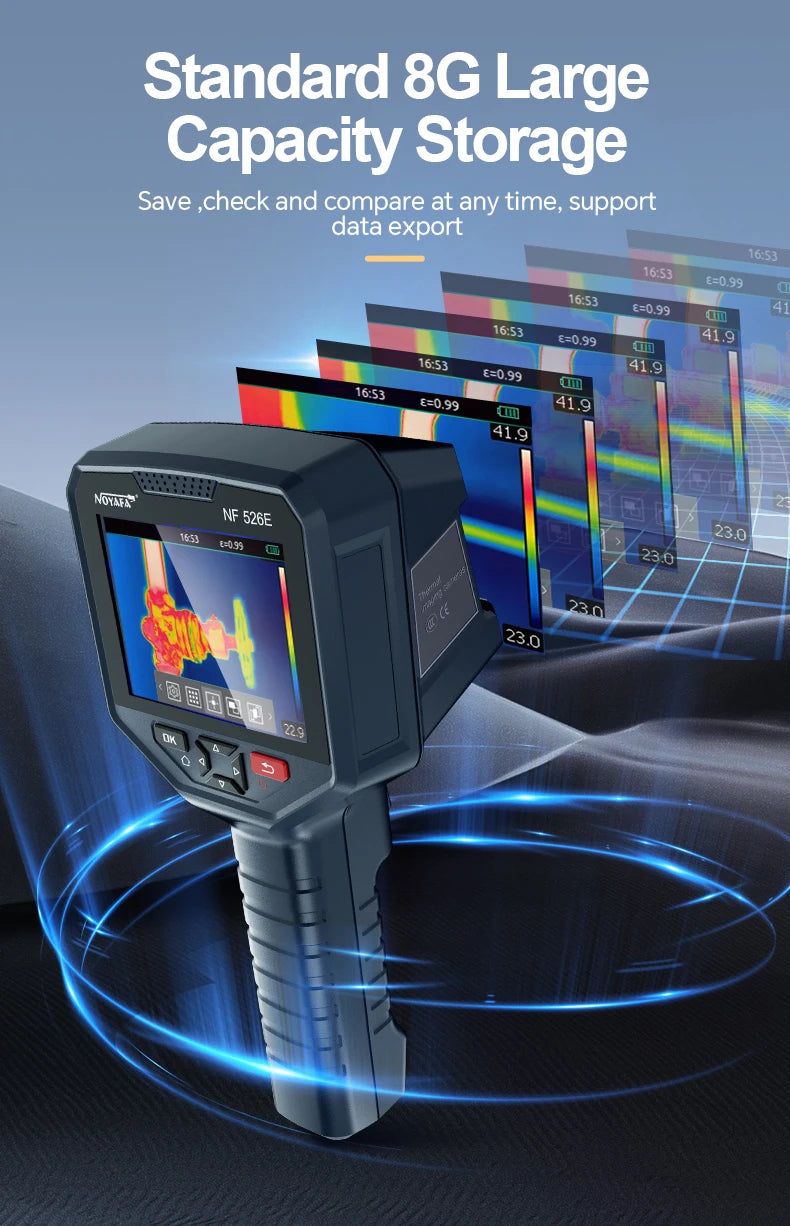

  Built-in 8GB memory for image and video storage.

•

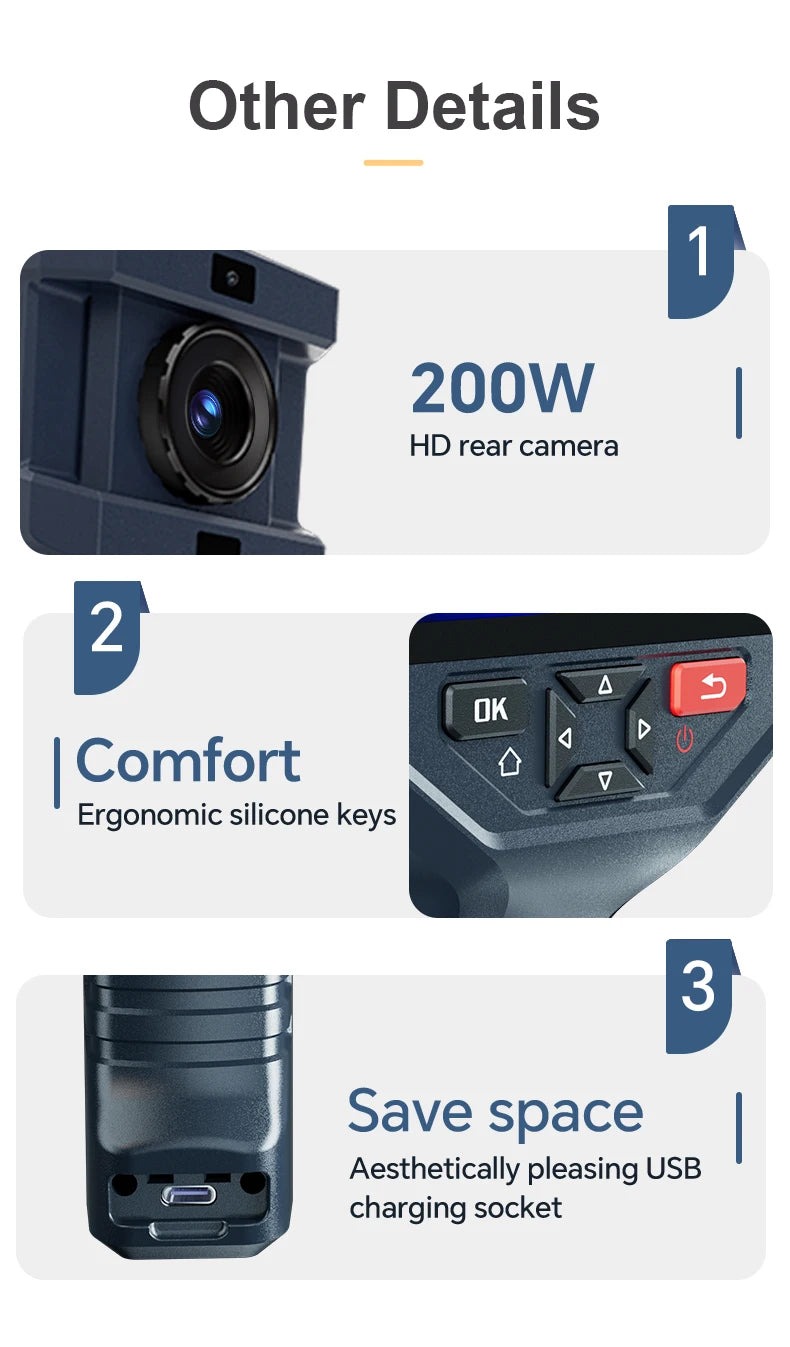

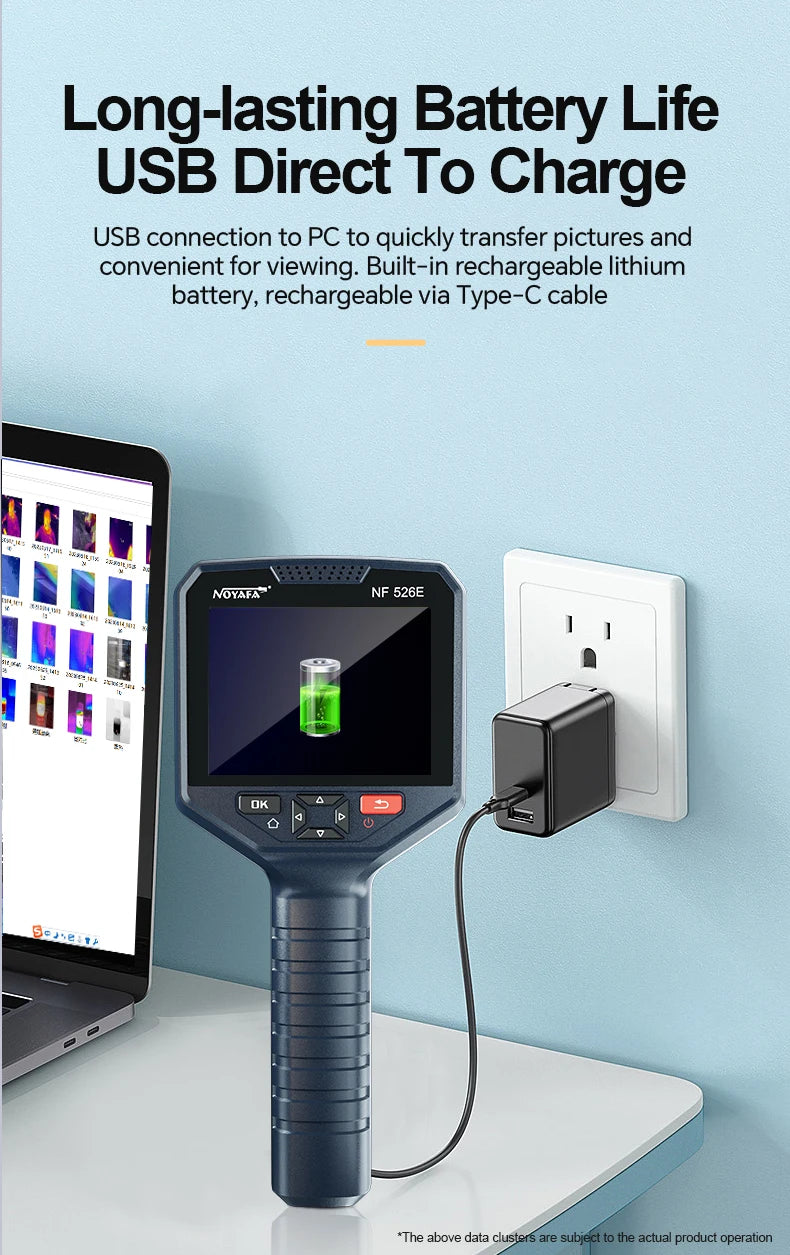

  USB Type-C interface for charging and data transfer.

•
  Lightweight handheld design weighing only 310g.

•
  Suitable for electrical inspections, mechanical maintenance, HVAC diagnostics, process monitoring, and industrial troubleshooting.

Durable industrial-grade housing designed for field use.

Store in a dry environment between -40°C and 85°C.

Clean the lens using a soft microfiber cloth only.

Avoid direct exposure to water, corrosive chemicals, and excessive impact.

Recharge the lithium battery regularly when not in use for extended periods.

Perform periodic calibration according to operational requirements.
