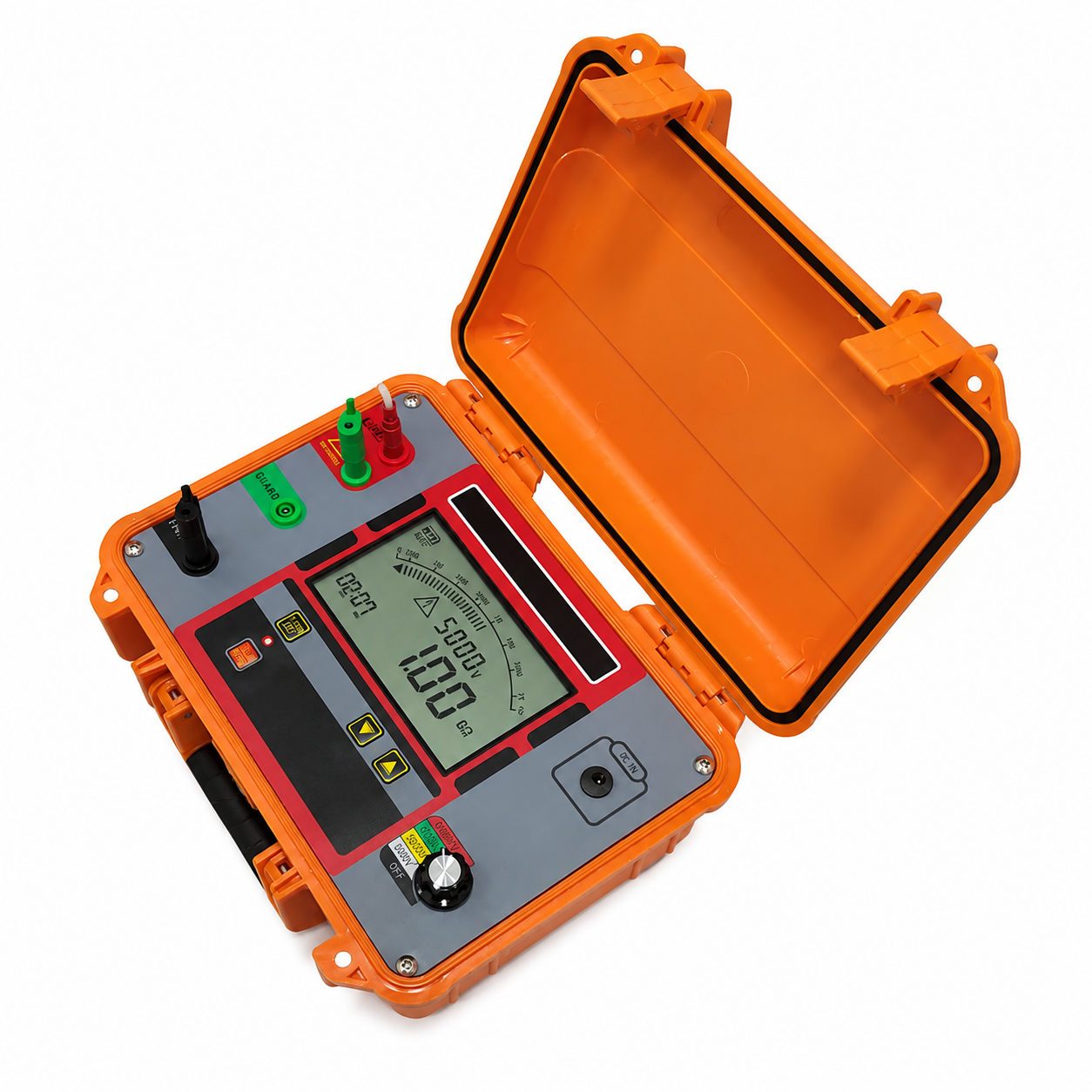

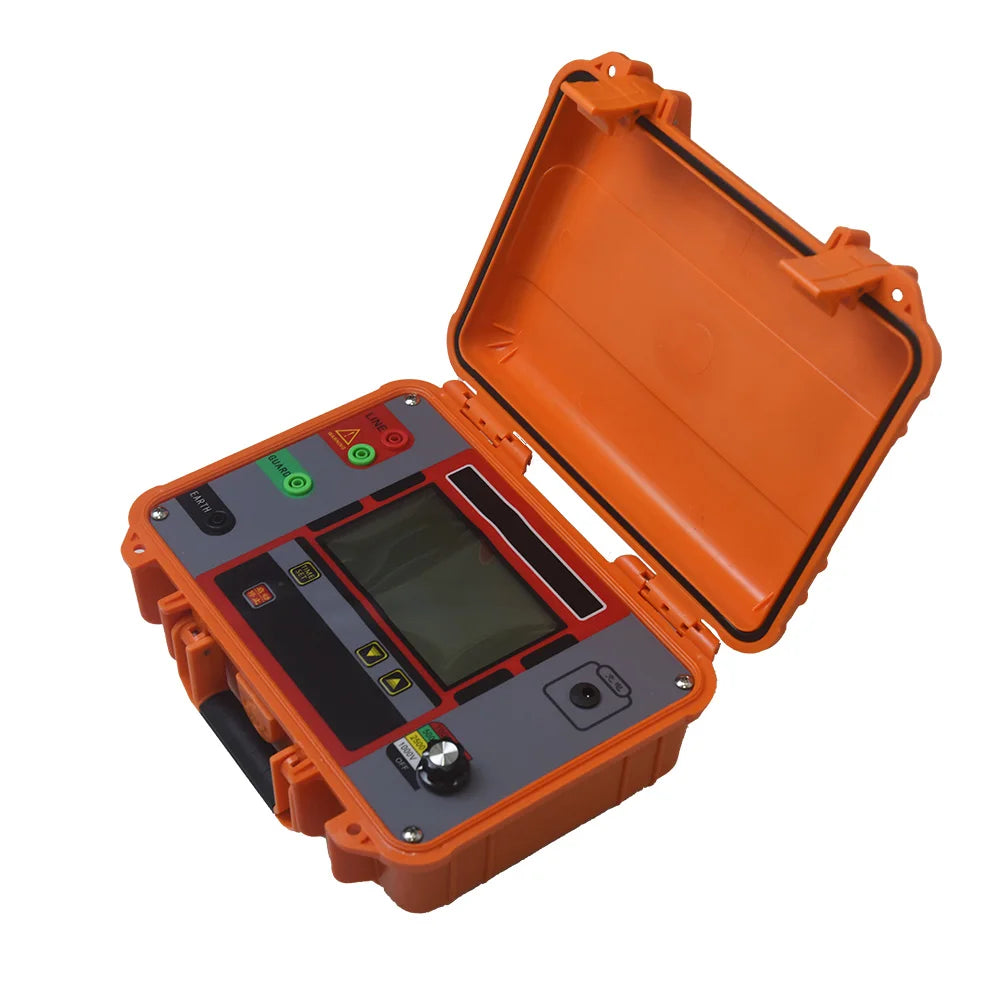

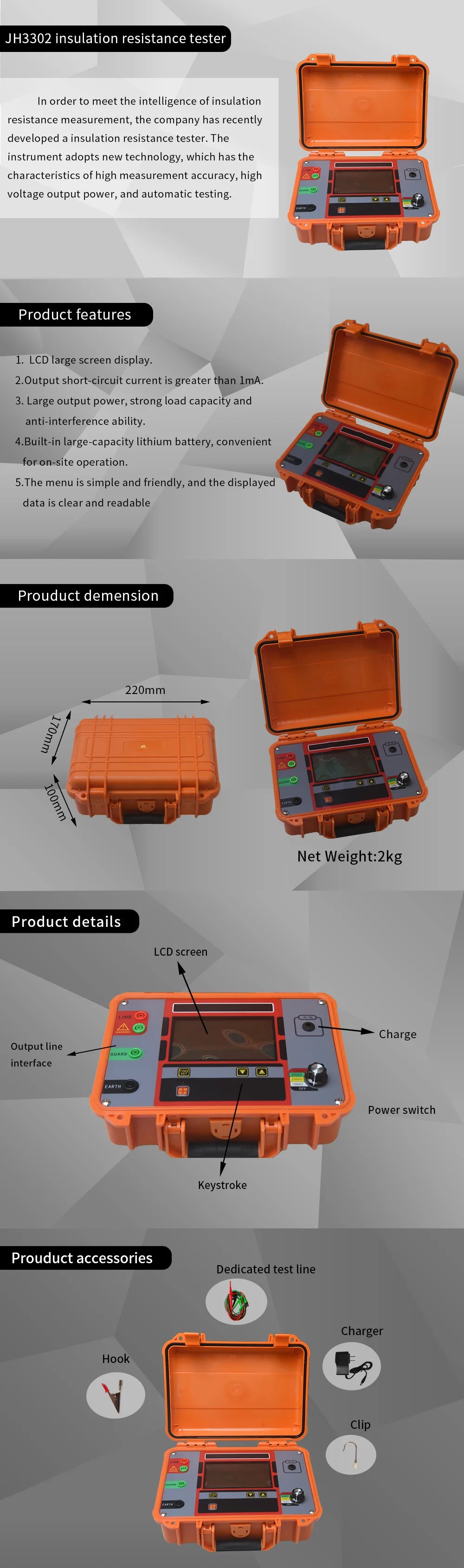

"10kV High Voltage Insulation Resistance Tester for Substations, Transformers & Industrial Power Systems"

High-voltage insulation testing up to 10,000V.

Selectable test voltages: 1000V, 2500V, 5000V, and 10000V.

Insulation resistance measurement range from 1MΩ to 1TΩ.

Automatic Polarization Index (PI) and Dielectric Absorption Ratio (DAR) testing.

Large color LCD display for clear field readings.

Built-in 12.6V lithium battery for portable operation.

Short-circuit current greater than 1mA for reliable testing.

High load capacity with strong anti-interference performance.

Integrated micro printer for on-site test documentation.

Shockproof, dustproof, and moisture-resistant construction.

Suitable for transformers, motors, generators, cables, switchgear, and electrical equipment.

CE certified for professional industrial applications.

Designed for power utilities, substations, petrochemical plants, and Oil & Gas facilities.

• Rugged industrial enclosure engineered for field and plant environments.

•
  Store in a clean, dry location when not in use.

•
  Recharge the lithium battery regularly to maintain optimal performance.

•
  Inspect test leads and connectors before each use.

•
  Clean with a soft, dry cloth and avoid aggressive solvents.

•
  Follow all high-voltage safety procedures during testing and maintenance.

•

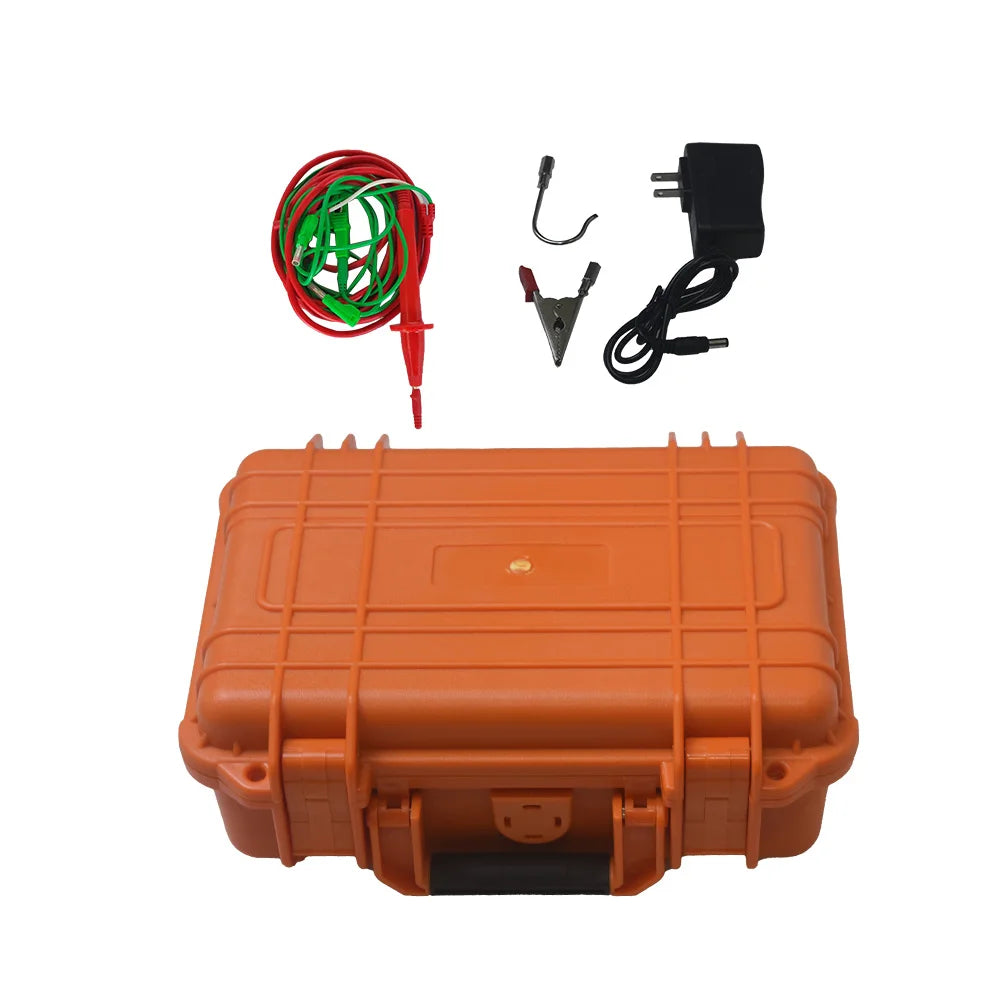

  Keep the instrument inside its protective carrying case during transport.
