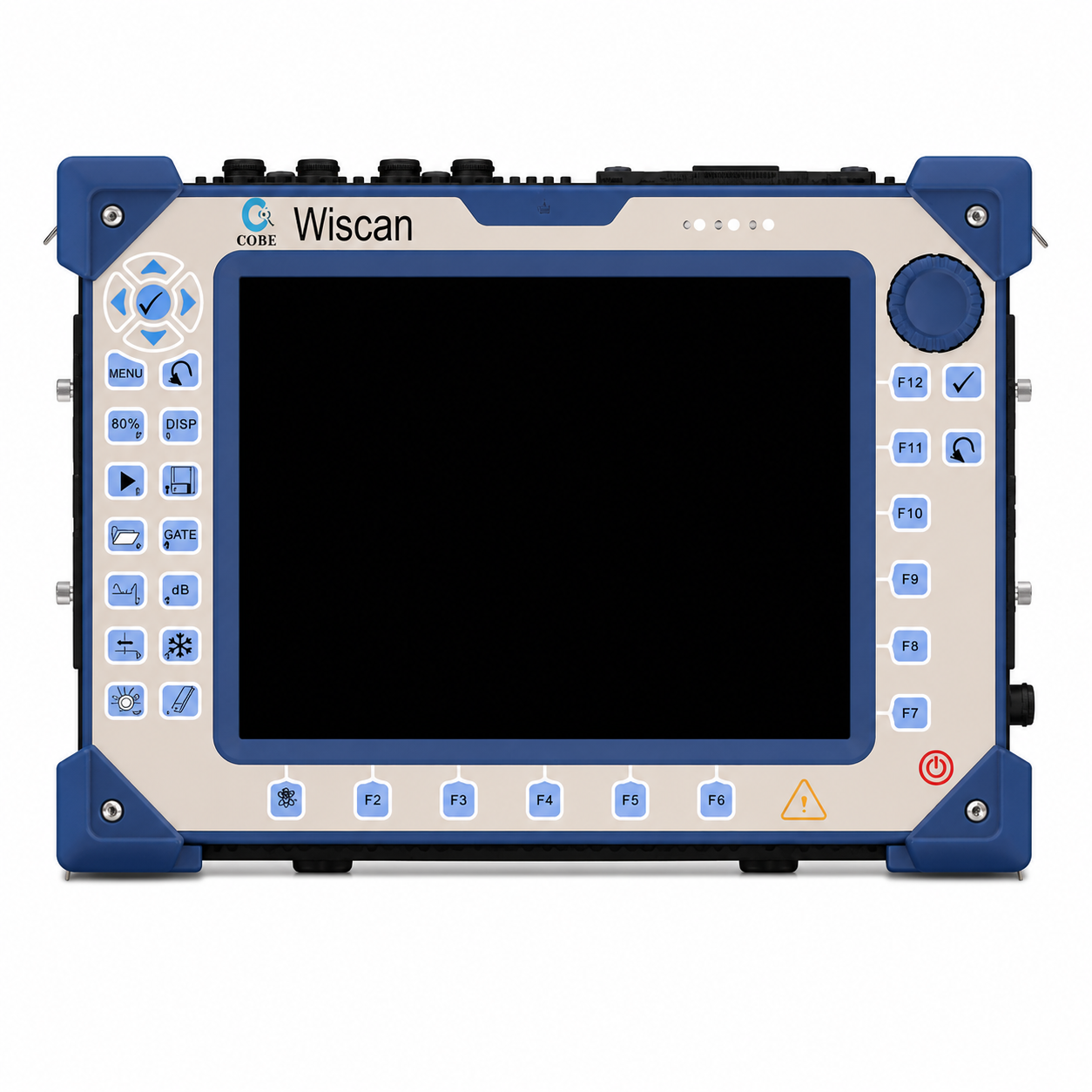

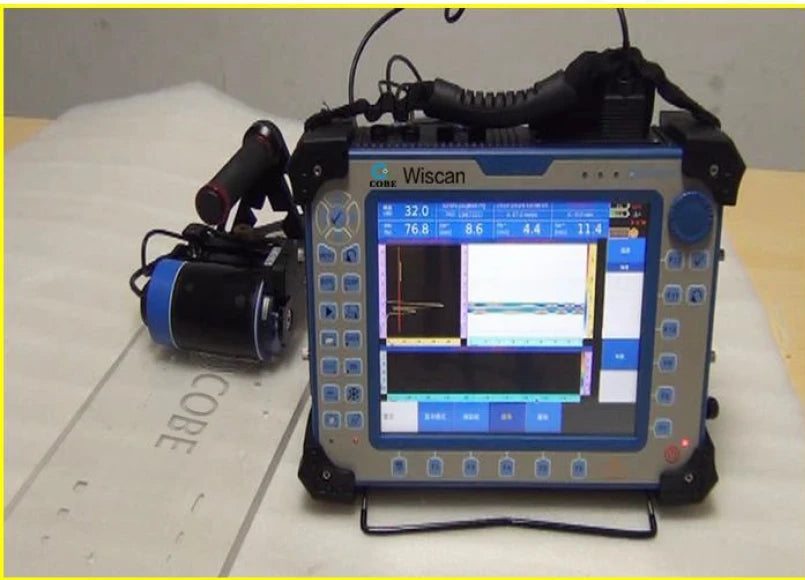

Portable Phased Array Ultrasonic Flaw Detector – Advanced PAUT NDT Inspection System

Advanced Phased Array Ultrasonic Testing (PAUT) technology

Portable design for field and plant inspections

10.4-inch TFT LCD display for clear data visualization

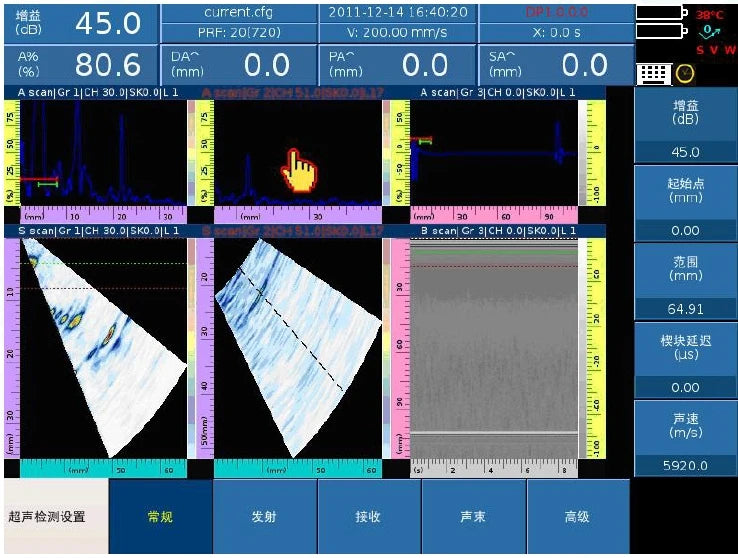

Supports A-Scan, B-Scan, C-Scan, and S-Scan imaging modes

Detection range up to 9,999 mm

Compatible with straight beam and angle beam probes

Sound velocity range: 635–15,240 m/s

PRF up to 20 kHz

USB, Ethernet, DVI/VGA connectivity

Encoder support for automated scanning applications

SD Card and USB storage capability

Rechargeable lithium battery with up to 4 hours of operation

Suitable for weld inspection, corrosion assessment, defect detection, and asset integrity programs

CE certified

Rugged industrial housing designed for field inspections

Store in a clean, dry environment when not in use

Protect display and connectors from excessive dust and moisture

Inspect probes and cables regularly for wear or damage

Recharge battery according to manufacturer recommendations

Clean probe contact surfaces before and after inspections for optimal signal quality

Operate within the recommended temperature range of -10°C to 50°C
