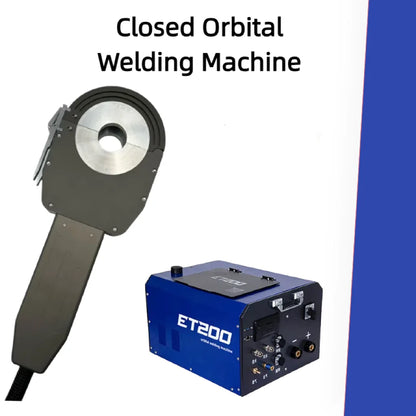

Orbital TIG Welder for Precision Tube & Pipeline Welding

• Orbital TIG welding system for precision tube and pipeline welding.

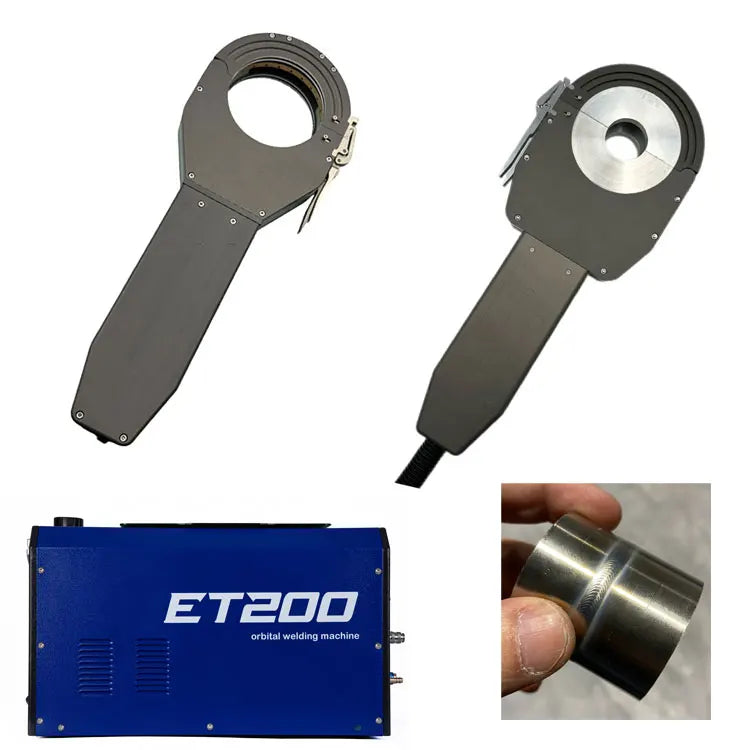

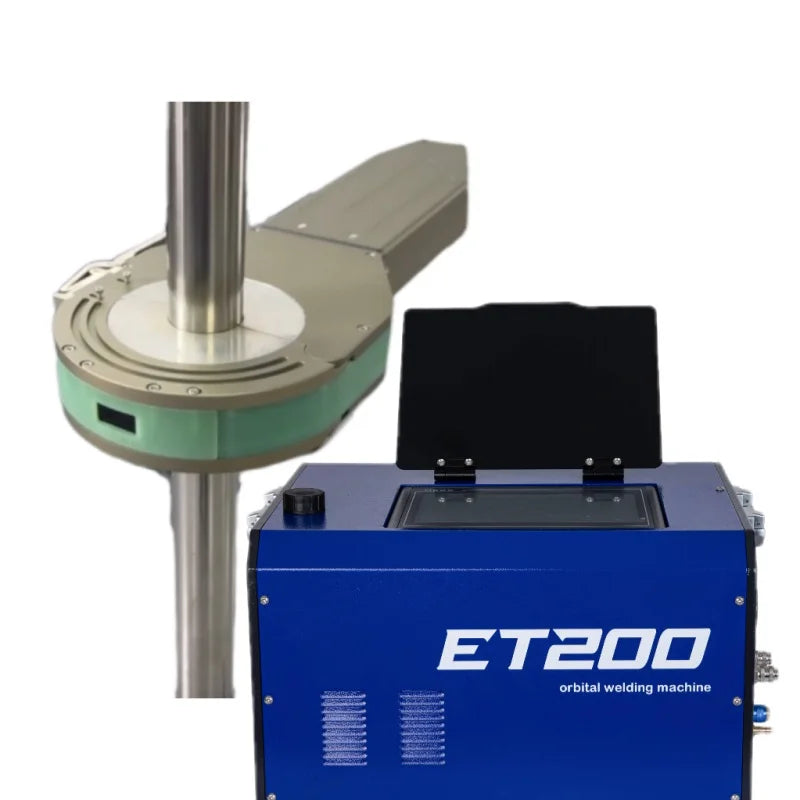

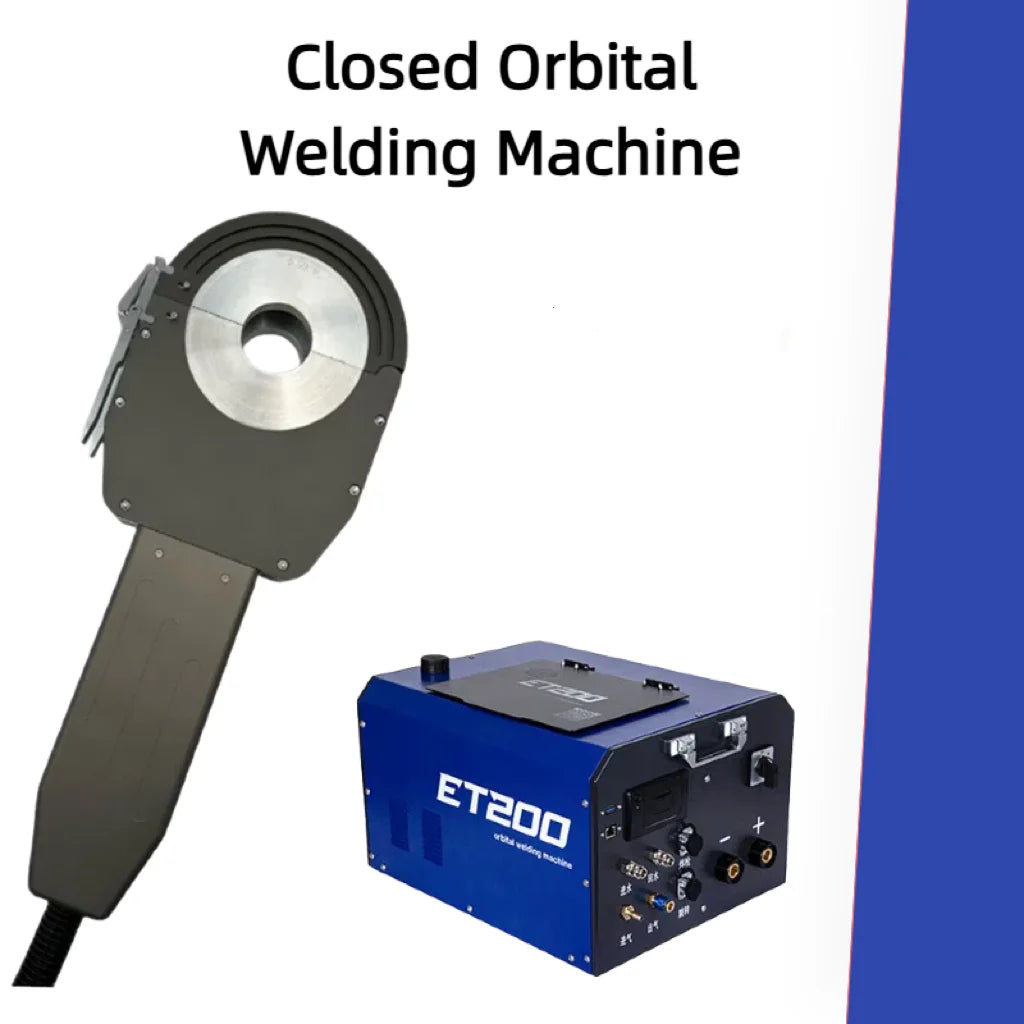

• Integrated program-controlled welding power supply and welding head.
• Expert welding database automatically generates welding parameters after entering pipe diameter and wall thickness.
• Designed for consistent, repeatable weld quality in controlled tube and pipe welding applications.

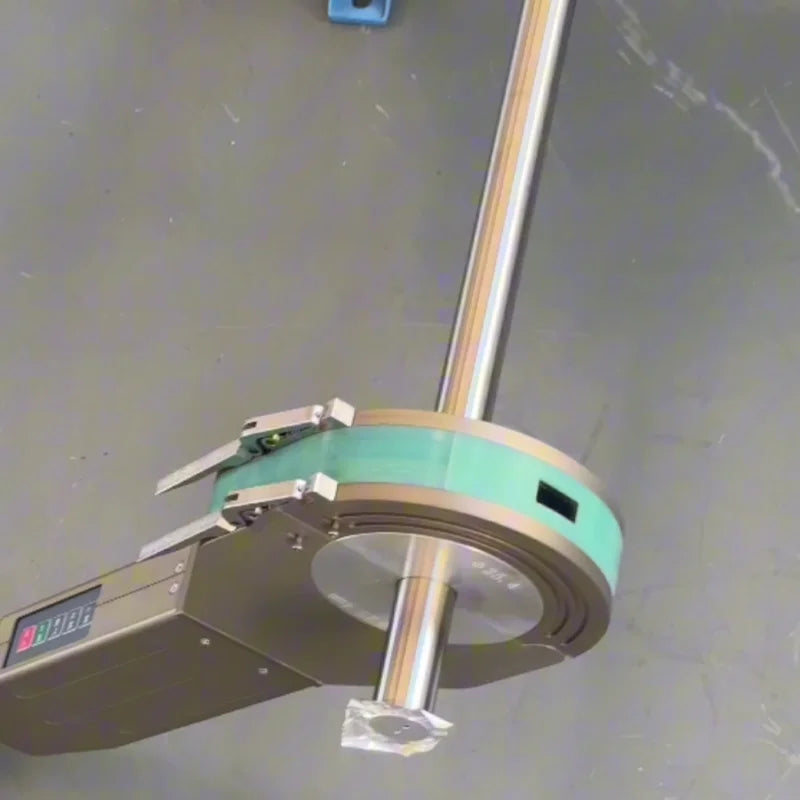

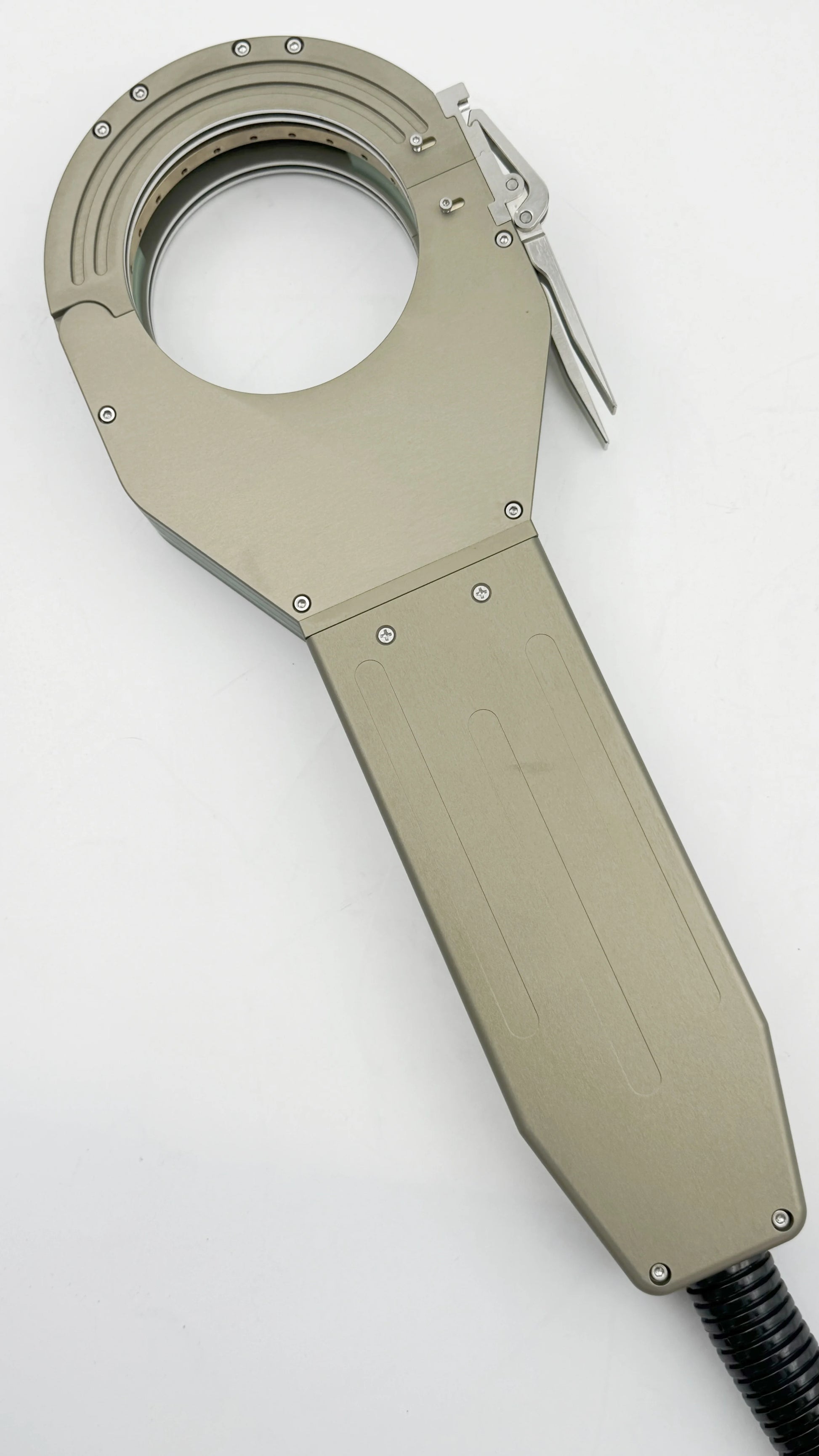

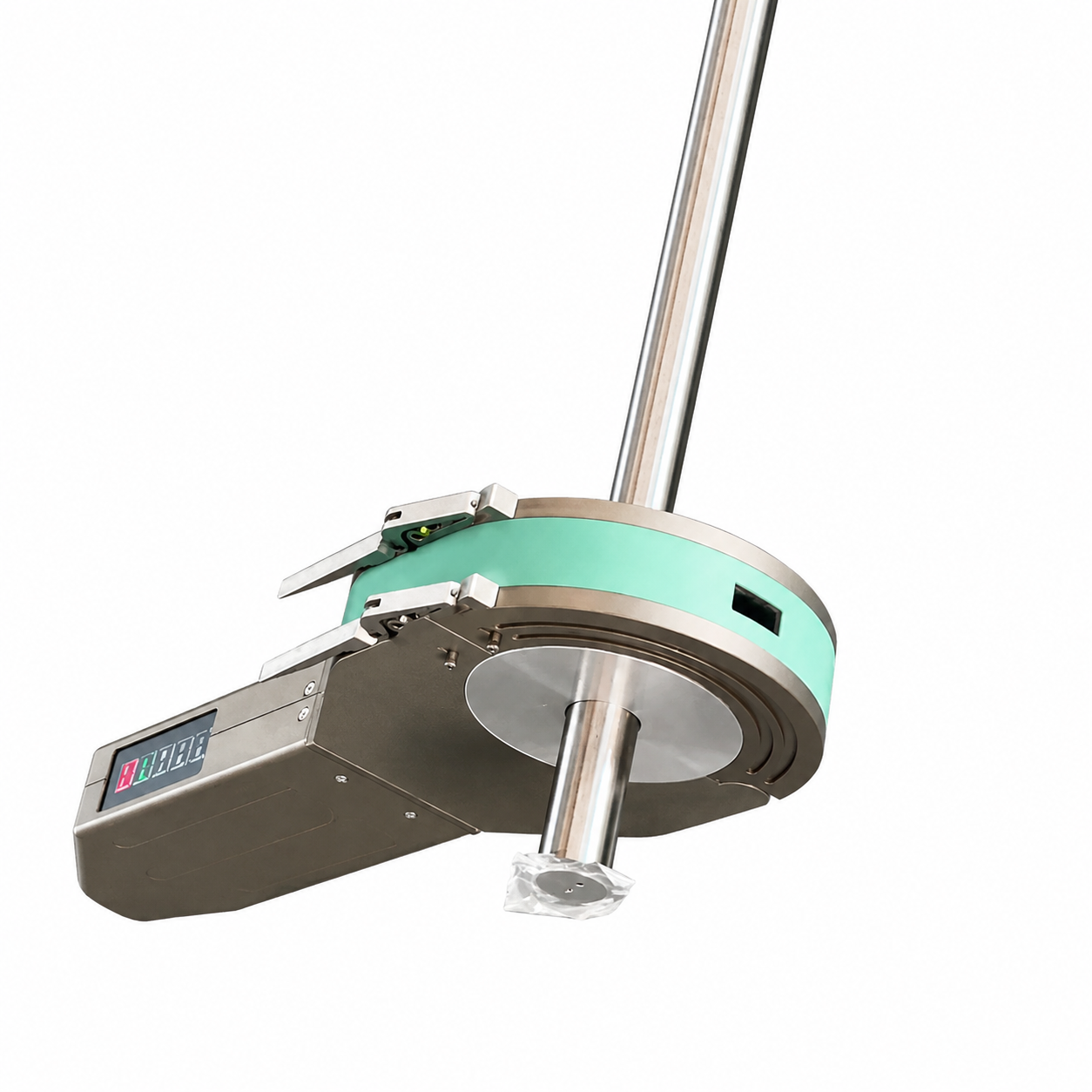

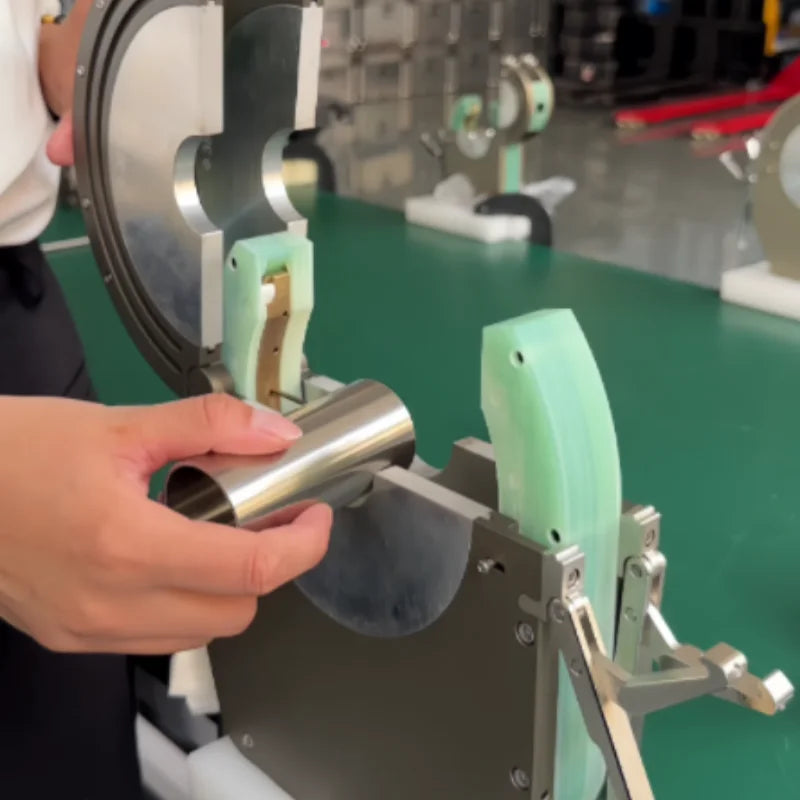

• Compact welding head can be held with one hand for easier operation in restricted spaces.
• Water-cooled and air circuit system helps prevent overheating during operation.

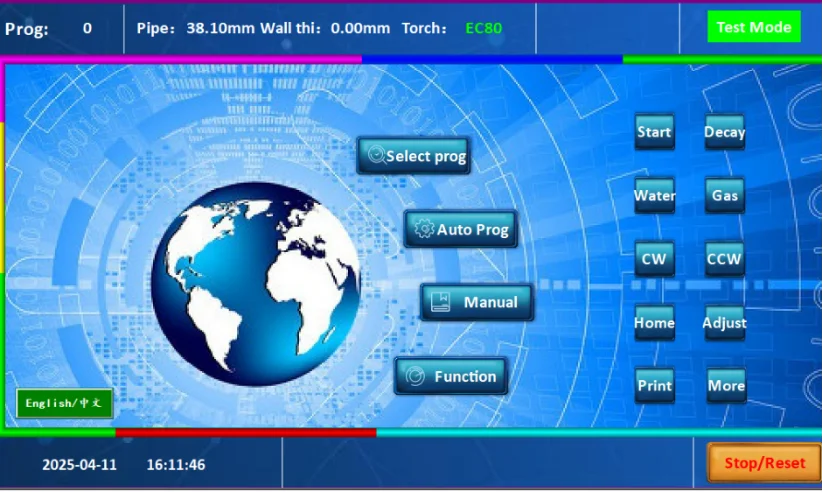

• Digital interface designed for simple setup and operation.

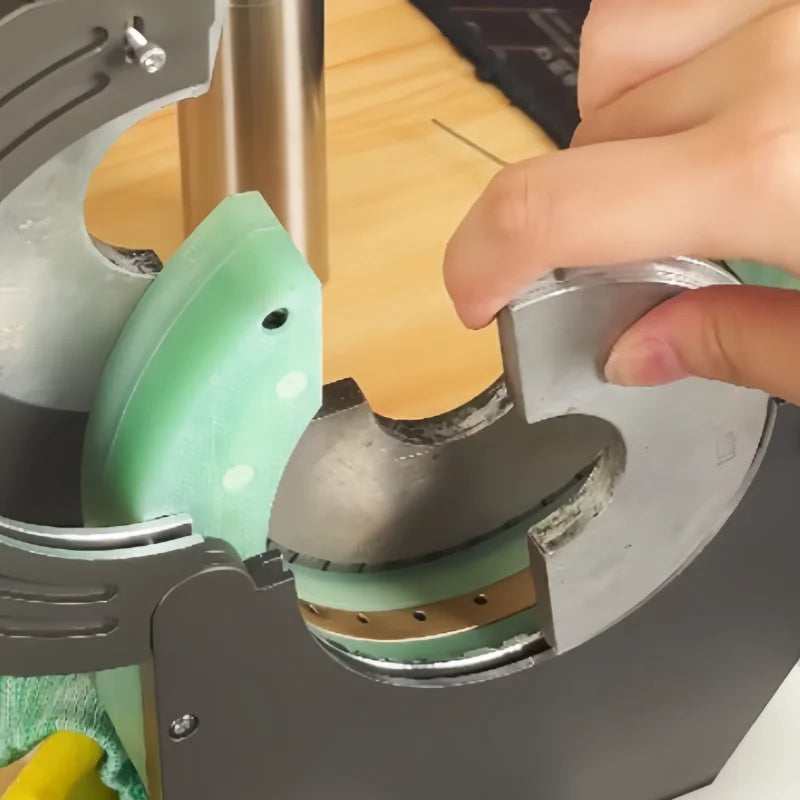

• Customizable fixtures available for different welding requirements.

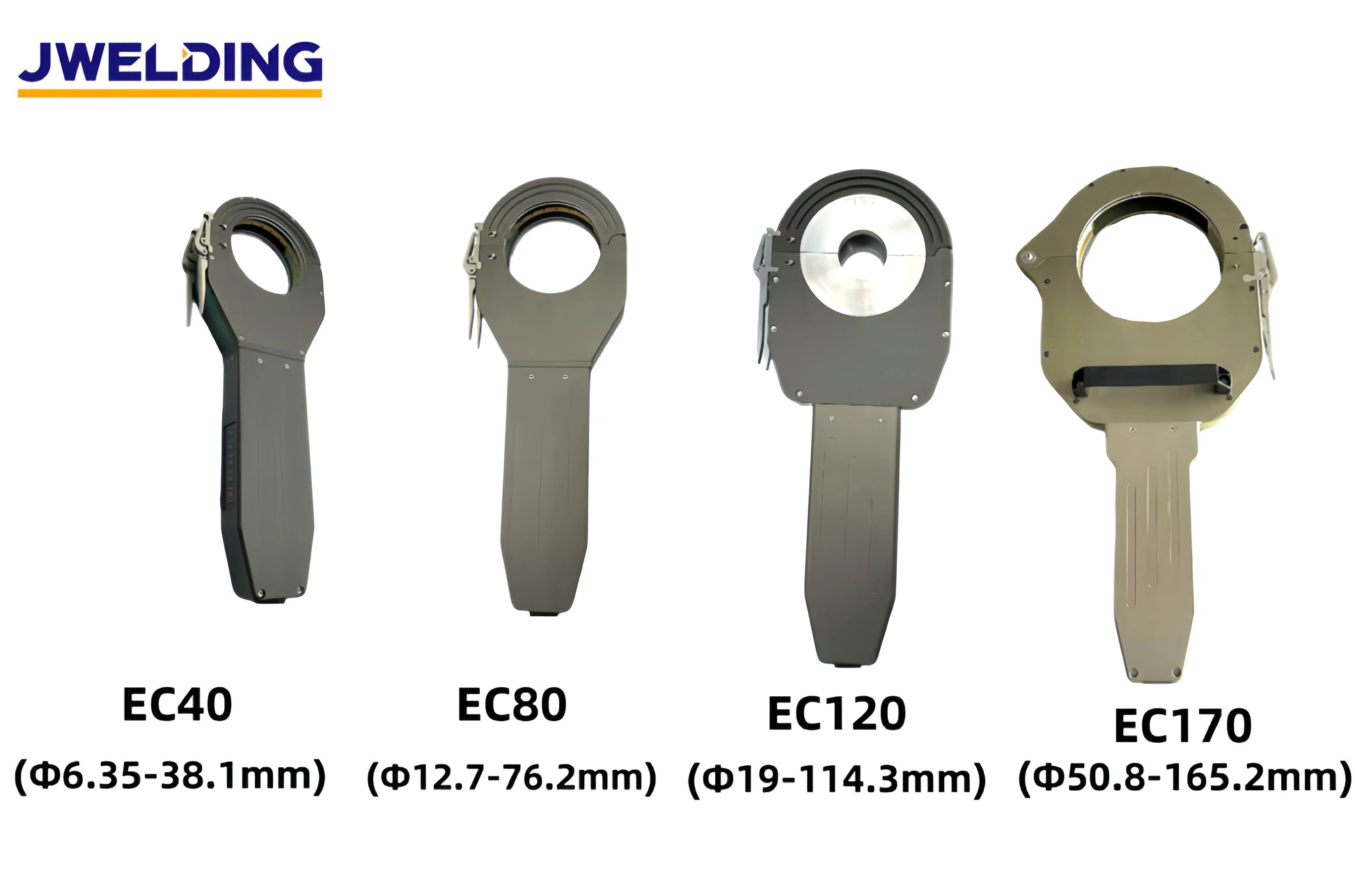

• Suitable for tube diameters from 6.35mm to 165.2mm.
• CE certified.
• AC power source.
• Model: EC40.
• Dimensions: 540mm × 195mm × 54mm.
• Listed weight: 58.

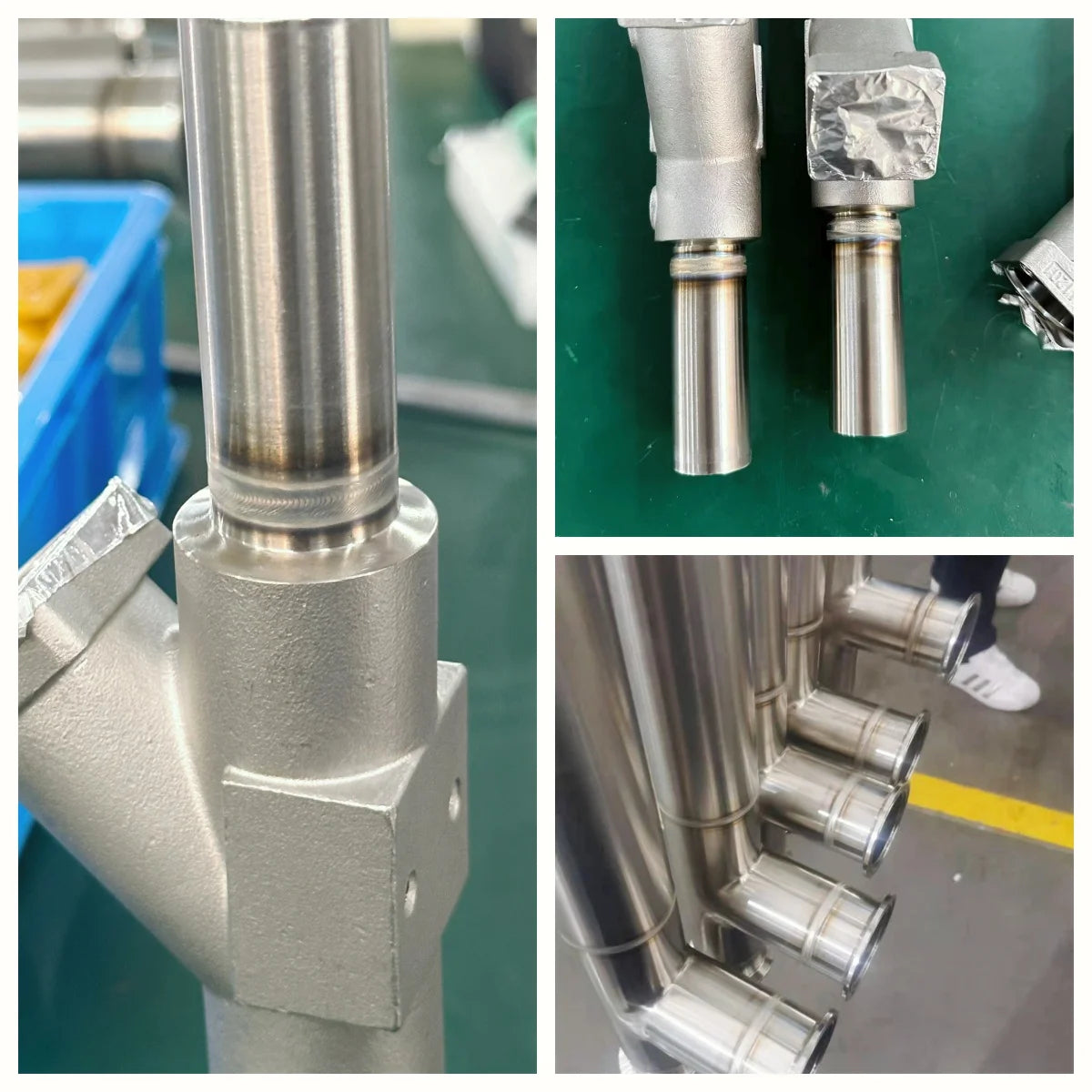

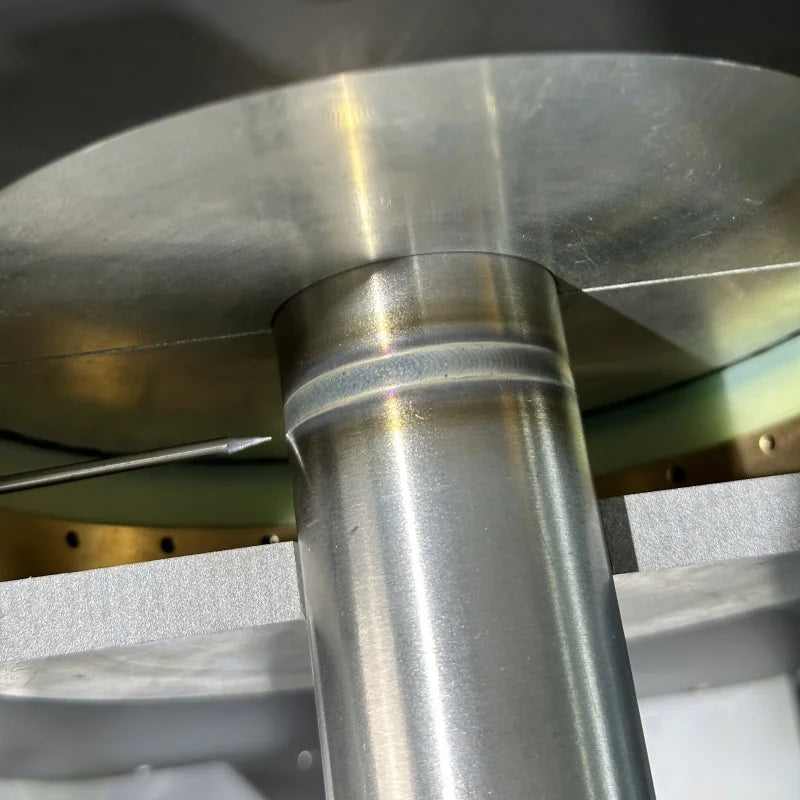

• Designed for use in welding applications where precision, repeatability, and clean weld appearance are required.

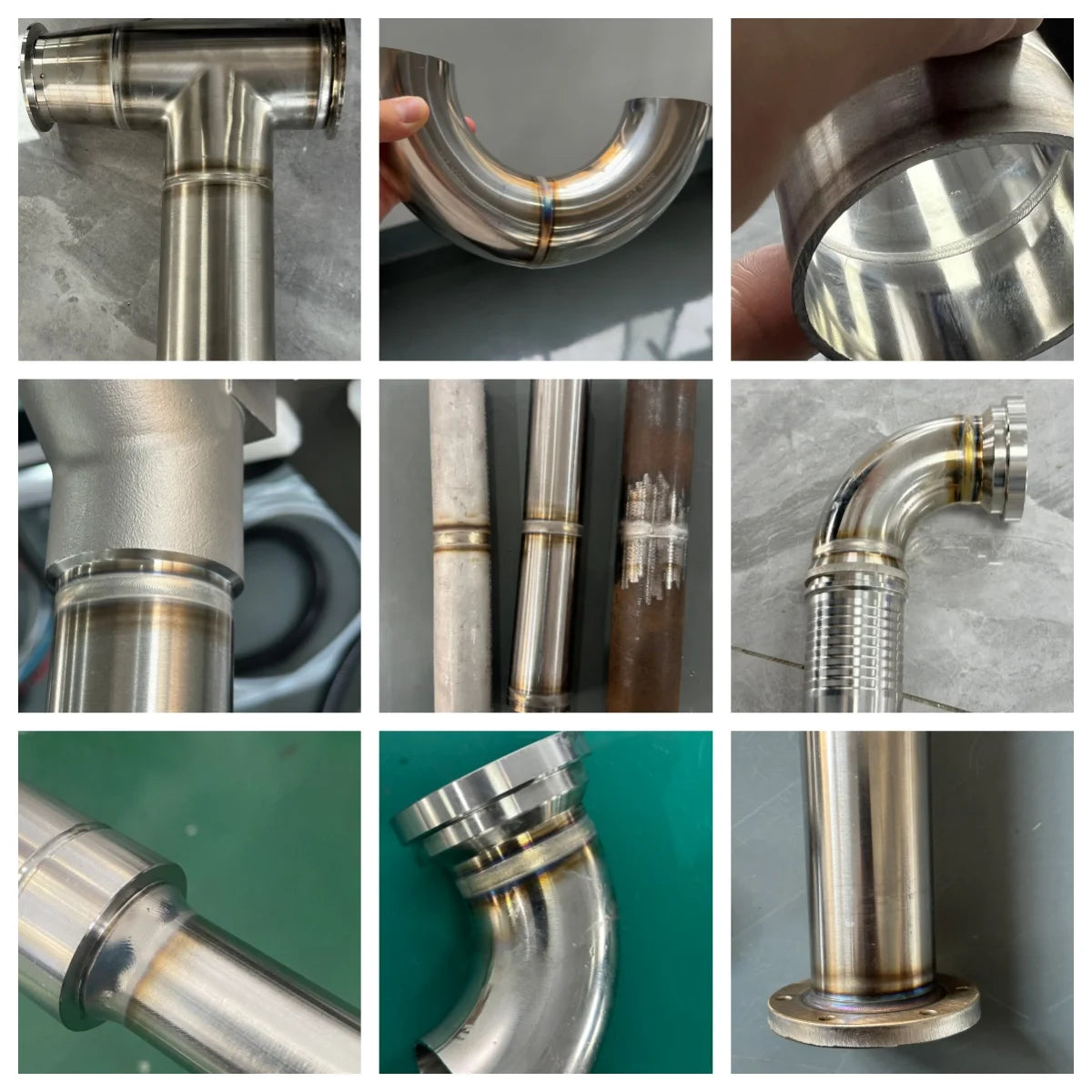

• Applicable to food and beverage, aerospace, semiconductor, bio-engineering, instrumentation, pipeline installation, and industrial process piping.

Built with precision mechanical welding head components, integrated electronic controls, water-cooling support, and air circuit system.

Keep the welding head, fixtures, cables, cooling lines, and control connections clean and free from debris.

Inspect the torch, tungsten electrode, clamps, fixtures, gas lines, and cooling connections before each welding operation.

Confirm proper shielding gas flow, cooling circulation, and power connection before starting a weld cycle.

Do not operate if cables, connectors, cooling hoses, or gas lines are damaged or leaking.

Keep the system away from excessive moisture, corrosive environments, and heavy impact during storage and transport.

Clean spatter, dust, and surface contamination from fixtures and contact areas after use.

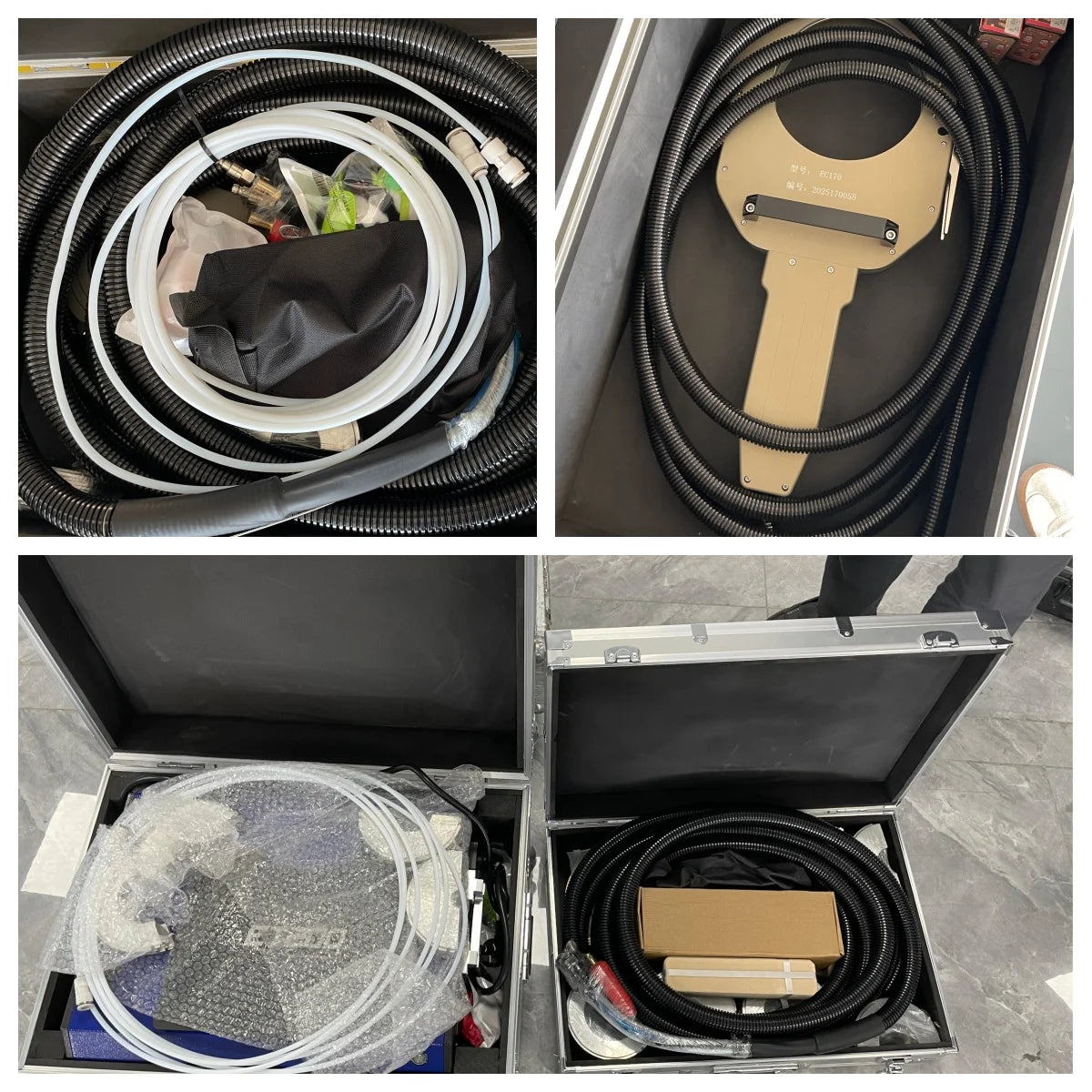

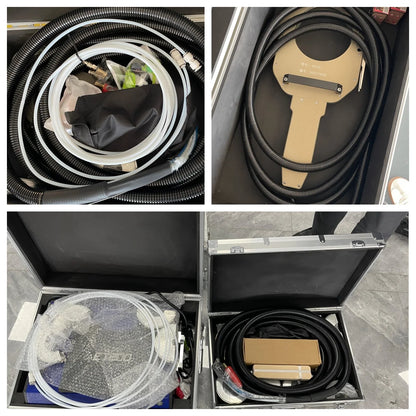

Store the welding head and accessories in a protected case or clean cabinet when not in use.

Follow qualified welding procedures, site safety rules, and applicable code requirements for tube and pipeline welding.

Service, calibration, and parameter validation should be performed by trained welding or maintenance personnel.
