PAUT Internal Focus Probe 10MHz 32-Element – Small Diameter Pipe Weld Inspection

Advanced phased array ultrasonic testing (PAUT) technology.

Internal focus design for enhanced detection of small defects.

Optimized for small-diameter pipe weld inspection.

Reduces near-surface dead zone for improved flaw characterization.

Ideal for thin-wall tubing and process piping applications.

Available in multiple frequencies up to 10 MHz configurations.

32-element phased array configuration available for high-resolution imaging.

Compact footprint for low-clearance and restricted-access inspections.

Compatible with most phased array flaw detectors.

Supports custom frequency, element count, pitch, wedges, and connectors.

Suitable for weld inspection, corrosion assessment, boiler tubes, and process piping.

Probe housing manufactured with durable stainless steel construction.

Store in a clean, dry environment when not in use.

Avoid impact, excessive vibration, and cable strain.

Clean contact surfaces and wedges after each inspection.

Use approved couplants and compatible wedges for optimal performance.

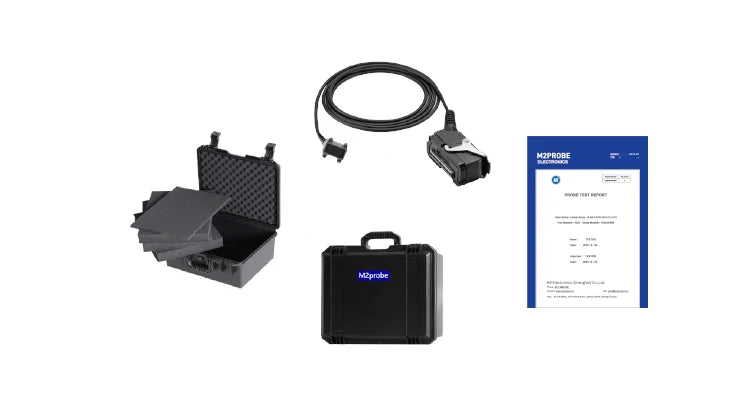

Transport and store in the supplied protective carrying case.
