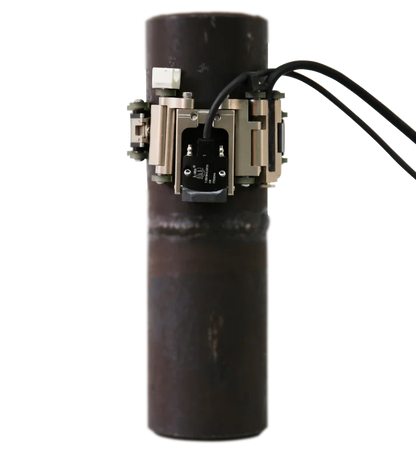

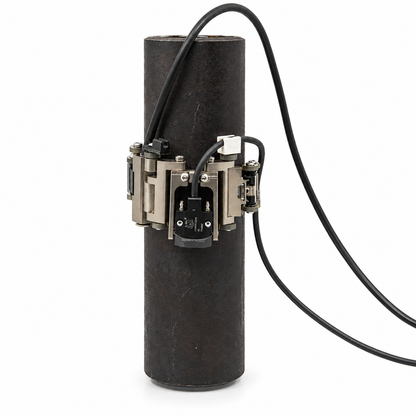

SCQsp-1 PAUT Chain Scanner – Small Diameter Pipe Weld Inspection System
SCQsp-1 PAUT Chain Scanner – Small Diameter Pipe Weld Inspection System
Regular price
$10,454.95 USD
Regular price
$12,544.95 USD
Sale price
$10,454.95 USD
Taxes included.
Shipping calculated at checkout.
Low stock: 9 left

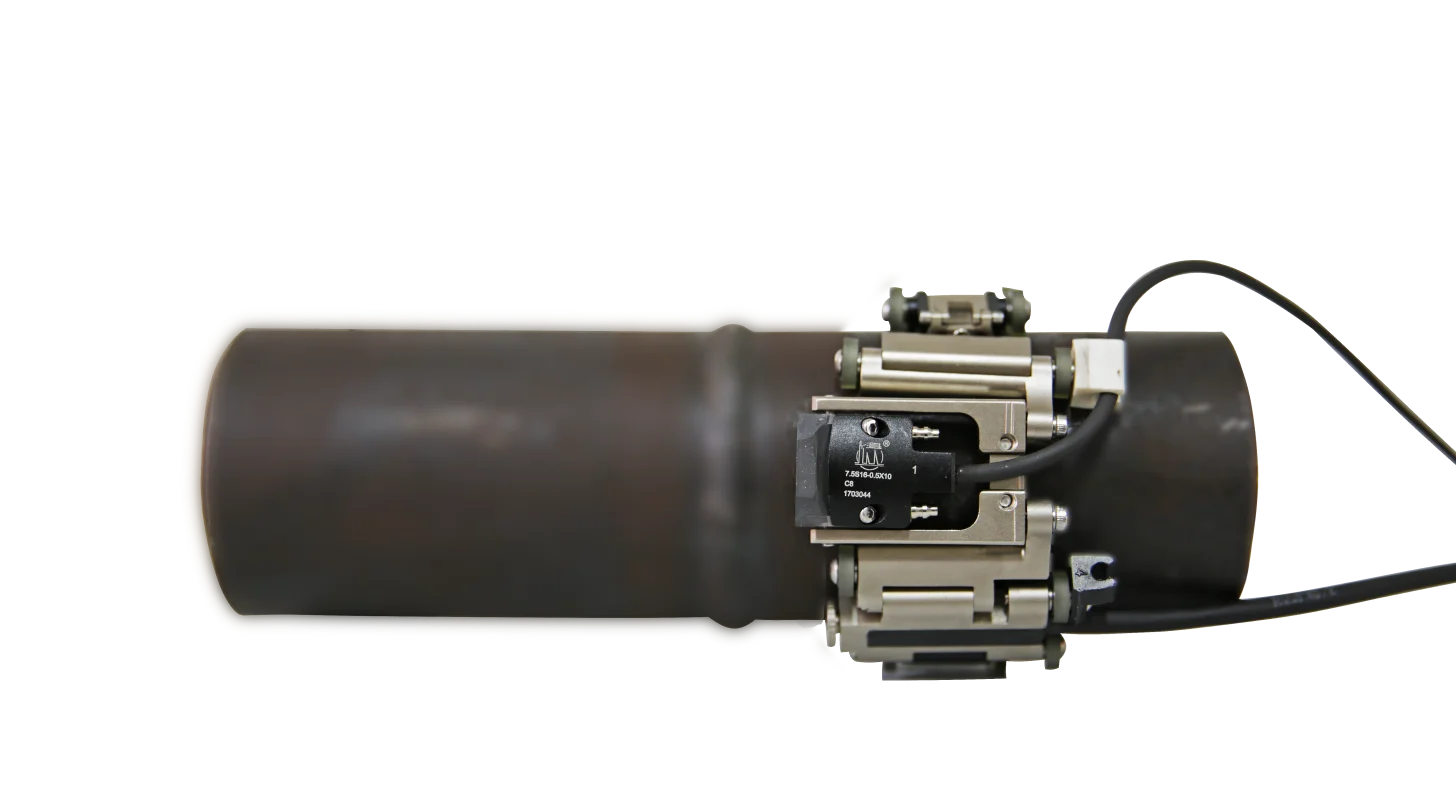

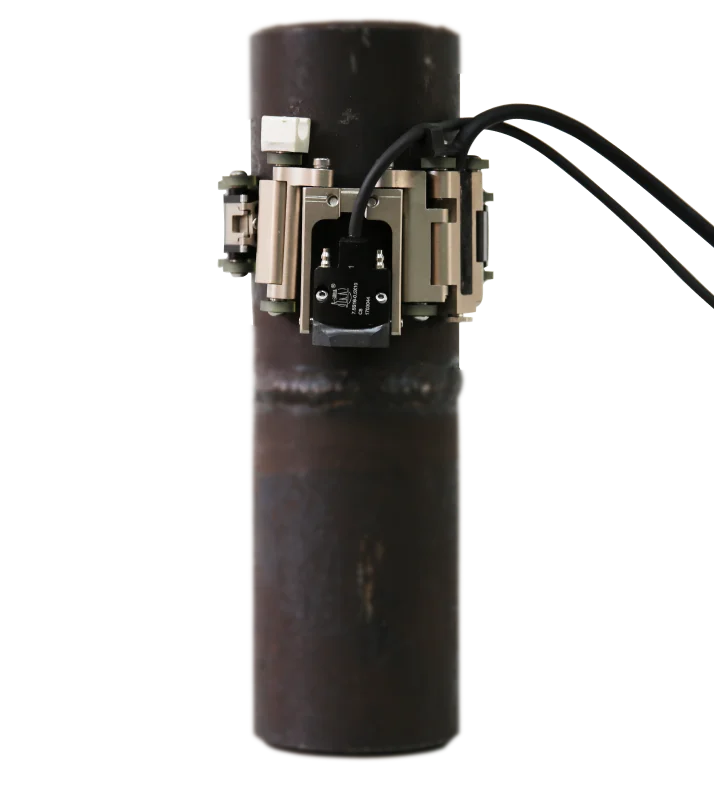

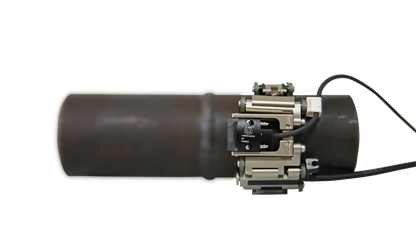

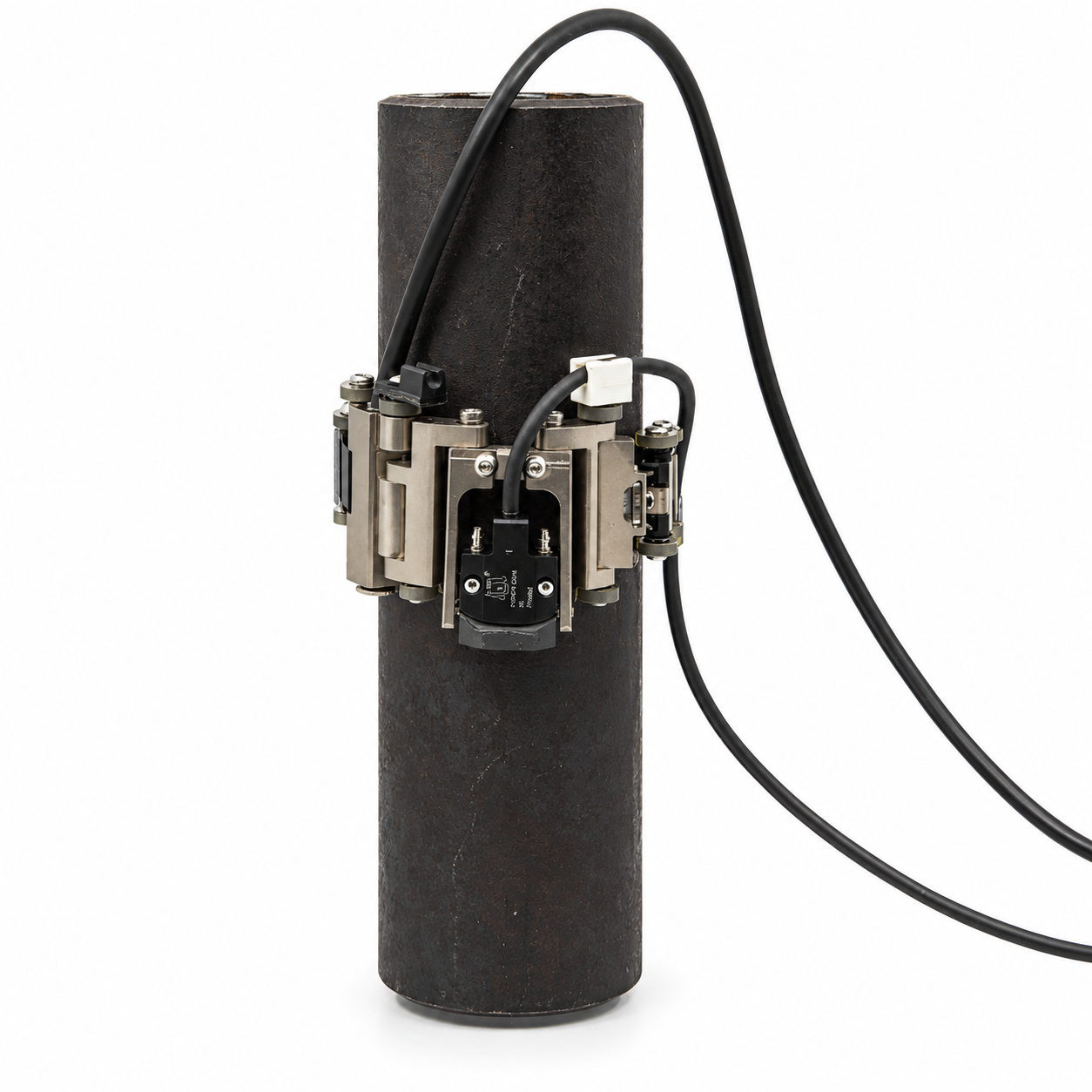

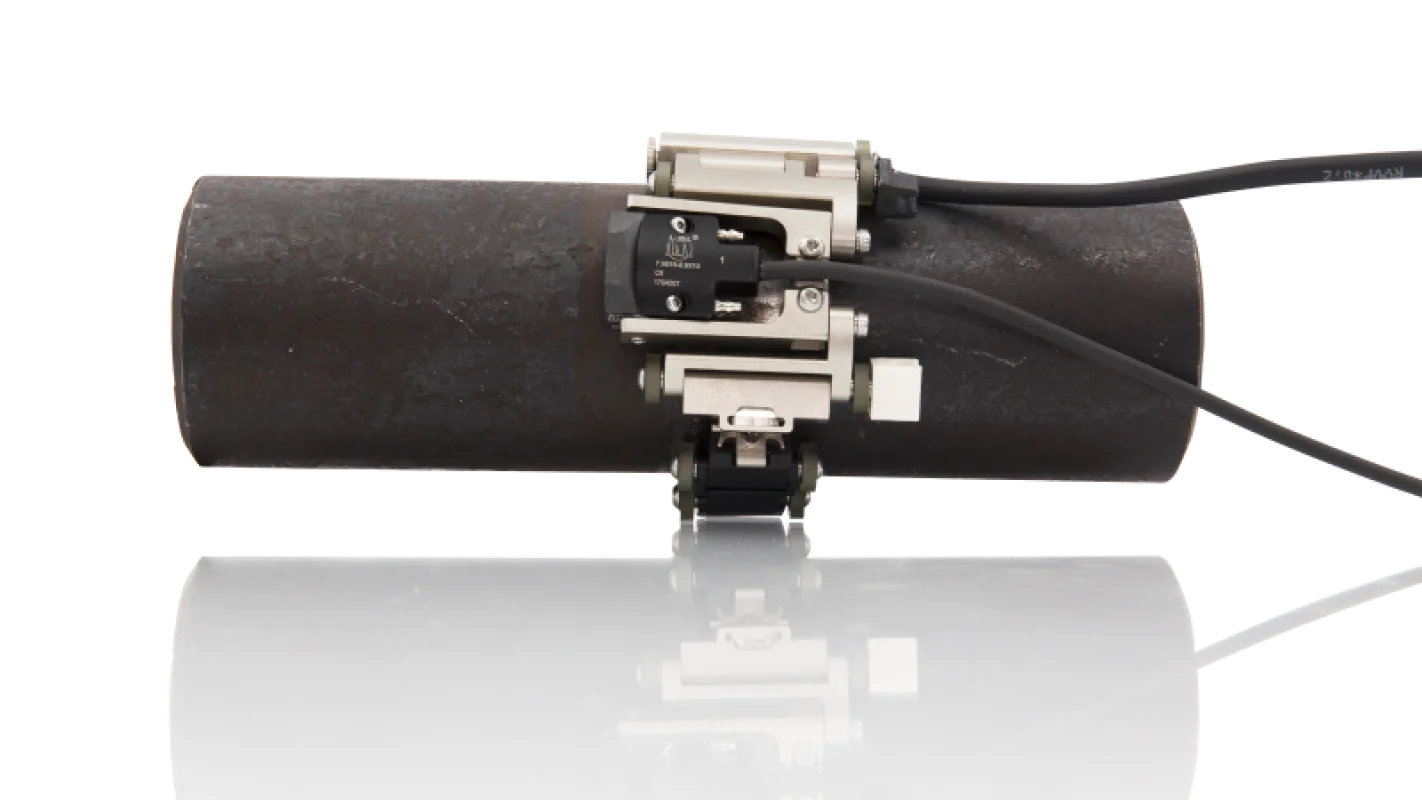

The SCQsp-1 PAUT Chain Scanner is a compact, high-precision weld inspection solution designed for phased array ultrasonic testing of small-diameter pipes. Engineered for circumferential weld examinations, it provides accurate encoder positioning, smooth scanning performance, and reliable data acquisition in restricted-access environments commonly found in Oil & Gas, power generation, and industrial fabrication.
Couldn't load pickup availability
Product features
Product features
- Designed for small-diameter pipe weld inspections

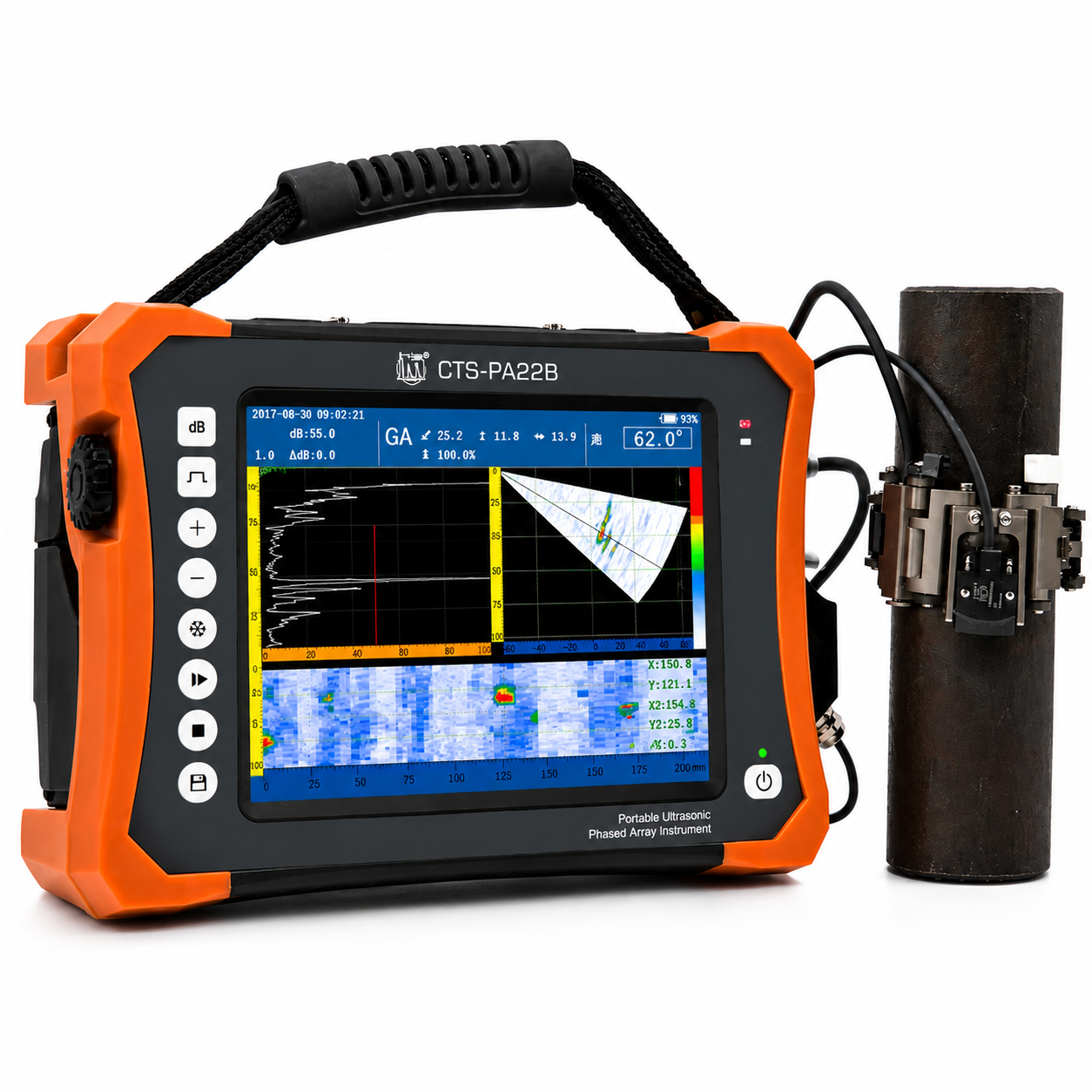

- Compatible with PAUT and advanced ultrasonic testing applications
- Suitable for pipe diameters from 20 mm to 114.3 mm (0.84"–4.5")
- High-precision encoder resolution of 0.1 mm per step

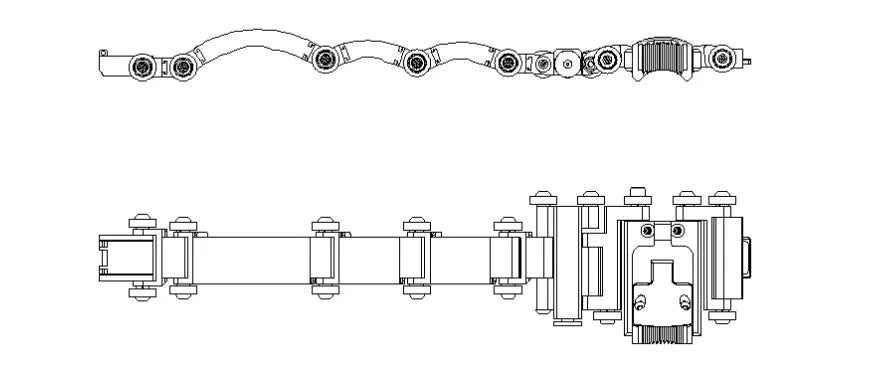

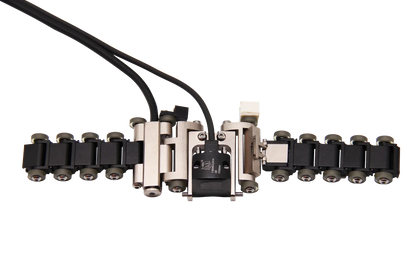

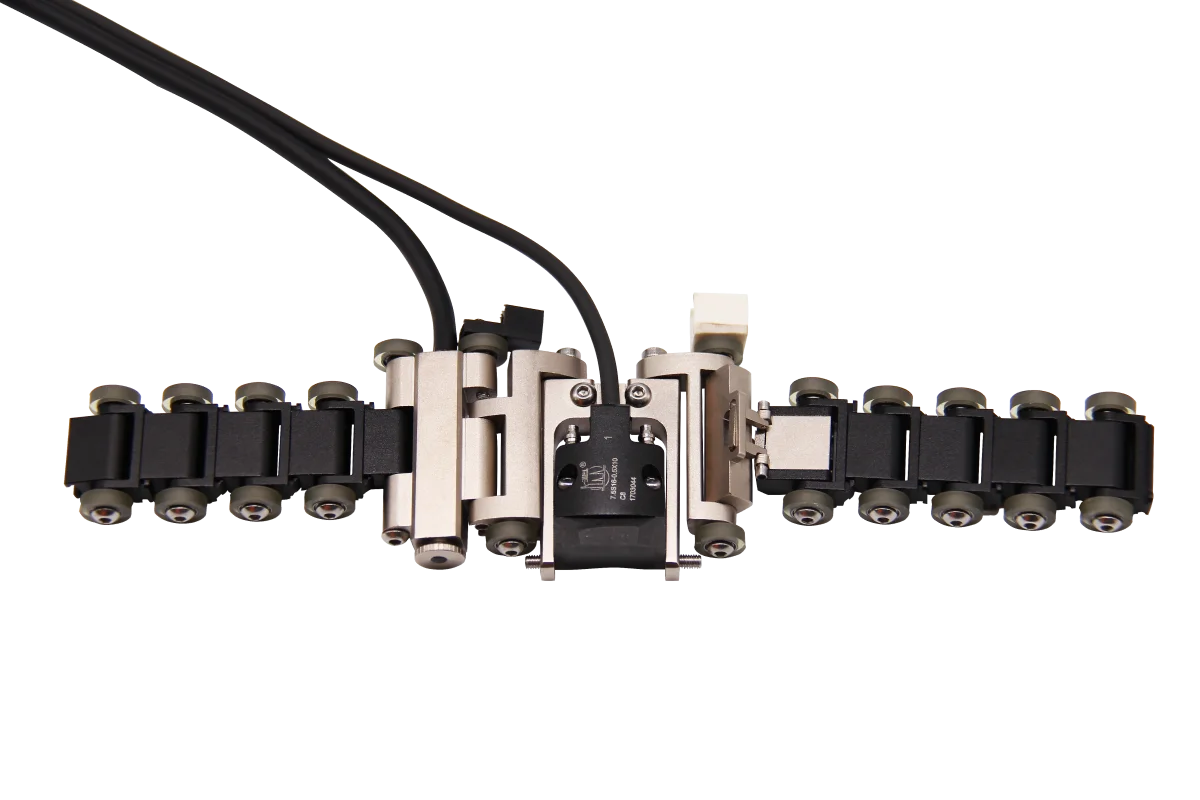

- Chain-based modular design for quick installation and removal
- Single-chain and dual-chain inspection configurations available
- Supports one-sided and simultaneous dual-sided inspections
- Operates in restricted spaces with only 12 mm clearance
- Spring-loaded design for ferromagnetic and non-ferromagnetic pipes
- Smooth urethane wheels minimize axial drift during scanning
- Quick-change wedges and probe mounting system
- Optional water-coupled PA wedges and automatic water spray system
- Compact, lightweight, and highly portable
- IP67 environmental protection rating
- Compatible with circumferential weld inspection software platforms
Materials and care
Materials and care
- Industrial-grade metal construction with corrosion-resistant components
- Clean encoder wheels and chain links after each inspection
- Inspect probe holders and wedges regularly for wear
- Store in a clean, dry carrying case when not in use
- Keep encoder components free from dirt and debris
- Lubricate moving mechanical parts according to maintenance recommendations
- Verify scanner calibration and encoder accuracy before critical inspections
