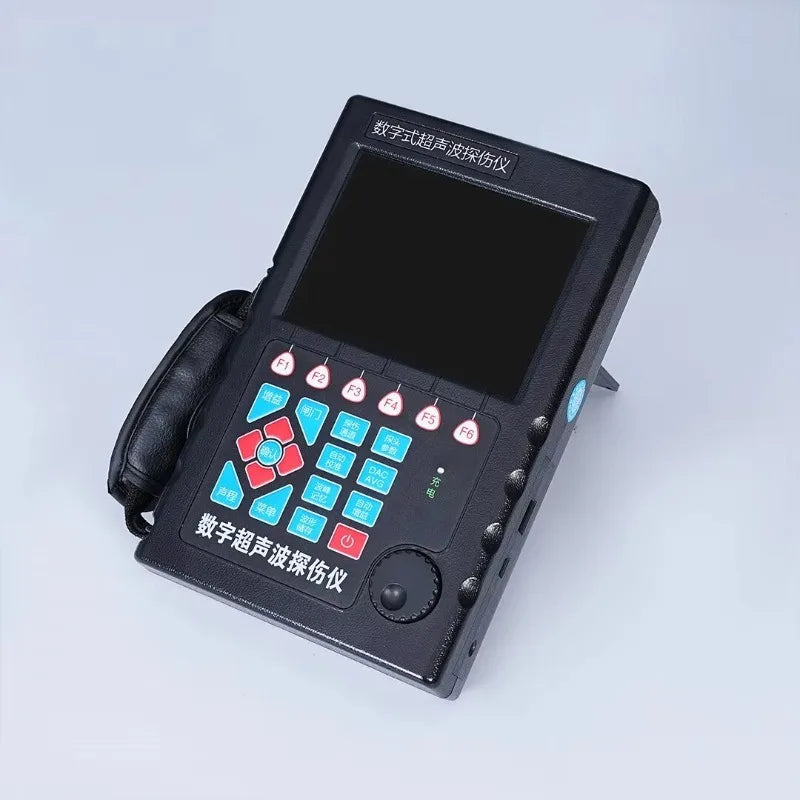

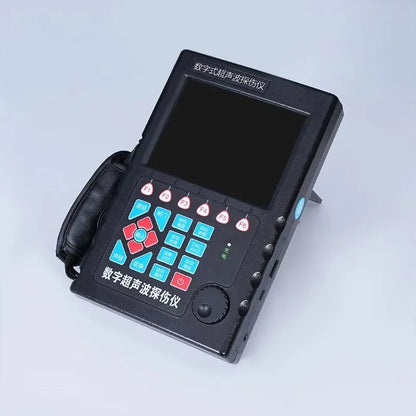

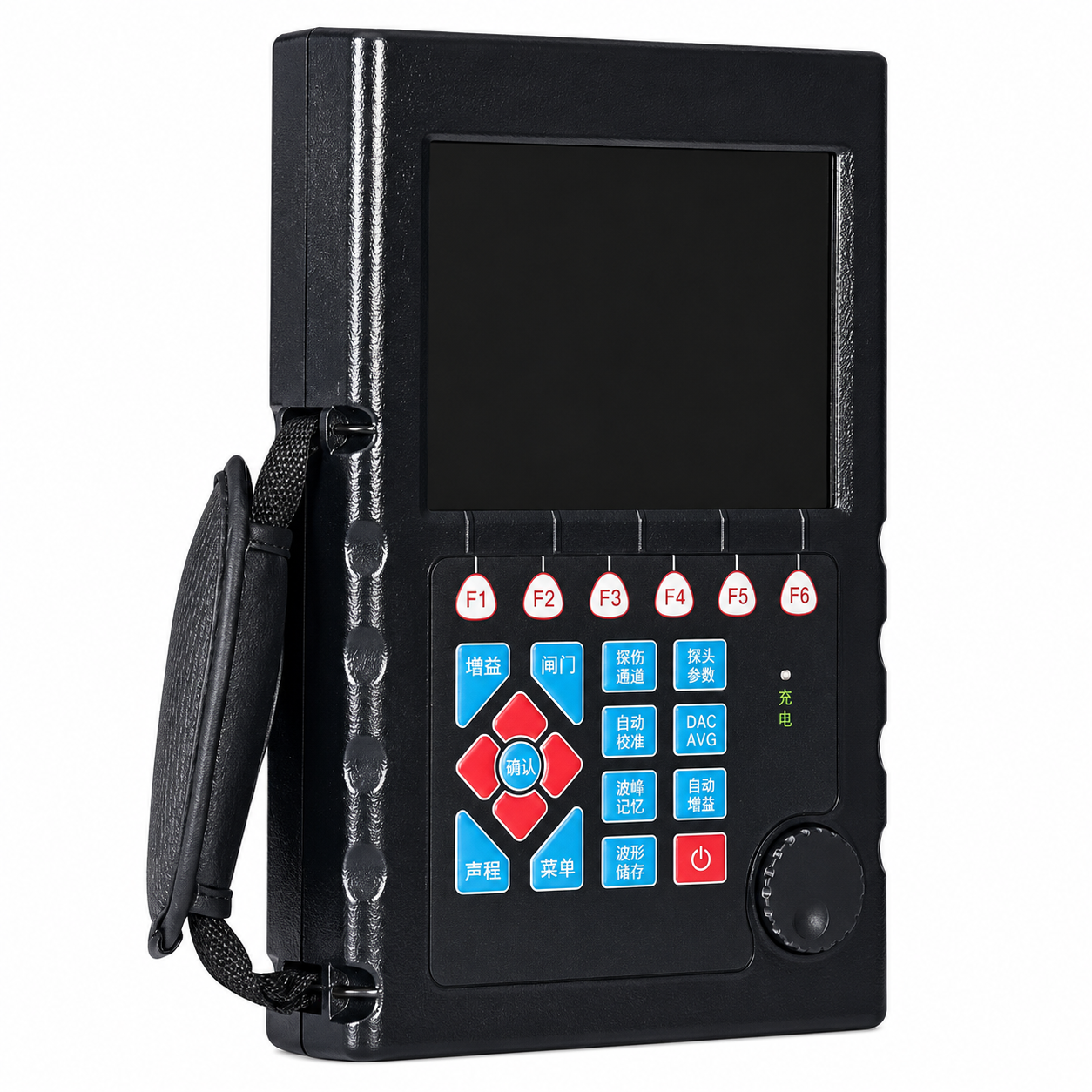

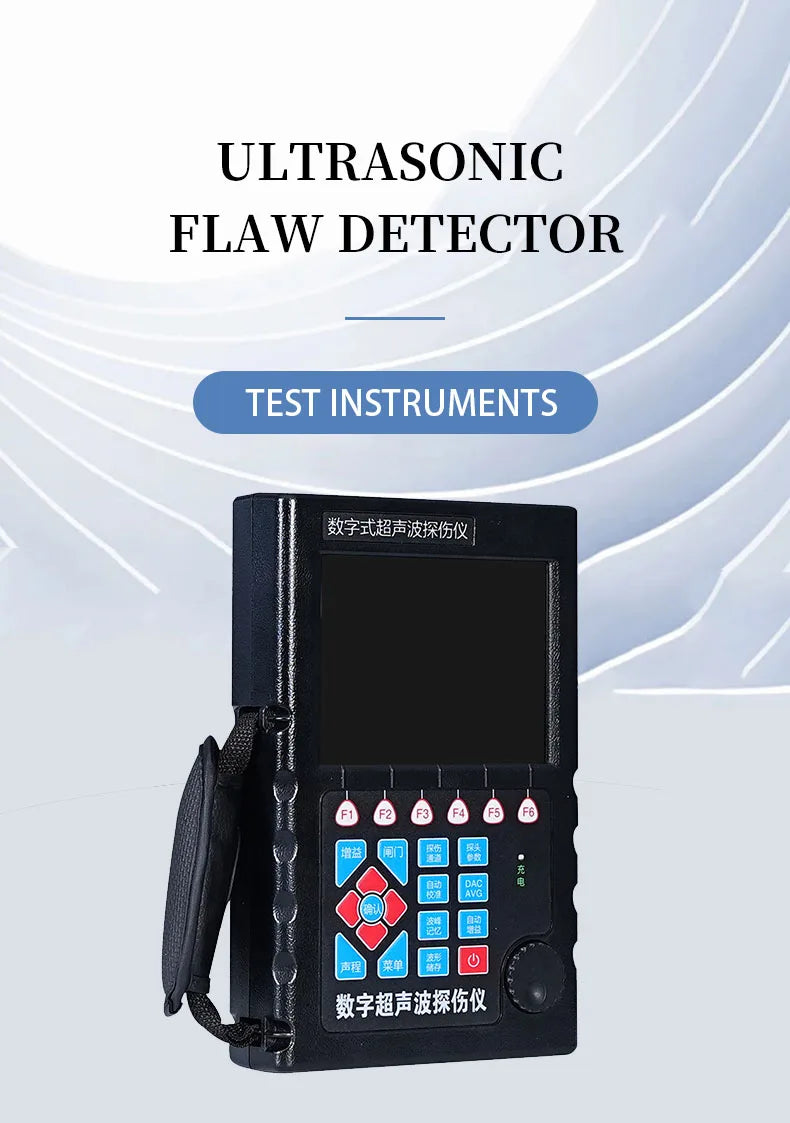

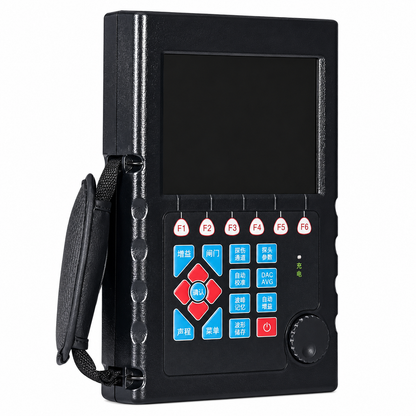

Portable Ultrasonic Flaw Detector – Digital NDT Weld & Pipe Inspector

• Professional portable ultrasonic flaw detector for NDT inspection

• Designed for weld, pipe, tank, and metal defect detection

• High-precision flaw quantification and positioning

• Small near-field blind area for thin-wall and small-diameter inspections

• A-scan and B-scan inspection modes

• Full wave and radio frequency detection methods

• Automatic calibration with one-button setup

• Automatic gain, waveform freeze, and peak memory functions

• Real-time defect echo position display

• Displays depth, amplitude, distance, and equivalent dB values

• DAC and AVG curve generation for depth compensation

• 1000 independent flaw detection channels (expandable)

• Stores up to 500 A-scan waveforms and inspection data

• Supports dynamic replay of stored flaw detection records

• Adjustable pulse width and transmission intensity

• Built-in flaw detection standards with custom standard input

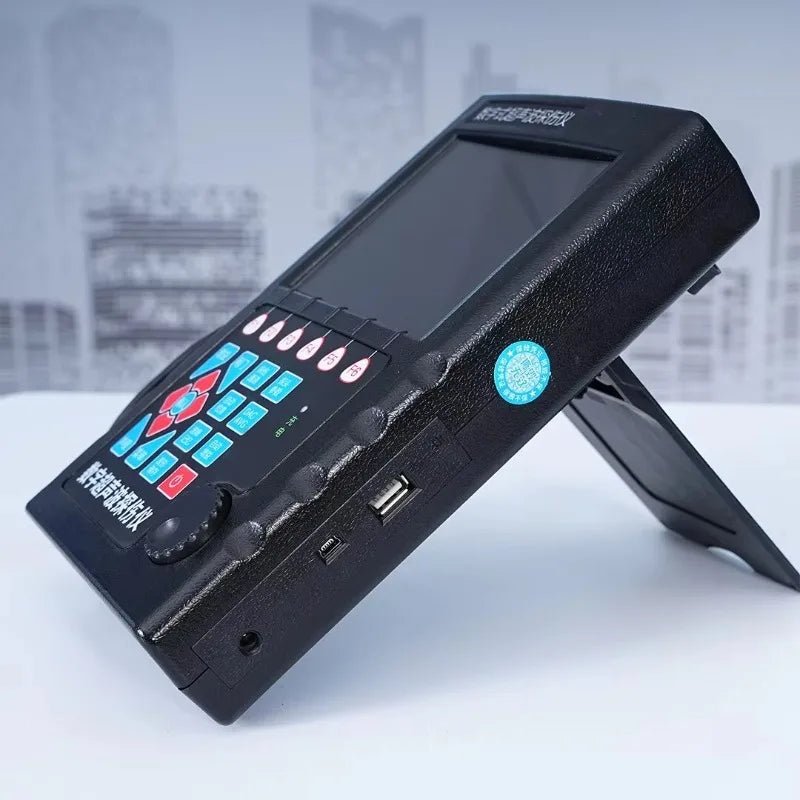

• USB data storage and export support

• BMP image and video export capability

• PC communication software for analysis and report printing

• 260,000-color ultra-bright industrial display

• Rechargeable lithium battery with 8–10 hours runtime

• IP66 waterproof and dustproof ABS housing

• Strong anti-interference performance for industrial environments

• Suitable for Oil & Gas, fabrication, steel structures, pipelines, and industrial NDT inspection

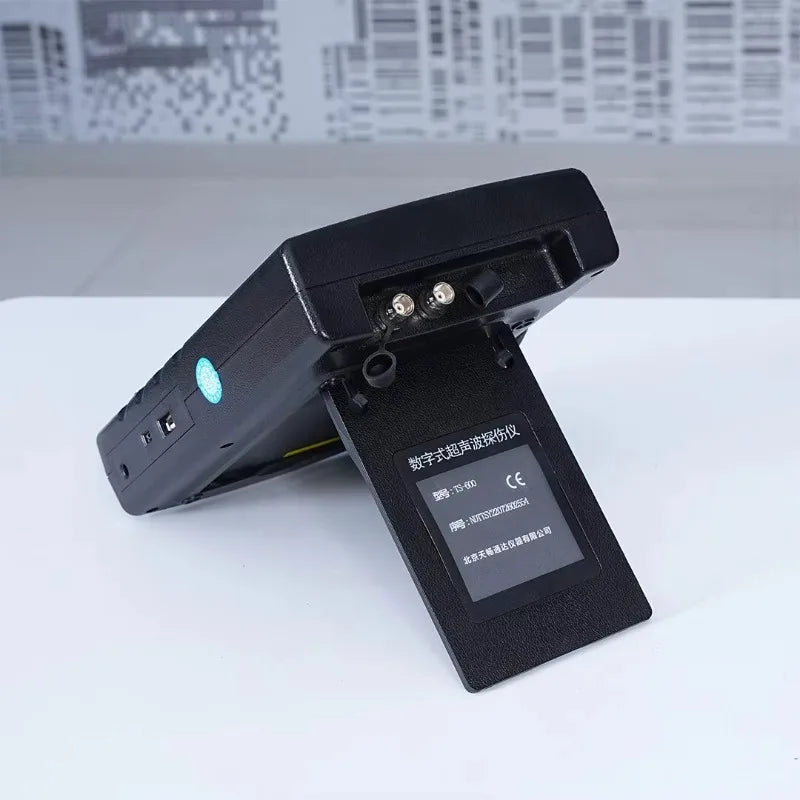

• Model: TS-600

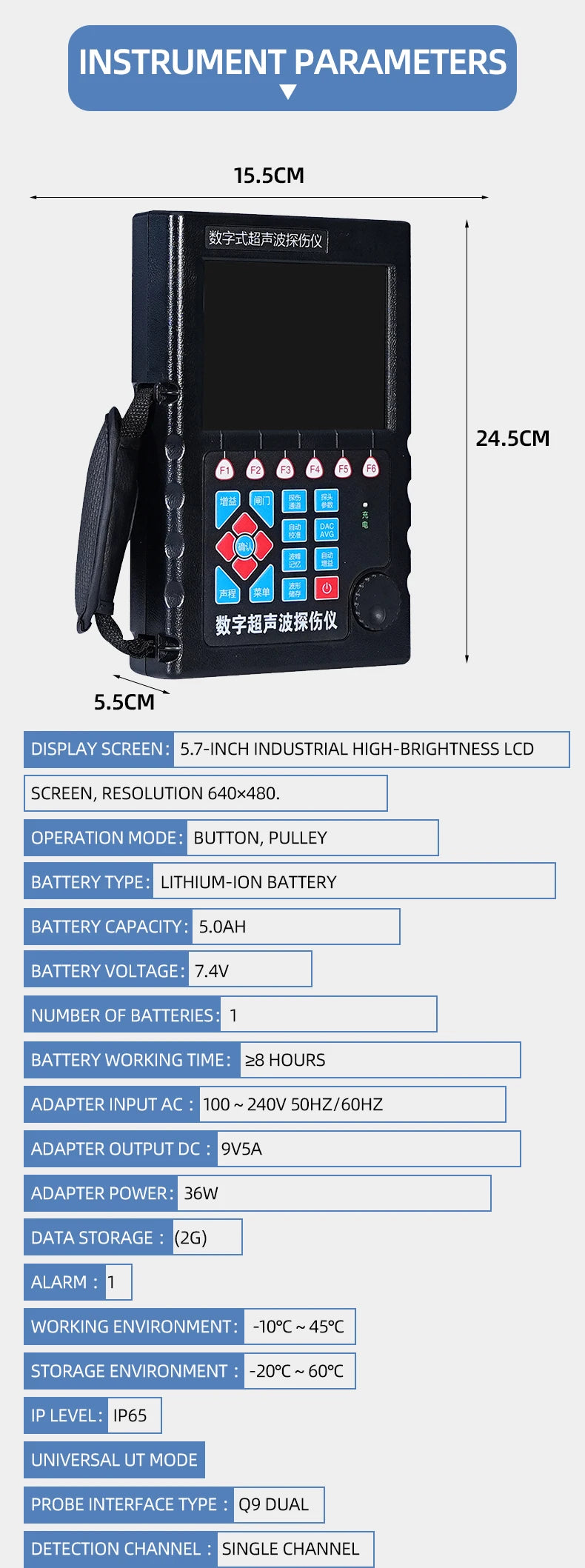

• Compact size: 15.5 × 24.5 × 5.5 cm

• Weight: 1.2 kg

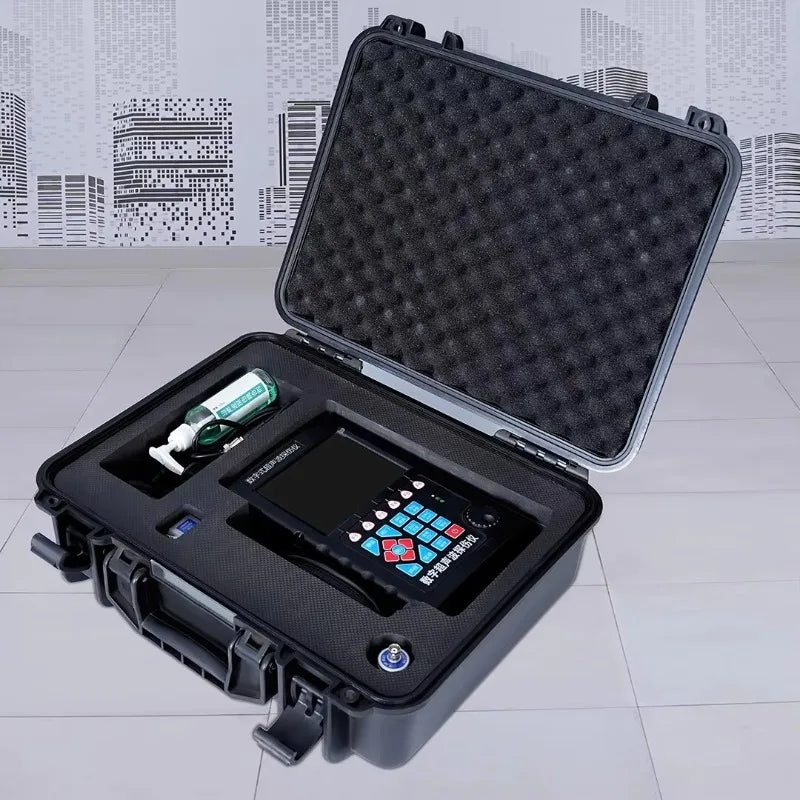

Manufactured with rugged IP66-rated ABS industrial housing and professional ultrasonic inspection electronics for demanding field environments. Keep probes and connectors clean after use and store the instrument in a dry protective case. Avoid impacts, excessive moisture, and improper probe handling to maintain inspection accuracy and equipment lifespan.
