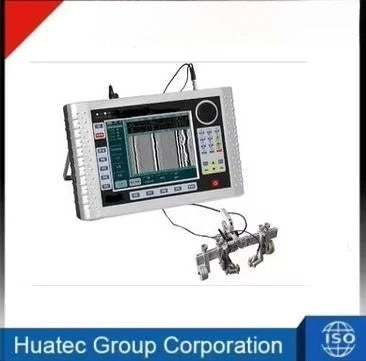

Industrial PAUT Ultrasonic Flaw Detector

• TOFD ultrasonic flaw detector for industrial non-destructive testing applications.
• Supports A-scan, B-scan, D-scan, P-scan, and TOFD imaging modes.
• One-button TOFD scanning for faster setup and simplified operation.
• Designed for defect detection, sizing, positioning, contour analysis, and offline data review.
• 6.5-inch true-color high-resolution LCD touchscreen with 640 × 480 display.
• Touchscreen, front panel keypad, shuttle control, keyboard, mouse, and external display compatibility.
• Negative square wave pulse with adjustable pulse width from 30–1000ns.
• Repetition frequency adjustable from 100–1000Hz.
• Sampling frequency: 100MHz.
• Frequency bandwidth options: 0.5–5MHz, 2–10MHz, 4–15MHz, and 0.5–20MHz broadband.
• Sound velocity range: 300–20000m/s.
• Sound range: 5–200μs.
• Delay range: 0–200μs.
• Encoder trigger with maximum resolution of 0.25mm.
• Time-triggered mode with maximum resolution of 5ms.
• Complete raw data recording with scan playback capability.
• Offline analysis for A-scan waveform recovery, defect sizing, contour review, thickness data, and amplitude statistics.
• Data reports can include check sheets, A-scan waveforms, B-scan images, D-scan images, and TOFD images.
• LAN, VGA, and USB2.0 output interfaces.
• Compatible with USB devices, keyboard, mouse, printer, PC, external SVGA display, and projector.
• 1GB running memory and 2GB available flash storage.
• Built-in 6600mAh lithium-ion battery with up to approximately 6 hours of working time.
• External 19V adapter support.
• Compact portable design: 257mm × 168mm × 64mm with battery.
• Weight: 2.25kg including battery.
• Supplied in a high-quality industrial travel case.
• 12-month warranty listed by supplier.

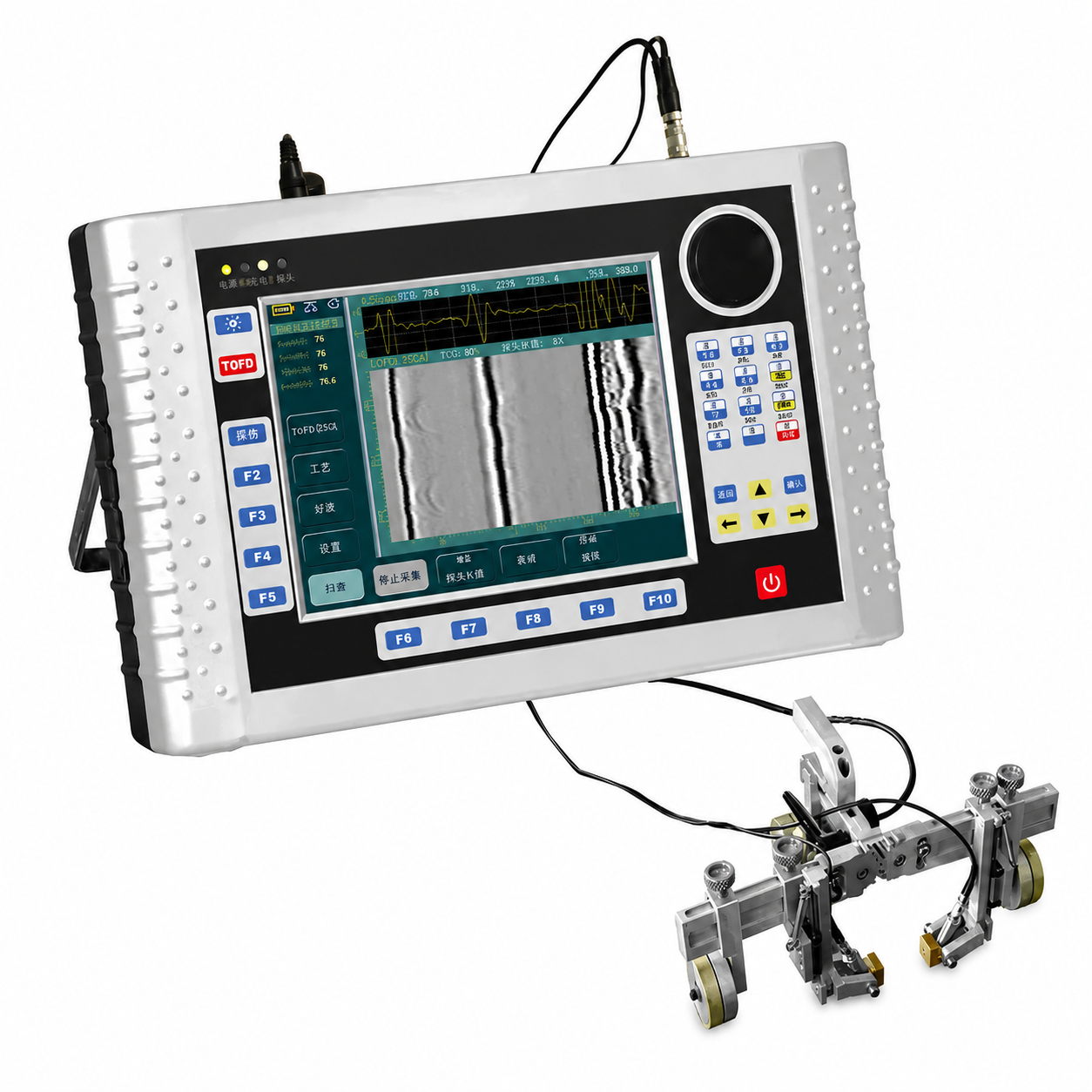

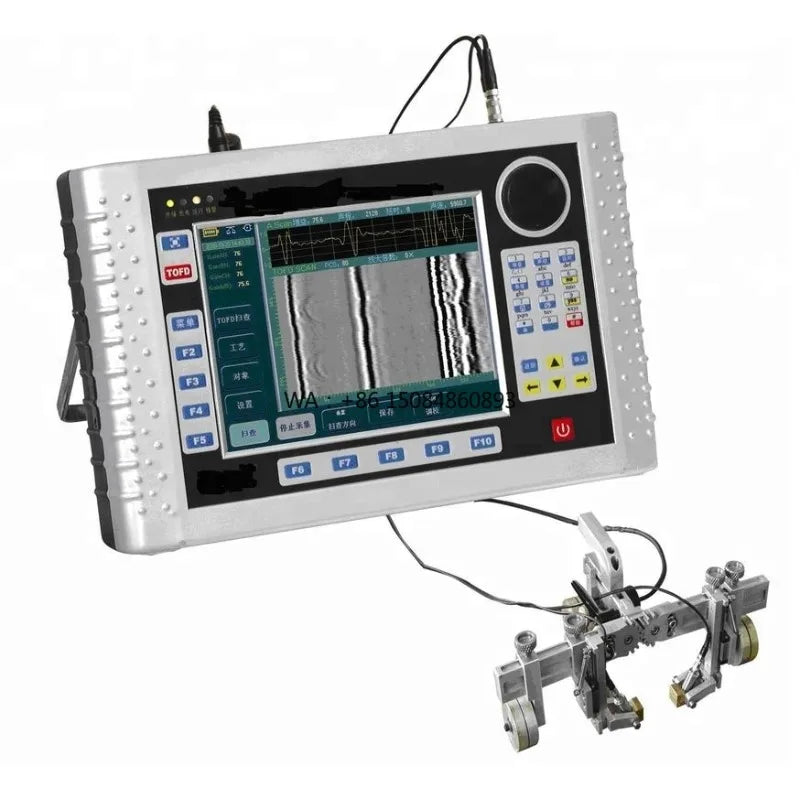

Portable electronic ultrasonic flaw detector with color LCD touchscreen, control keypad, internal battery, and industrial interface ports.

Store and transport the instrument in the supplied industrial travel case.

Keep the touchscreen, ports, connectors, probes, encoder, and cables clean, dry, and protected from impact.

Avoid exposure to excessive moisture, dust, corrosive chemicals, vibration, and extreme temperatures during storage or operation.

Inspect transducers, probes, cables, encoder connections, and power adapters before each inspection.

Do not operate with damaged cables, cracked connectors, or compromised probes.

Charge and maintain the lithium-ion battery according to site procedures and battery safety requirements.

Back up inspection data regularly through USB, LAN, or PC connection.

Calibrate and verify the system with appropriate reference blocks and inspection procedures before field use.

Use only trained NDT personnel for setup, scanning, interpretation, and reporting.
