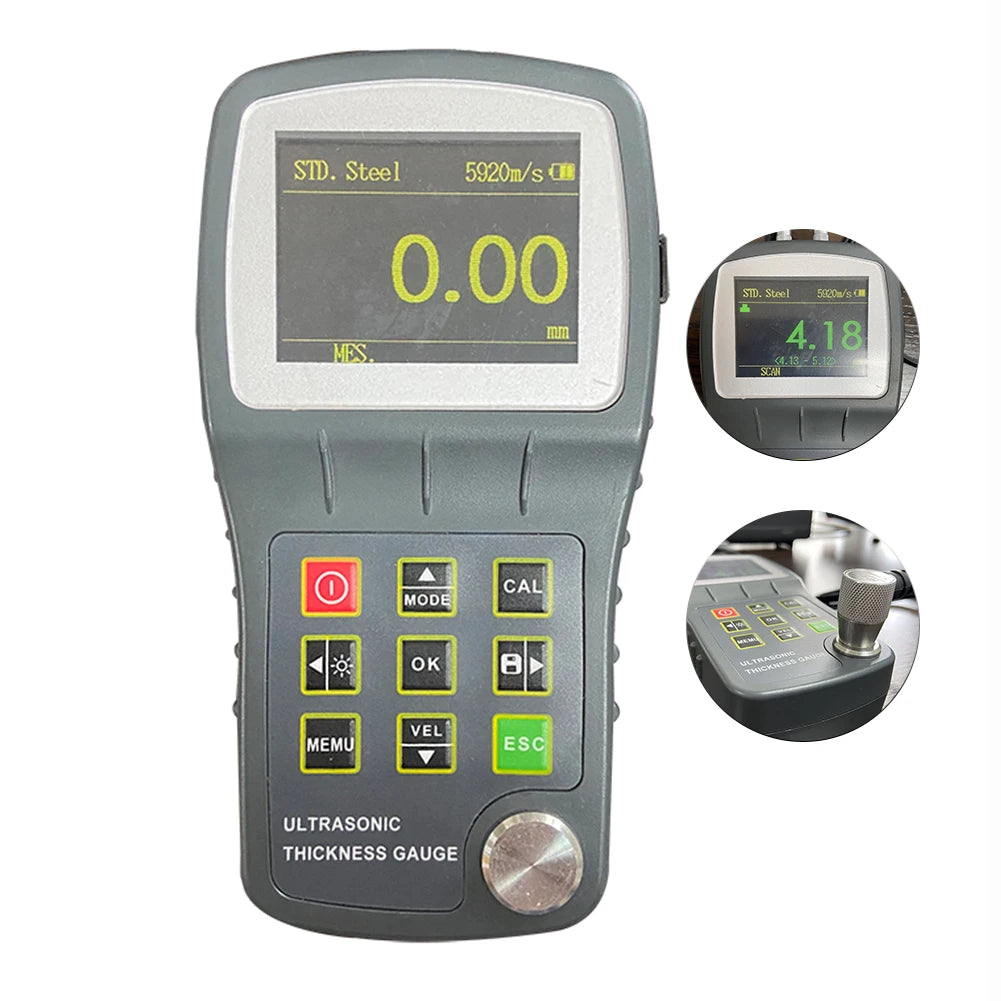

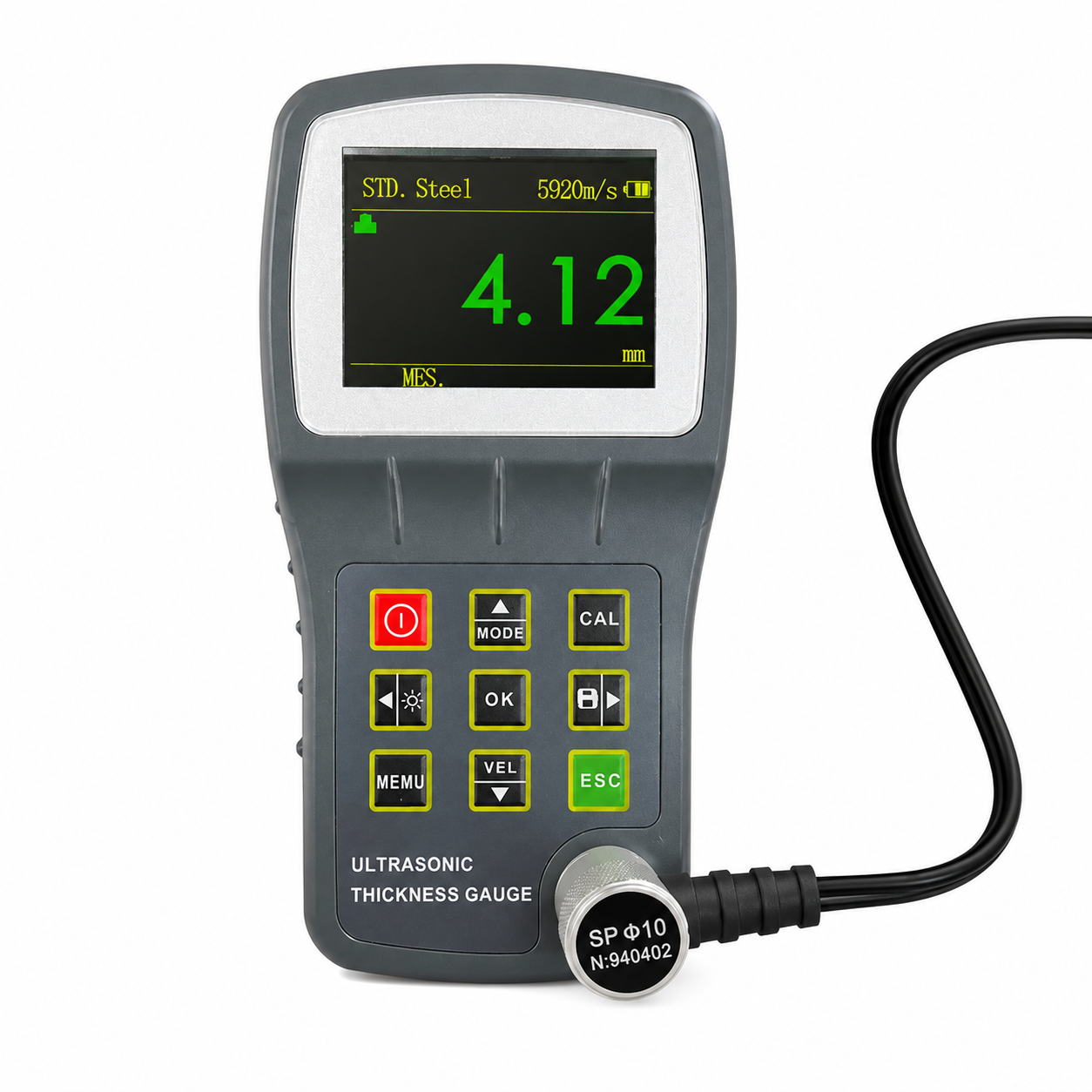

Portable Ultrasonic Thickness Gauge – Through-Coating Corrosion & Wall Thickness Tester

• Non-destructive ultrasonic thickness measurement for metals and industrial materials.

•
  Measurement range from 0.75 mm to 300 mm.

•
  High accuracy of ±(0.5%H + 0.01 mm).

•
  Available with Pulse-Echo and Echo-Echo (through-coating) technology.

•
  Through-coating measurement capability from 2 mm to 150 mm on compatible models.

•
  Adjustable sound velocity from 1000 to 9999 m/s for multiple material types.

•
  2.4-inch high-contrast color LCD display (320 × 240 resolution).

•
  Data storage via TF card with export functionality.

•
  USB communication for data transfer and reporting.

•
  Optional probes for high-temperature, thin-wall, coarse-grain, and small-diameter applications.

•
  Automatic sound path correction and probe status indication.

•
  IP65-rated enclosure for industrial environments.

•
  Compact and lightweight portable design.

Housing constructed from durable industrial-grade ABS plastic.

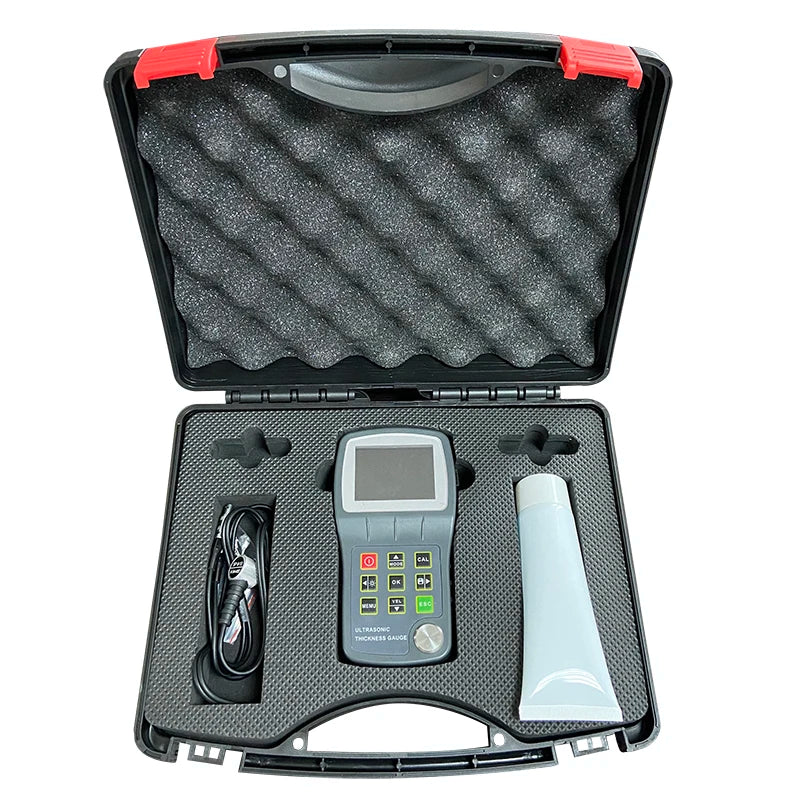

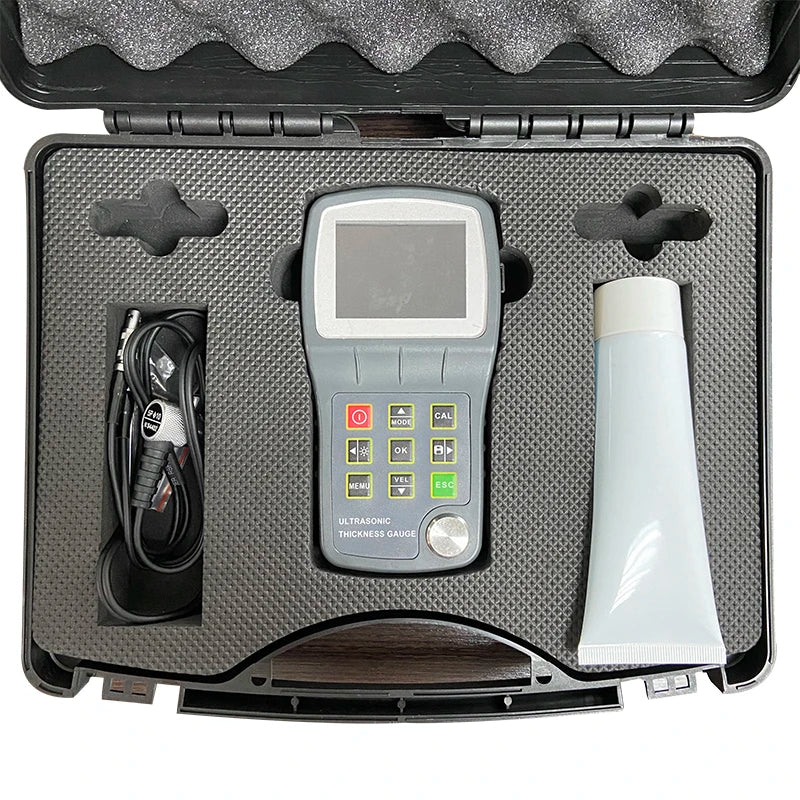

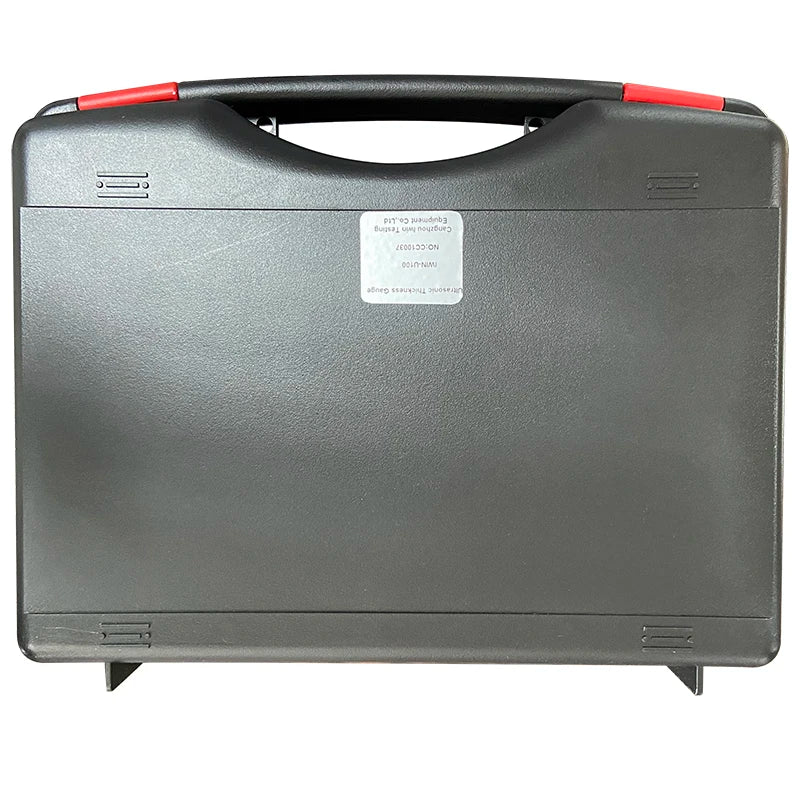

Store in the supplied protective carrying case when not in use.

Clean probe surfaces after each inspection to maintain measurement accuracy.

Use approved ultrasonic couplant for optimal signal transmission.

Avoid impact, excessive moisture exposure beyond rated limits, and prolonged direct sunlight.

Remove batteries during long-term storage.
