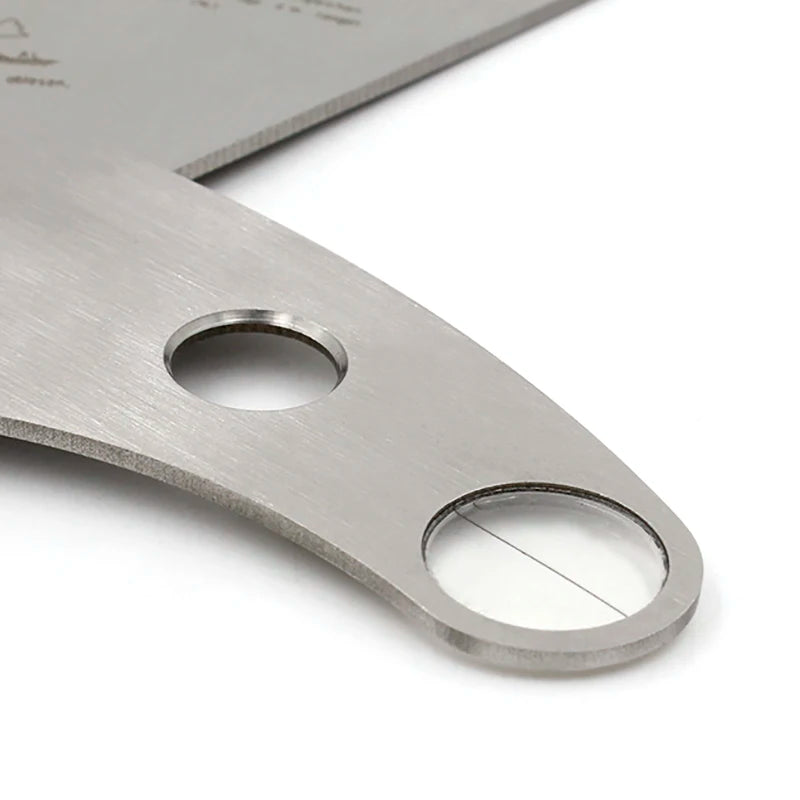

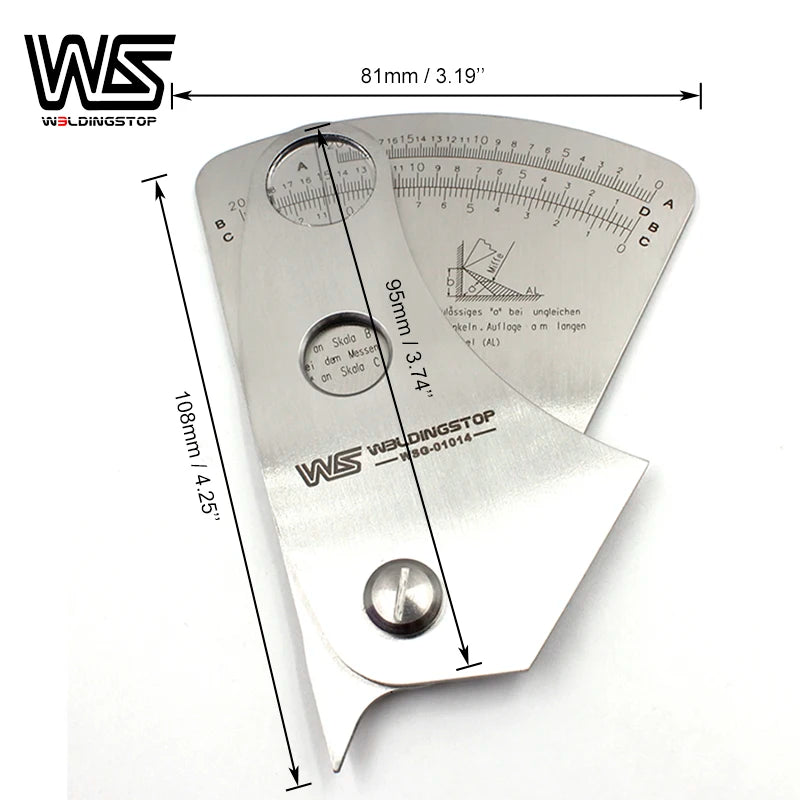

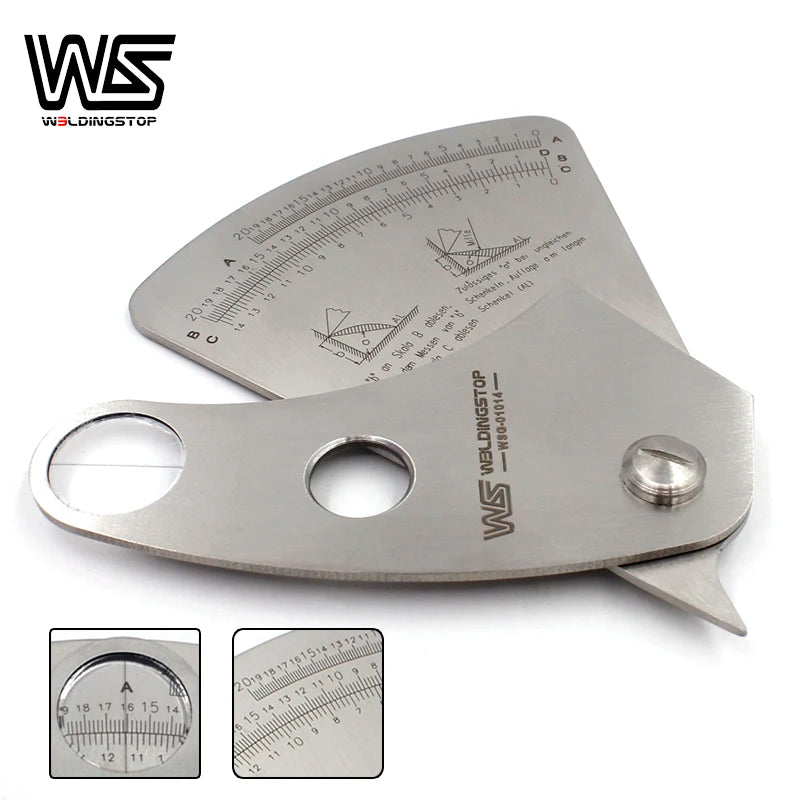

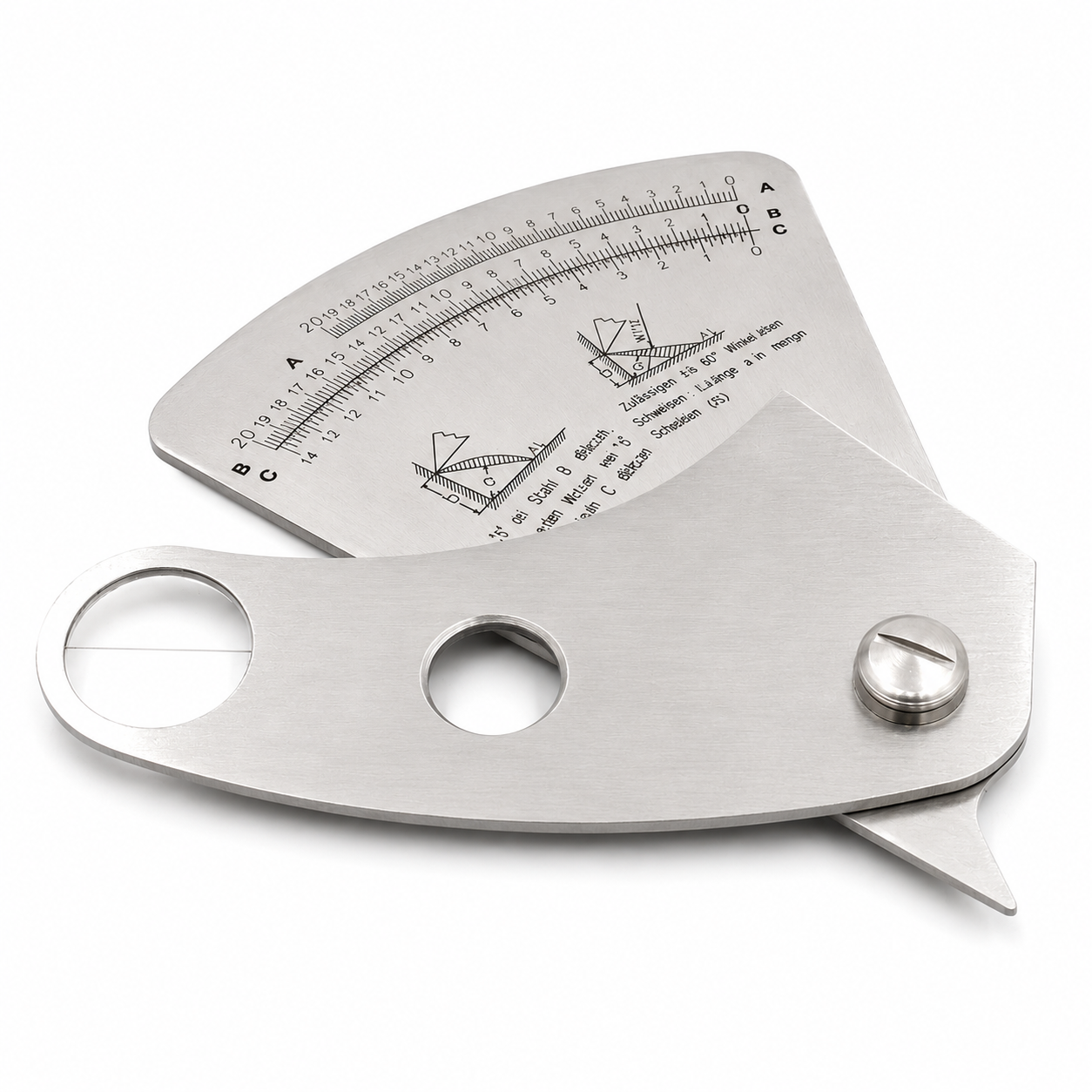

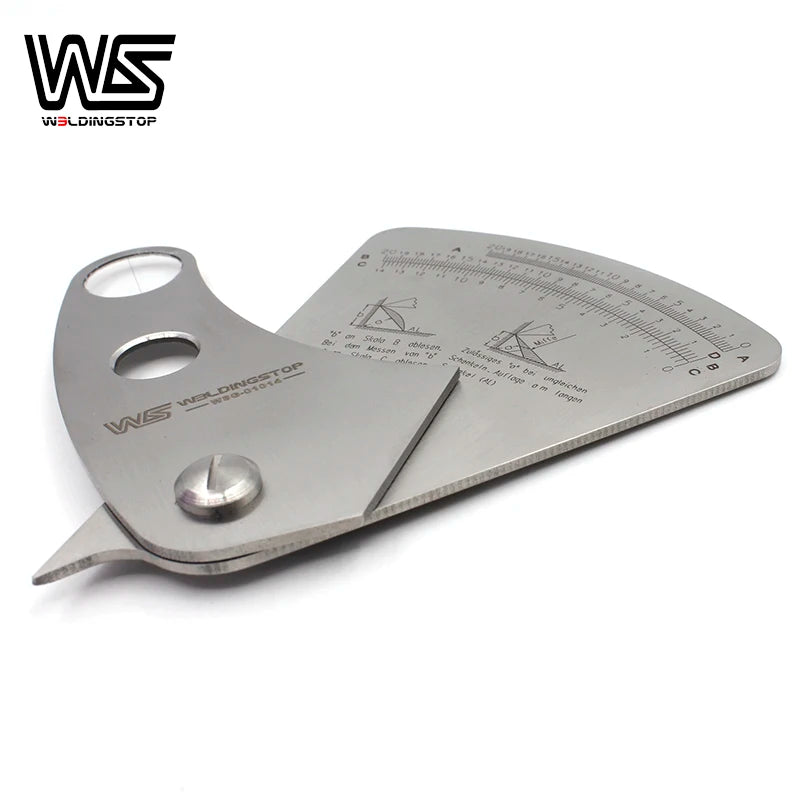

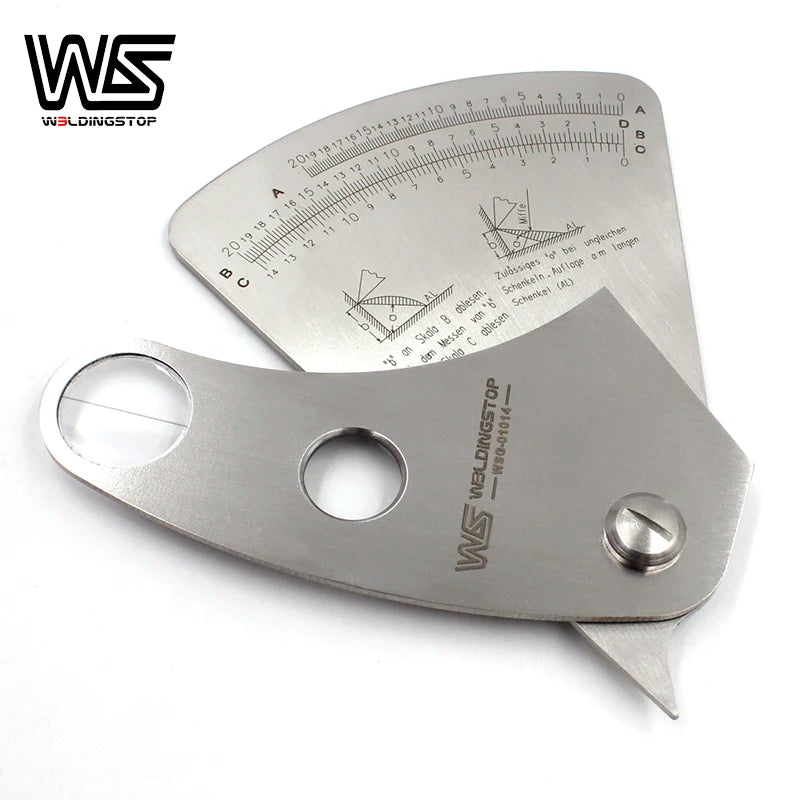

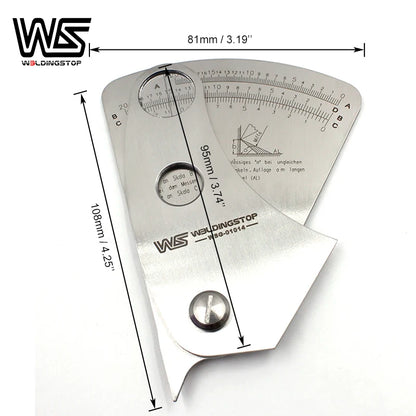

WS Fan Shape Welding Gauge – Precision Weld Inspection Tool

WS Fan Shape Welding Gauge – Precision Weld Inspection Tool

$33.95 USD
$40.95 USD $33.95 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

49 in stock

Default Title
Professional Fan Shape Welding Gauge designed for accurate measurement of weld angle, fillet size, weld height, and weld width in industrial inspection applications. Built for welders, inspectors, and QA/QC professionals working in Oil & Gas, pressure vessels, piping, and fabrication environments.

Product features

• Measures weld angle, height, width, and fillet size
• Fan-shaped design for versatile weld inspection applications
• Measuring range from 0–22mm
• Precision laser-engraved scales for easy readability
• Durable stainless steel construction
• Corrosion-resistant and wear-resistant finish
• 360° adjustable locking screw for flexible positioning
• Smooth burr-free workmanship for accurate measurements

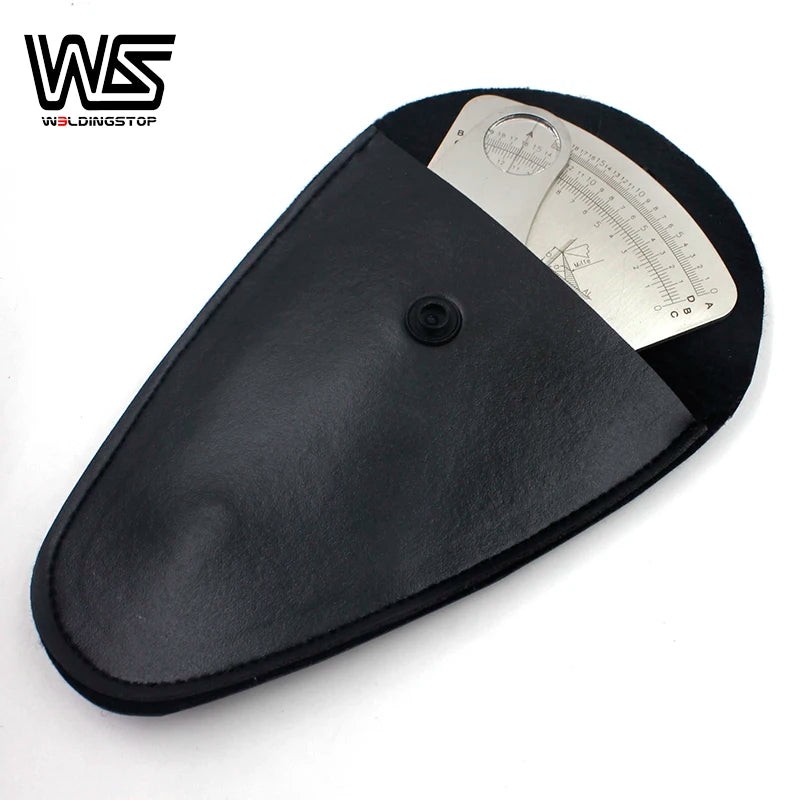

• Compact portable design with protective PU storage pouch
• Ideal for welding inspection, fabrication, boilers, and pressure vessels

Materials and care


Manufactured from high-quality stainless steel for durability, corrosion resistance, and long-term measurement accuracy. Clean with a dry cloth after use and store in the included PU pouch to protect the engraved scales and precision surfaces.
